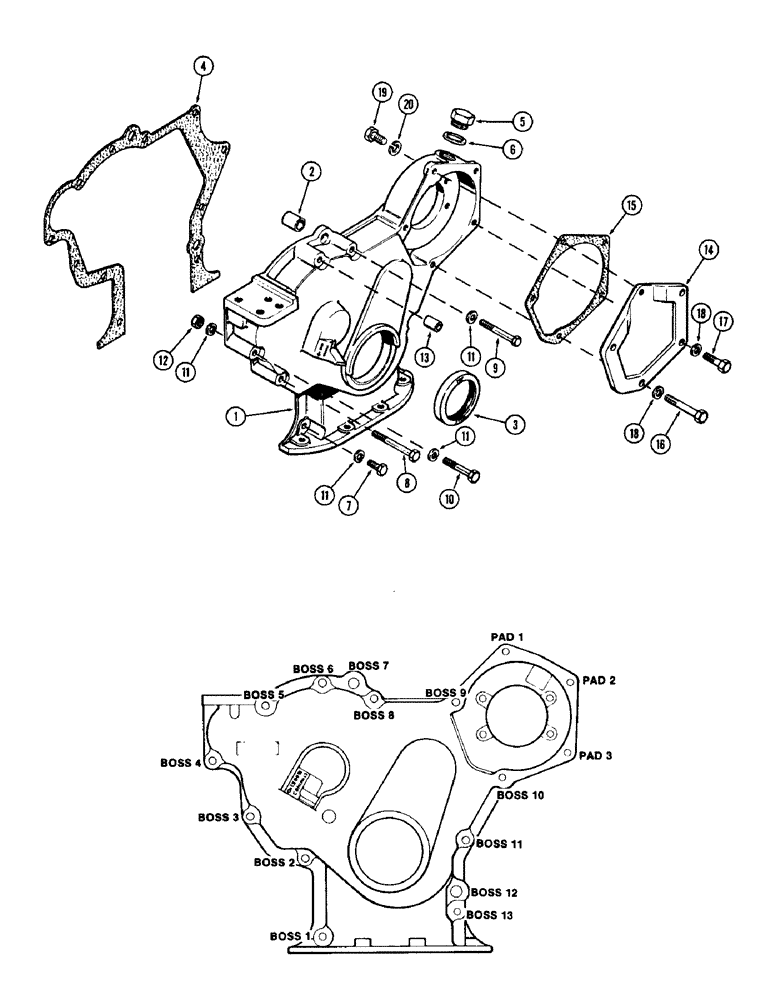

Запчасти Case 880B (030) - TIMING GEAR COVER, 336BDT DIESEL ENGINE (01) - ENGINE

1

A58609

COVER

ASSEMBLY - timing gear, Includes: Ref. 2

1шт.

2

A58611

PIN

- dowel, cover

2шт.

3

A62049

OIL SEAL

- oil, crankshaft, front, 2-5/8" x 3-5/8" x 1/2" (66.68 x 92.08 x 12.70 MM)

1шт.

4

A58612

GASKET

-, Serial Range: cover-block

1шт.

5

A21140

PLUG

- timing window

1шт.

6

A58613

SEALING WASHER

GASKET - plug

1шт.

7

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

(Boss 1, 2, 11 and 13) Hex, 3/8"-16 x 1", G5, Full Thd

4шт.

8

113-257

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

(Boss 3 and 8) Hex, 3/8"-16 x 2 1/2", G5

2шт.

9

113-203

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5

(Boss 6) Hex, 3/8"-16 x 3 1/2", G5

1шт.

10

113-247

BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 5

(Boss 4 and 5) Hex, 3/8"-16 x 3 1/4", G5

2шт.

11

92-6

LOCK WASHER,3/8"

9шт.

12

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, (Boss 4 and 5) 3/8"-16, G5

2шт.

13

A19774

BUSHING

SPACER - prybar point, 3/8" x 1" (9.53 x 25.40 MM)

1шт.

14

A61053

COVER

- fuel pump gear

1шт.

15

A58615

GASKET

- cover

1шт.

16

113-203

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5

(Boss 9 and 10) Hex, 3/8"-16 x 3 1/2", G5

2шт.

17

A151921

BOLT

- 3/8" x 1-3/4" NC hex, drilled (For pump seal wire) (Pad 2 and 3)

2шт.

18

92-6

LOCK WASHER,3/8"

4шт.

19

113-113

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

(Pad 1) Hex, 5/16"-18 x 7/8", G5, Full Thd

1шт.

20

92-5

LOCK WASHER,5/16"

1шт.
