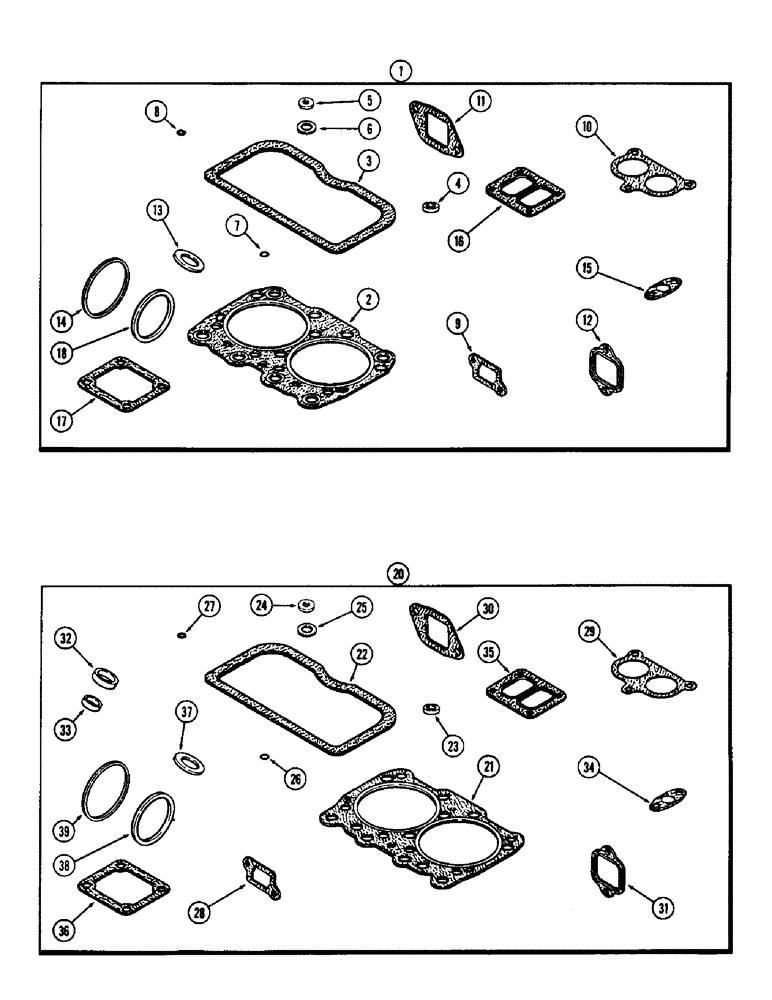

Запчасти Case 880B (028) - ENG. GASKET KITS, 336BDT DIESEL ENG. (01) - ENGINE

1

A46367

KIT

GASKET KIT - valve grind, Includes: Ref. 2 - 17

1шт.

For complete engine overhaul orded 1 - A46367, 1 - A44075 and 1 - A42221.

1шт.

2

A138397

CYLINDER HEAD GASKET

- cylinder head

2шт.

3

A65734

CYLINDER HEAD GASKET

- cylinder head cover

2шт.

4

A58637

MANIFOLD GASKET

- water manifold

2шт.

5

G46907

GASKET

- thermostat housing

1шт.

6

A58662

MANIFOLD GASKET

- intake manifold

4шт.

7

A58895

GASKET

- exhaust manifold (Metal faced) (336BDT)

4шт.

7

A58666

MANIFOLD GASKET

- exhaust manifold (Asbestos faced) (336BD) (Not used)

4шт.

8

A41403

WASHER,9.55mm ID x 14.18mm OD x 3.38mm Thk

- injector nozzle body

4шт.

9

A41402

SEAL,7.89mm ID x 9.74mm OD x 2.87mm Thk

- injector nozzle carbon stop

4шт.

10

A58635

GASKET,17.27mm ID x 32mm OD x 6.6mm Thk

- breather tube, lower

2шт.

11

A34133

GASKET

- breather tube, upper

2шт.

12

A23684

GASKET

GASKET - cover studs

4шт.

13

A27880

O-RING,0.07" Thk x 0.18" ID, -8, Cl 5, 75 Duro

"O" RING - rocker shaft oil tube

2шт.

14

A58628

SEAL,8mm ID x 13.77mm OD x 2.16mm Thk

- valve stem

8шт.

15

A58892

GASKET,1.59mm Thk

- turbocharger oil drain tube

1шт.

16

A58910

GASKET

- turbocharger air intake elbow

1шт.

17

A58899

GASKET,0.45mm Thk

- turbocharger

2шт.

20

A44086

GASKET

KIT - valve grind (See note), used with 5.092 inch to 5.097 inch fire dam diameter sleeve, Includes: Ref. 21 - 36

1шт.

For complete engine overhaul order 1 - A44086, 1 - A44075 and 1 - A42221.

1шт.

21

A142481

GASKET

- cylinder head, valve grind kit used with 5.092 inch to 5.097 inch fire dam diameter sleeve

2шт.

22

A65734

CYLINDER HEAD GASKET

- cylinder head cover, valve grind kit used with 5.092 inch to 5.097 inch fire dam diameter sleeve

2шт.

23

A58637

MANIFOLD GASKET

- water manifold, valve grind kit used with 5.092 inch to 5.097 inch fire dam diameter sleeve

2шт.

24

G46907

GASKET

- thermostat housing, valve grind kit used with 5.092 inch to 5.097 inch fire dam diameter sleeve

1шт.

25

A58662

MANIFOLD GASKET

- intake manifold, valve grind kit used with 5.092 inch to 5.097 inch fire dam diameter sleeve

4шт.

26

A58895

GASKET

- exhaust manifold (Metal faced) (336BDT) (Not used), valve grind kit used with 5.092 inch to 5.097 inch fire dam diameter sleeve

4шт.

26

A58666

MANIFOLD GASKET

- exhaust manifold (Asbestos faced) (336BD), valve grind kit used with 5.092 inch to 5.097 inch fire dam diameter sleeve

4шт.

27

A41403

WASHER,9.55mm ID x 14.18mm OD x 3.38mm Thk

- injector nozzle body, valve grind kit used with 5.092 inch to 5.097 inch fire dam diameter sleeve

4шт.

28

A41402

SEAL,7.89mm ID x 9.74mm OD x 2.87mm Thk

- injector nozzle carbon stop, valve grind kit used with 5.092 inch to 5.097 inch fire dam diameter sleeve

4шт.

29

A58635

GASKET,17.27mm ID x 32mm OD x 6.6mm Thk

- breather tube, lower, valve grind kit used with 5.092 inch to 5.097 inch fire dam diameter sleeve

2шт.

30

A34133

GASKET

- breather tube, upper, valve grind kit used with 5.092 inch to 5.097 inch fire dam diameter sleeve

2шт.

31

A23684

GASKET

GASKET - cover studs, valve grind kit used with 5.092 inch to 5.097 inch fire dam diameter sleeve

4шт.

32

A27880

O-RING,0.07" Thk x 0.18" ID, -8, Cl 5, 75 Duro

"O" RING - rocker shaft oil tube, valve grind kit used with 5.092 inch to 5.097 inch fire dam diameter sleeve

2шт.

33

A58628

SEAL,8mm ID x 13.77mm OD x 2.16mm Thk

- stem, valve grind kit used with 5.092 inch to 5.097 inch fire dam diameter sleeve

8шт.

34

A58892

GASKET,1.59mm Thk

- turbocharger oil drain tube (Not used), valve grind kit used with 5.092 inch to 5.097 inch fire dam diameter sleeve

1шт.

35

A58910

GASKET

- turbocharger air intake elbow (Not used), valve grind kit used with 5.092 inch to 5.097 inch fire dam diameter sleeve

1шт.

36

A58899

GASKET,0.45mm Thk

- turbocharger (Not used), valve grind kit used with 5.092 inch to 5.097 inch fire dam diameter sleeve

2шт.
