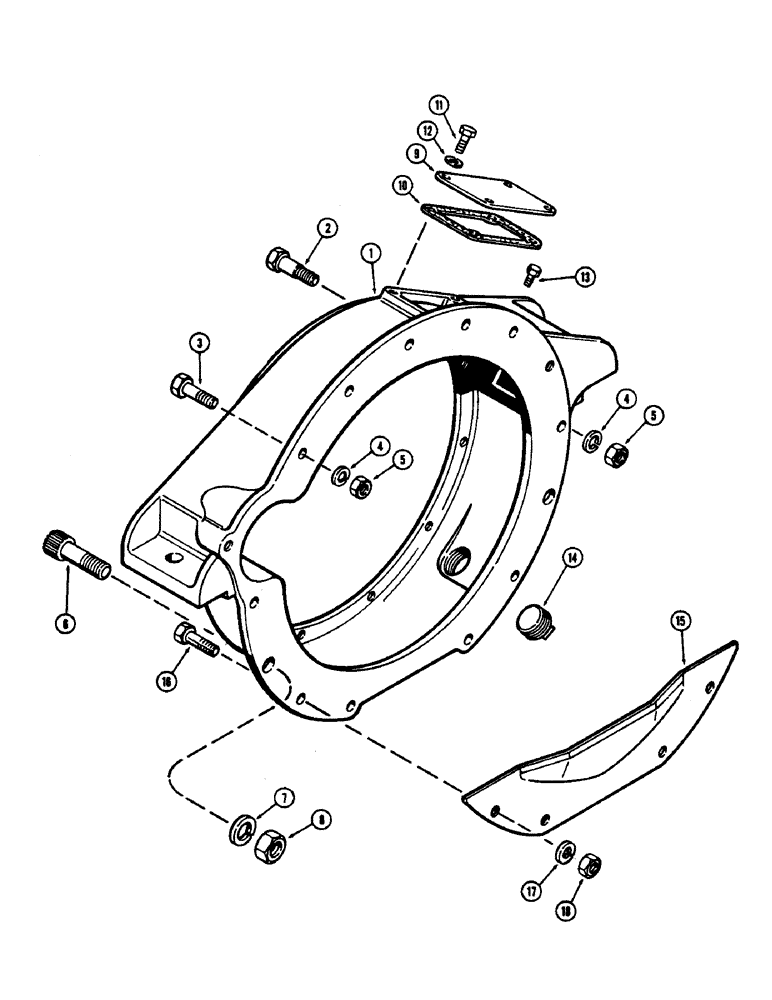

Запчасти Case 880B (022) - FLYWHEEL HOUSING, 336BDT DIESEL ENGINE (01) - ENGINE

1

A153190

HOUSING

- flywheel (Replaces A21040)

1шт.

2

A149764

STEP BOLT

BOLT - dowel, 1/2" x 1-3/8" NC hex

1шт.

2

A149765

STEP BOLT

BOLT - dowel, 1/2" x 2-13/16" NC hex

1шт.

3

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

3шт.

3

113-412

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

1шт.

3

80087972

BOLT,Hex, 1/2" - 13 x 2 1/2", Gr 5

- 1/2" x 2-1/2" NC hex (Grade 5)

2шт.

4

92-8

LOCK WASHER,1/2"

8шт.

5

129-105

NUT,Hex, 1/2" - 13, Gr 5

4шт.

6

166-138

12 PT SCREW,Flg, 3/4" - 10 x 3", Gr 8

- 3/4" x 3" NC, 12 point head

2шт.

7

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.

8

129-137

NUT,3/4"-10, G5

2шт.

9

A22584

COVER

PLATE - hand hole cover

1шт.

10

A22585

GASKET

- plate

1шт.

11

113-118

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

4шт.

12

91-5

WASHER - lock, 5/16"

4шт.

13

113-1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

2шт.

14

221-17

DRAIN PLUG,Sq Hd, 1 1/4"-11 1/2 NPTF

PLUG - 1-1/4" PT square head

1шт.

15

A58931

GUARD

SHIELD - dust

1шт.

16

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

4шт.

17

92-8

LOCK WASHER,1/2"

4шт.

18

129-105

NUT,Hex, 1/2" - 13, Gr 5

4шт.
