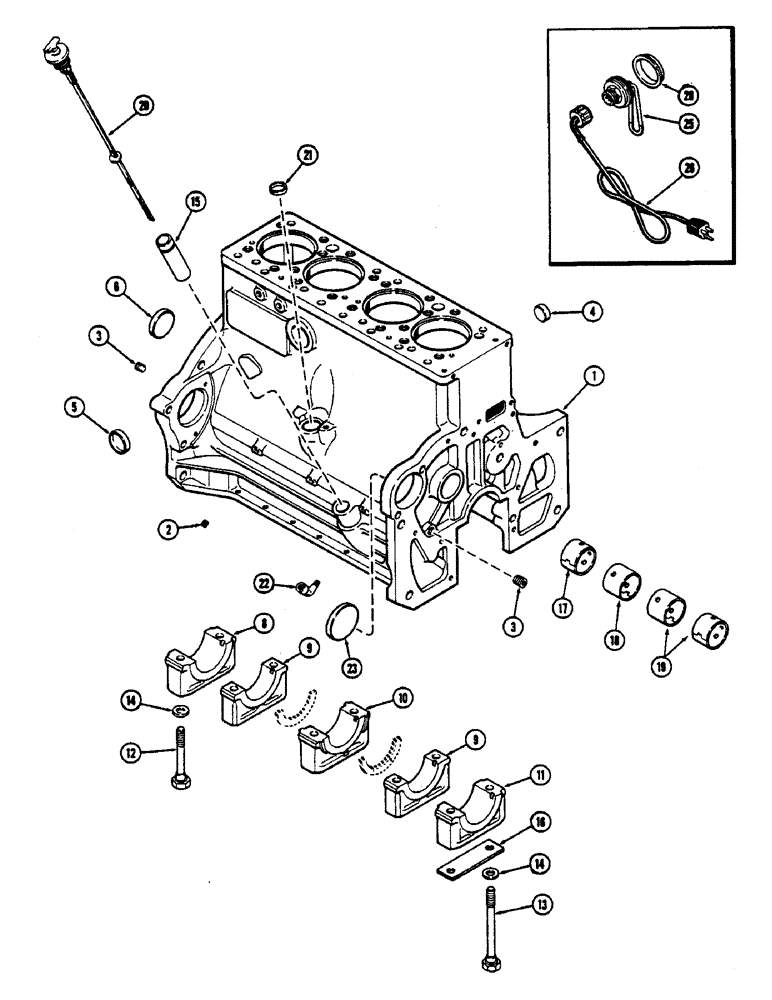

Запчасти Case 880B (018) - CYLINDER BLOCK, 336BDT DIESEL ENGINE (01) - ENGINE

A151749

SKELETON ENGINE

BLOCK ASSEMBLY - short (Casting #A58502) (Includes stripped block, piston assembly, camshaft and bushings, connecting rods and bearings, crankshaft and bearings and timing gears), Includes: Ref. 1 - 16

1шт.

1

A151757

BLOCK ASSEMBLY - stripped (Casting #A58502), Includes: Ref. 2 - 16

1шт.

2

221-1849

PLUG

- oil gallery, 1/8" PT hex socket head

3шт.

3

221-843

PLUG,Hex Soc, 3/8"-18

- oil gallery, 3/8" PT hex socket head

3шт.

4

A58568

PLUG,Cup, 1 3/8", Stainless

- water gallery, 1-3/8" cup (34.93 MM)

2шт.

5

A58569

PLUG,Cup, 2", Stainless

- heater hole, 2" cup (50.80 MM)

1шт.

6

A24361

PLUG

- camshaft hole, 2-3/8" cup (60.33 MM)

1шт.

8

A58562

CAP

- main bearing, wide

1шт.

9

A58563

CAP

- main bearing, narrow

2шт.

10

A58564

CAP

- main bearing, thrust

1шт.

11

A58561

CAP

- main bearing, front

1шт.

12

A66948

STEP BOLT

BOLT - 5/8" x 5" NC hex special

8шт.

13

A66949

STEP BOLT

BOLT - 5/8 x 7-1/4" NC hex special

2шт.

14

A58629

BEARING WASHER,16.66mm ID x 25.4mm OD x 3.04mm Thk

WASHER - 21/32" x 1" x 1/8" (16.66 x 25.40 x 3.04 MM)

10шт.

15

A34540

TUBE

- oil filler and dipstick

1шт.

16

A58859

SHIM,.005" Thk

Brg. cap to oil pump .005" Thk

1шт.

17

A21018

BUSHING,57.11mm ID x 60.33mm OD x 42.32mm L

- camshaft, 1-5/32" wide (29.37 MM)

1шт.

18

A21019

BUSHING,57.05mm ID x 60.33mm OD x 36.63mm L

- camshaft intermediate, 1-7/16" wide (36.51 MM)

2шт.

19

A23487

BUSHING,44.35mm ID x 60.3mm OD x 29.62mm L

- camshaft, rear, 1-21/32" wide (42.07 MM)

1шт.

20

A138330

DIPSTICK

- oil level

1шт.

21

41-1022

PLUG,Cup, 1 3/8"

- tachometer drive hole, 1-3/8" cup (34.93 MM)

1шт.

22

222-4048

ELBOW,90º, 5/8"-24 Fem x 3/8"-18 NPTF

- 90 degrees

1шт.

23

41-1052

PLUG,Cup, 3 1/4"

- auxiliary pump opening, 3-1/4" cup (82.55 MM)

1шт.

A155436

RESISTOR

HEATER ASSEMBLY - block, cylinder, Includes: Ref. 25 and 26

1шт.

25

NSS

NOT SOLD SEPARAT

ELEMENT - heater, cylinder block

1шт.

26

A44813

CABLE EXTENSION

CORD - 12" (304.80 MM), cylinder block heater

1шт.

A44006

SLEEVE

KIT - cylinder block heater

1шт.

28

NSS

NOT SOLD SEPARAT

SLEEVE - heater, 2-1/16" OD, cylinder block

1шт.

28

NSS

NOT SOLD SEPARAT

SLEEVE - heater, 2-1/8" OD, cylinder block

1шт.
