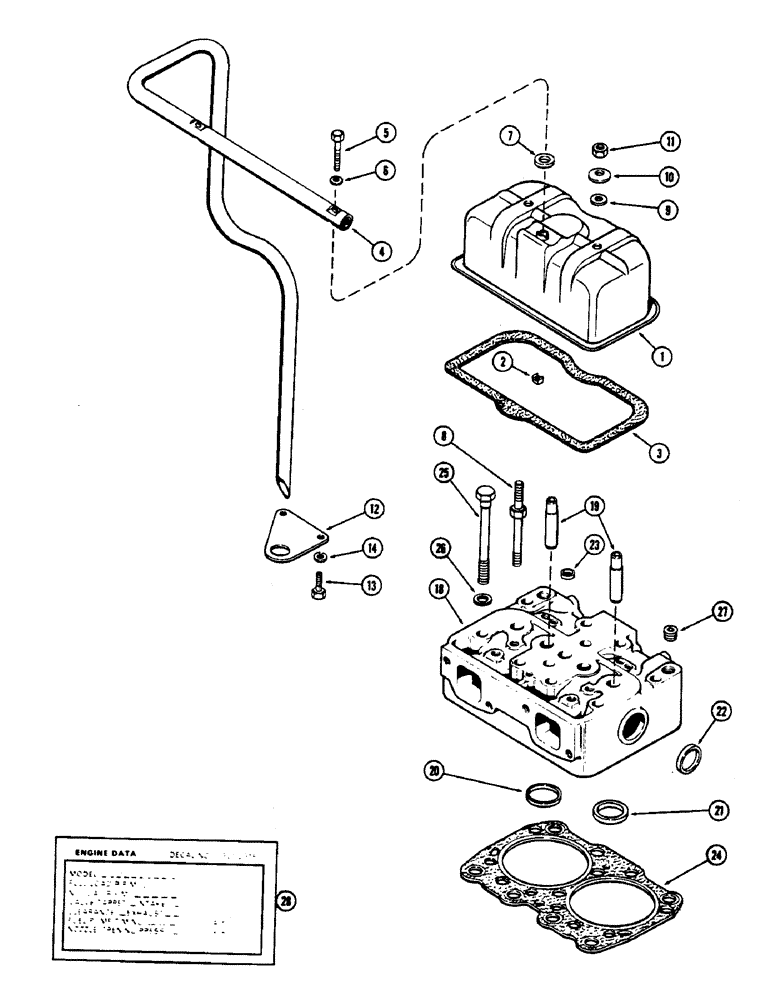

Запчасти Case 880B (012) - CYLINDER HEAD AND COVER, 336BDT DIESEL ENGINE (01) - ENGINE

1

A58929

COVER

COVER ASSEMBLY - cylinder head, Includes: Ref. 2

2шт.

2

131-114

SPRING NUT,Rtnr, 1/4" - 20, 0.25" High

NUT - 1/4" NC Tinnerman

1шт.

3

A65734

CYLINDER HEAD GASKET

GASKET - cylinder head cover

2шт.

4

A58733

TUBE

TUBE - breather

1шт.

5

113-12

BOLT,Hex, 1/4" - 20 x 2-1/2", Gr 5

SCREW - 1/4" x 2-1/4" NC hex head

2шт.

6

A34133

GASKET

GASKET - upper, 1/4" x 1/2" x 1/16" (6.35 x 12.70 x 1.59 MM)

2шт.

7

A58635

GASKET,17.27mm ID x 32mm OD x 6.6mm Thk

GASKET - lower, 11/16" x 1-1/4" x 1/4" (17.46 x 31.75 x 6.35 MM)

2шт.

8

A67121

STUD

STUD - 7/16" NC x 5-7/8"

4шт.

9

A23684

GASKET

GASKET - cover stud, 1/2" x 7/8" x 1/8" (12.70 x 22.23 x 3.18 MM)

4шт.

10

A23683

WASHER

WASHER - beveled, cover stud

4шт.

11

129-104

NUT,7/16"-14, G5

NUT, 7/16"-14, G5

4шт.

12

A58734

BRACKET

BRACKET - breather tube

1шт.

13

193-528

SCREW,SEMS, Hex Soc Hd, 3/8"-16 x 1 1/2"

BOLT - 3/8" x 1-1/2" NC hex

2шт.

14

195-25

WASHER,3/8"

WASHER - spacer, 7/16" x 13/16" x 1/16"

8шт.

18

A66709

HEAD

HEAD ASSEMBLY - cylinder, Includes: Ref. 19 - 23

2шт.

18

AR66686

REMAN-CYLINDER HEAD

Remanufactured Cylinder Head

2шт.

18

AC66686

CORE-CYLINDER HEAD

Return Number

2шт.

19

A41783

GUIDE

GUIDE - intake and exhuast valve

4шт.

20

A60557

INSERT

INSERT - intake valve

2шт.

21

A66192

INSERT

INSERT - exhaust valve

2шт.

22

A34124

PLUG,Cup, 1 5/8", Stainless

PLUG - 1-5/8" cup (41.28 MM)

2шт.

23

A58620

PLUG,Cup, 3/4", Stainless

PLUG - 3/4" cup (19.05 MM)

3шт.

24

REF

INSTRUCTION

GASKET - cylinder head, with fire rings (See Figure 28)

2шт.

25

A62732

STEP BOLT

BOLT - 5/8" x 5-5/8" NC hex

20шт.

25A SHOULD BE PART A76638

1шт.

26

A58629

BEARING WASHER,16.66mm ID x 25.4mm OD x 3.04mm Thk

WASHER - 5/8" x 1" x 3/16" (15.88 x 25.40 x 4.76 MM)

20шт.

27

221-843

PLUG,Hex Soc, 3/8"-18

PLUG - 3/8" PT hex socket head

4шт.

28

321-5476

SPARE PART DECAL - engine data

1шт.
