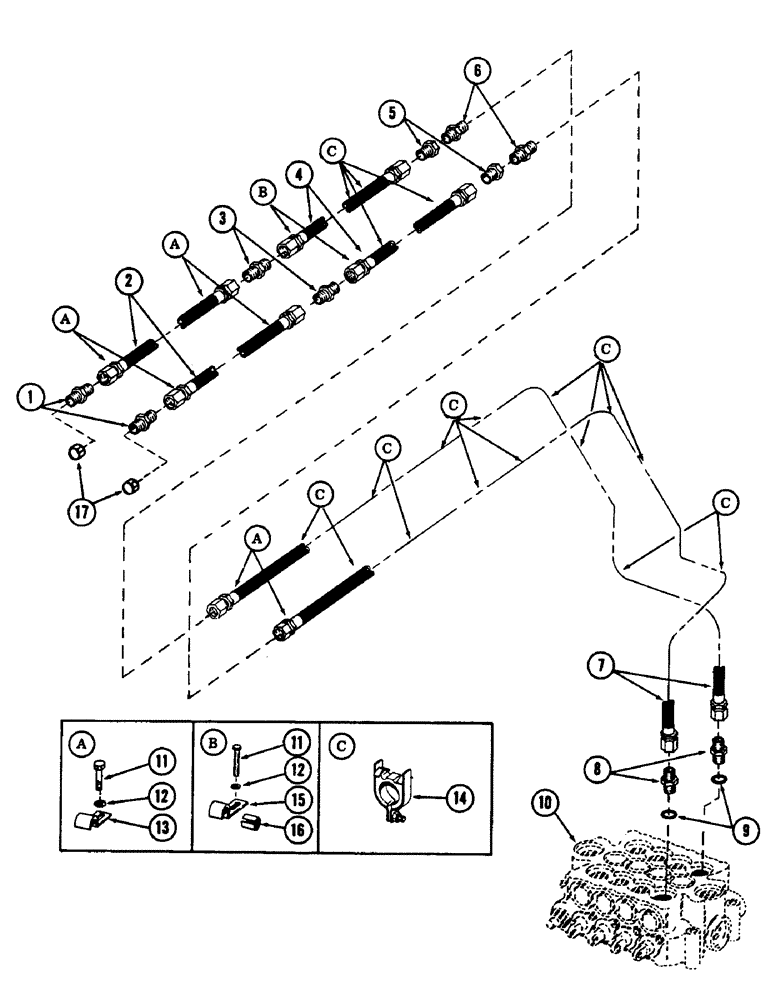

Запчасти Case 880B (260) - "E" BOOM WRIST-O-TWIST TUBING (07) - HYDRAULIC SYSTEM

1

218-735

UNION,3/4"-16, 37 Degree x 3/4"-16, 37 Degree

- (1/2" tube) 3/4" - 16 male x 3/4" - 16 male

2шт.

2

S11236

HOSE ASSY.

HOSE, high pressure - 3/8" ID x 26" long

2шт.

3

218-740

UNION

- (1/2" tube) - 3/4" - 16 male x 3/4" - 16 male

2шт.

4

S94824

HOSE

high pressure - 3/8" ID x 92-1/2" long

2шт.

5

218-789

REDUCER,37 Degree, 7/8"-14, Fem x 3/4"-16 Male

ADAPTER, reducing (5/8" x 1/2" reduction) - 3/4" - 16 male x 7/8" - 14 female

2шт.

6

218-736

UNION,7/8"-14, 37 Degree x 7/8"-14, 37 Degree

- (5/8" tube) - 7/8" - 14 male x 7/8" - 14 male

2шт.

7

S76576

HOSE

high pressure - 1/2" ID x 330" long

2шт.

8

S7985

CONNECTOR, ELEC

ADAPTER, flared - 1-5/16" - 12 male x 7/8" - 14 male, Includes: Ref. 9

2шт.

9

S6069

O-RING,1.171" ID x 0.116" Width

"O" RING

2шт.

10

REF

INSTRUCTION

VALVE, 4 spool main - (For breakdown, see Figure 200)

1шт.

11

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

1шт.

12

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

13

S77324

CLAMP

1шт.

14

S91602

CLAMP

1шт.

15

S77324

CLAMP

1шт.

16

S75792

RING

compression

1шт.

17

218-755

CAP,37 Degree, 3/4"-16

1/2" tube 37º, 3/4"-16

2шт.

A21571

HOSE

bulk - 3/8" ID x 25" requires 24" to make S11236. 90-1/2" to make S94824

1шт.

220-212

FITTING

COUPLING, reusable (Used to make S94824 or S11236 hose)

1шт.

A22797

HOSE, BULK - 1/2" ID x 50' requires 328" to make S76576 hose

1шт.

220-204

FITTING

COUPLING, reusable - used to make S76576 hose

1шт.
