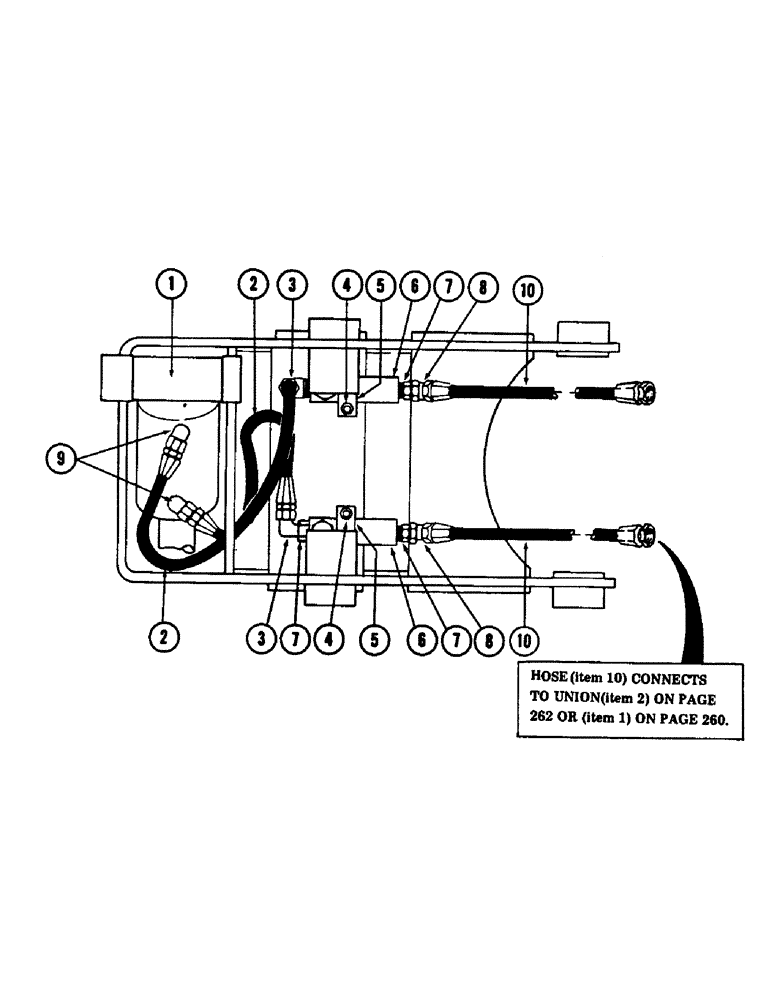

Запчасти Case 880B (258) - WRIST-O-TWIST TUBING (07) - HYDRAULIC SYSTEM

1

REF

INSTRUCTION

CYLINDER, wrist-o-twist - (For breakdown, see Figure 264)

1шт.

2

S11230

HOSE

high pressure - 3/8" ID x 28" long - (With 3/4" - 12 female pressed on couplings)

2шт.

3

218-493

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 1/2" - 14 Male NPTF

adapter 90 degrees - (1/2" tube) - 3/4" - 16 male x 1/2" NPT male - 37 degrees flared

2шт.

4

131-203

LOCK NUT,3/8"-16, GB, LH

NUT - 3/8" NC (Replaces 129-103)

4шт.

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

5

S81912

SPACER

2шт.

6

S210358

LOCK VALVE

VALVE, flow control

2шт.

7

218-456

HYD CONNECTOR,3/4" - 16 Male JIC x 1/2" - 14 Male NPTF

ADAPTER - (1/2" tube) - 3/4" - 16 male x 1/2" NPT male - 37 degrees flared

3шт.

8

218-5173

ELBOW,45 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Female JIC

swivel 45 degrees - (1/2" tube) - 3/4" - 16 male x 3/4" - 16 female - 37 degrees flared

4шт.

9

218-5230

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree Fem Sw

swivel 90 degrees - (1/2" tube) - 3/4" - 16 male x 3/4" - 16 female - 37 degrees flared

2шт.

10

S11236

HOSE ASSY.

HOSE, high pressure - 3/8" ID x 26" long - (See note)

2шт.

Hose connects to union (ref 2) on figure 262 or (ref 1) on figure 260.

1шт.

A21571

HOSE

BULK - 3/8" ID x 25' requires 24" to make S11236

1шт.

220-212

FITTING

COUPLING, reusable - (Used to make S11236 hose)

1шт.
