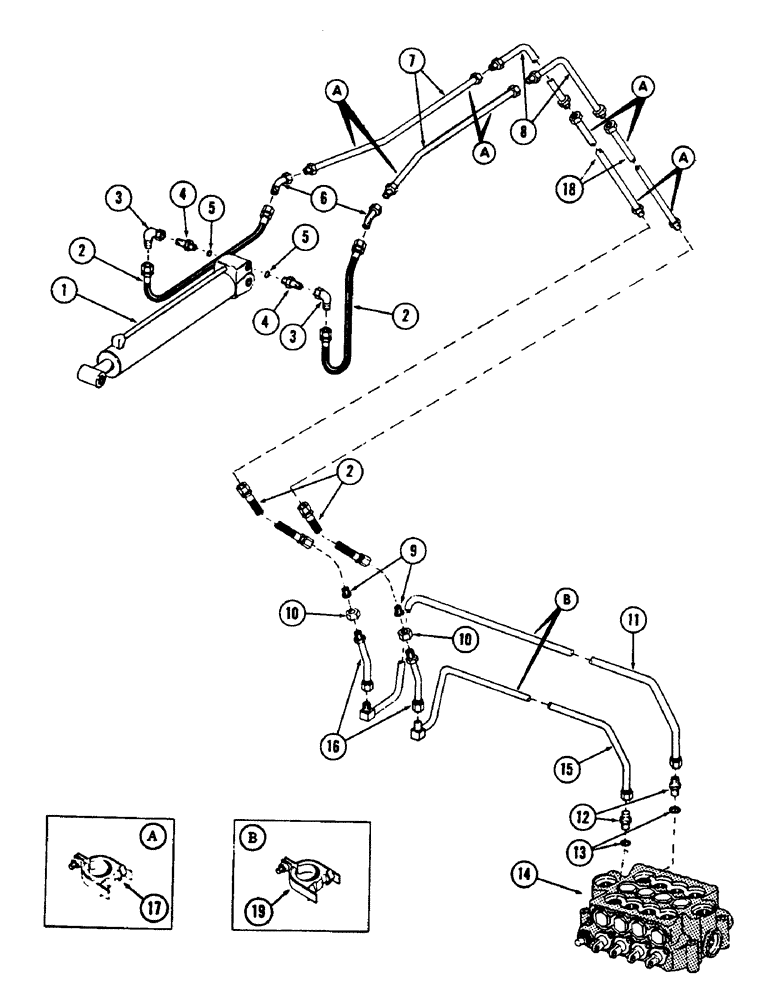

Запчасти Case 880B (250) - "Y" BOOM TOOL CYLINDER TUBING (07) - HYDRAULIC SYSTEM

1

REF

INSTRUCTION

CYLINDER, tool - (For breakdown, see Figure 252)

1шт.

2

S15468

HOSE

high pressure - 3/4" ID x 28" long - (With 1-1/16" - 12 female pressed on couplings)

4шт.

3

218-5231

ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree Fem Sw

- 90 degrees swivel - 1-1/16" - 12 male x 1-1/16" - 12 female

2шт.

4

S66478

CONNECTOR, ELEC

CONNECTOR - (Long) - flared - 1-1/16" - 12 female x 1-1/16" - 12 female, Includes: Ref. 5

2шт.

5

S6065

RING

"O" RING

2шт.

6

218-5175

ELBOW,45 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Female JIC

- 45 degrees swivel - 1-1/16" - 12 male x 1-1/16" - 12 female

2шт.

7

S501883

LINE, hydraulic 1" OD x 73.5, 5.4" L

2шт.

8

S501882

LINE, hydraulic 1" OD x 13.92, 9" L

2шт.

9

218-797

REDUCER,37 Degree, 1" x 3/4" Tube

ADAPTER, reducing - (1" to 3/4" tube reduction) - 1-1/16" - 12 male, Includes: Ref. 10

2шт.

10

218-348

TUBE NUT,37 Degree, 1 5/16"-12, Type B

NUT, sleeve - (1" tube) - 1-5/16" - 12 female

2шт.

11

S502081

PIPE,1.25" OD

LINE, hydraulic

1шт.

12

S7972

CONNECTOR, ELEC

ADAPTER, flared - 1-5/16" - 12 male x 1-5/16" - 12 male, Includes: Ref. 13

2шт.

13

S6069

O-RING,1.171" ID x 0.116" Width

"O" RING

2шт.

14

REF

INSTRUCTION

VALVE, 4 spool main - (For breakdown, see Figure 200)

1шт.

15

S502080

PIPE,1.25" OD

LINE, hydraulic

1шт.

16

S211849

LINE,1.25" OD

hydraulic

2шт.

17

S91602

CLAMP

tube (1.00" TUBE OD)

1шт.

18

S206780

LINE,1" OD x 7" L

hydraulic

2шт.

19

S93266

CLAMP

tube (1.25" TUBE OD)

1шт.
