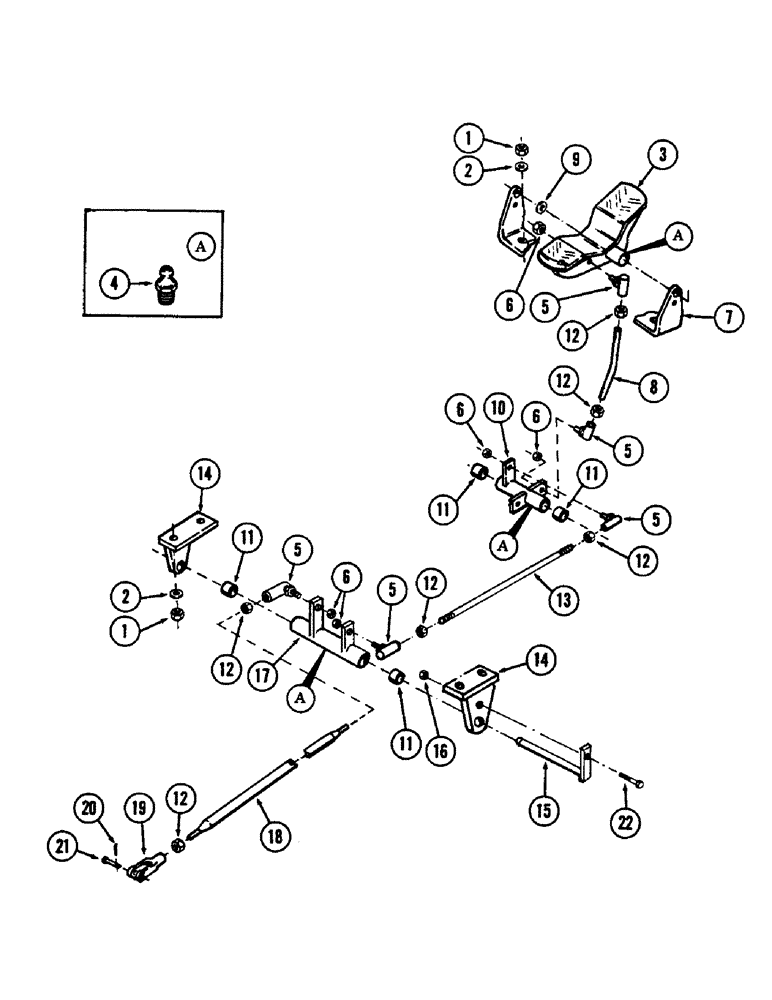

Запчасти Case 880B (246) - PEDAL AND ATTACHING PARTS FOR: TOOL CONTROL (07) - HYDRAULIC SYSTEM

1

131-70

NUT,1/2"-13, GB

NUT, self locking - 1/2" - 13 NC

6шт.

2

95-8

WASHER,1/2"

flat 1/2"

6шт.

3

S511074

PEDAL

1шт.

4

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, (straight) 1/4"-28 NPT x .54" lg

3шт.

5

S215594

BALL

JOINT

5шт.

6

131-493

NUT

self locking - 3/8" - 24 NF

5шт.

7

S226342

BRACKET, foot pedal mounting

1шт.

8

S229404

ROD

connecting

1шт.

9

195-41

WASHER,5/8"

(Used as spacer) 5/8"

1шт.

10

S229402

ARM ASSY.

BELLCRANK

1шт.

11

A30586

NEEDLE BEARING

BEARING, needle

4шт.

12

86585245

SPECIAL NUT,JAM, 5/8" - 18

jam - 3/8" - 24 NF

6шт.

13

S81263

ROD

connecting

1шт.

14

S218939

BRACKET, bellcrank support

2шт.

15

S219444

SHAFT

- (Without leveler)

1шт.

16

86625061

NUT,1/4"-20, GB

NUT, self locking - 1/4" - 20 NC

1шт.

17

S236292

ARM ASSY.

BELLCRANK

1шт.

18

S219273

ROD

connecting

1шт.

19

213-4

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

YOKE

1шт.

20

132-67

COTTER PIN,5/32" x 3/4"

Pin, Split (Cotter), 5/32" x 3/4"

1шт.

21

S10768

PIN

clevis - 3/8" x 1.016" grip length

1шт.

22

113-17

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

1шт.
