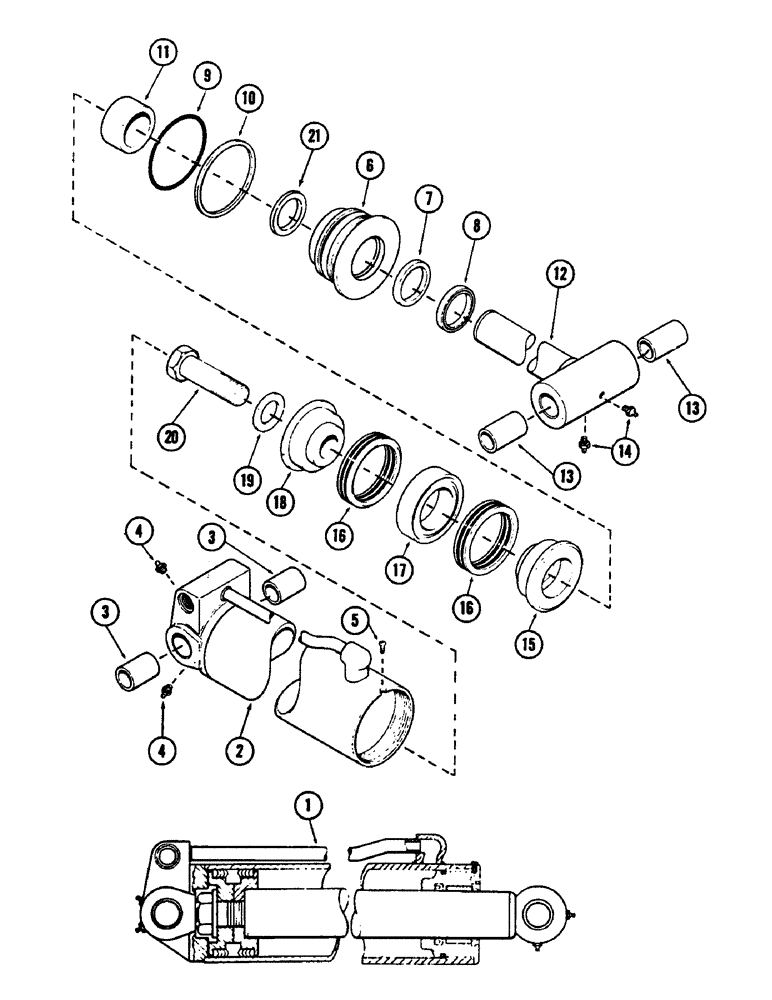

Запчасти Case 880B (244) - HOIST AND CROWD CYLINDER, (5-1/2" DIA. CYLINDER W/45-1/2" STROKE & 2-3/4" ROD ASSEMBLY) (07) - HYDRAULIC SYSTEM

1

S602618

CYLINDER

ASSEMBLY, hydraulic, hoist and crowd, Includes: Ref. 1 - 20

2шт.

TUBE SHOWN ON CYL IS PART G106694

1шт.

2

S602584

TUBE

ASSEMBLY, cylinder, Includes: Ref. 3

1шт.

3

S210601

BUSHING,38.06mm ID x 50.93mm OD x 63.5mm L

pivot

2шт.

4

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING, grease - 1/8" P.T. str.

2шт.

5

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW, gland, - No. 8 - 32 x 1/4" rd. hd. self-tapping

1шт.

6

NSS

NOT SOLD SEPARAT

GLAND ASSEMBLY - (Order S92723), Includes: Ref. 7 - 10

1шт.

Part of gland kit, P/N S92723

1шт.

7

S220099

BEARING

1шт.

Part of seal repair kit, P/N S92724

1шт.

Part of gland kit, P/N S92723

1шт.

8

D95147

WIPER SEAL,69.8mm ID x 82.58mm OD x 7.92mm Thk

WIPER, rod - (2-3/4" I.D.)

1шт.

Part of seal repair kit, P/N S92724

1шт.

Part of gland kit, P/N S92723

1шт.

9

A27384

O-RING,0.139" Thk x 5.234" ID, -252, Cl 5, 75 Duro

"O" RING - gland seal - (4-3/4" x 5-1/8")

1шт.

Part of seal repair kit, P/N S92724

1шт.

Part of gland kit, P/N S92723

1шт.

10

S92644

RING

back-up - (5-1/4" I.D.)

1шт.

Part of seal repair kit, P/N S92724

1шт.

Part of gland kit, P/N S92723

1шт.

11

S220102

SPACER

gland - (2 7/8" I.D.) x 3 3/4" O.D. x 1.93"

1шт.

12

S512193

ROD ASSY.

ROD ASSEMBLY, piston - 2-3/4" dia., Includes: Ref. 13

1шт.

13

S210601

BUSHING,38.06mm ID x 50.93mm OD x 63.5mm L

pivot

2шт.

14

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING, grease - 1/8" P.T. str.

4шт.

15

S220101

PISTON

split - rod end

1шт.

16

D47207

GASKET KIT

PACKING, piston

2шт.

Part of seal repair kit, P/N S92724

1шт.

17

D47212

BEARING WASHER,4.256" ID x 5.491" OD x 0.748"

RING, center, packing

1шт.

18

D49165

PISTON

split bolt end

1шт.

19

NLS

NO LONGER SERVICED

retaining piston

1шт.

20

28-2456

BOLT,Hex, 1-1/2" - 12 x 3-1/2", Gr 8

piston - 1-1/2" N.F. x 3-1/2" hex hd.

1шт.

21

S220100

SEAL

1шт.

Part of gland kit, P/N S92723

1шт.

S92724

SEAL KIT

KIT, seal repair, Includes: Ref. 7, 8, 9, 10 and 16

1шт.

S92723

SEAL KIT

KIT, gland, Includes: Ref. 6, 7, 8, 9, 10 and 21

1шт.
