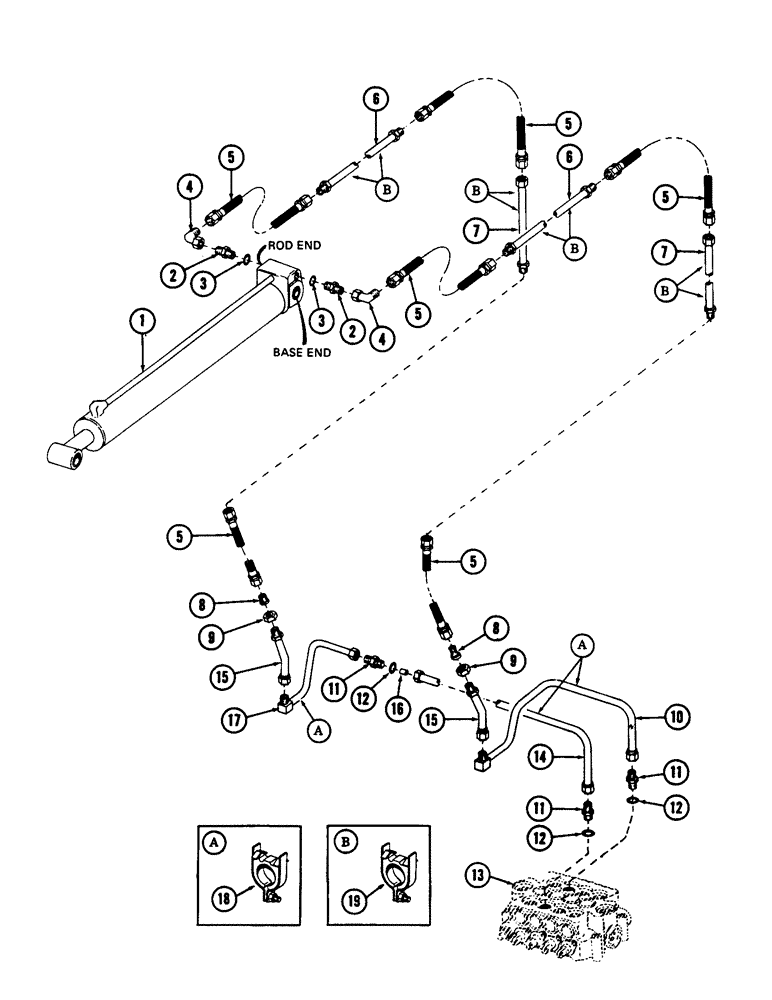

Запчасти Case 880B (240) - "E" BOOM CROWD CYLINDER TUBING (07) - HYDRAULIC SYSTEM

1

REF

INSTRUCTION

CYLINDER - crowd - (For breakdown, see Figure 244)

1шт.

2

S7968

CONNECTOR, ELEC

CONNECTOR - (3/4" tube) - 1-1/16" - 12 male x 1-1/16" - 12 male - 37 degrees flared, Includes: Ref. 3

2шт.

3

S6065

RING

"O" RING

2шт.

4

218-5231

ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree Fem Sw

90 degrees swivel, - 1-1/16" - 12 male x 1-1/16" - 12 female - 37 degrees flared

2шт.

5

S15468

HOSE

high pressure - 3/4" ID x 28" long - (With 1-1/16" - 12 female pressed on couplings)

6шт.

6

S211975

LINE,1" OD x 13.5" L

TUBE, hydraulic

2шт.

7

S207637

LINE,1" OD x 61.12" L

TUBE, hydraulic

2шт.

8

218-797

REDUCER,37 Degree, 1" x 3/4" Tube

ADAPTER, reducing - (1" to 3/4" tube reduction - 1-1/16" - 12 male), Includes: Ref. 9

2шт.

9

218-348

TUBE NUT,37 Degree, 1 5/16"-12, Type B

NUT, sleeve - (1" tube) - 1-5/16" - 12 female

2шт.

10

S502079

TURBINE,1.25" OD

TUBE, hydraulic

1шт.

11

S7972

CONNECTOR, ELEC

CONNECTOR - (1" tube) 1-5/16" - 12 male x 1-5/16" - 12 male - 37 degrees flared, Includes: Ref. 12

3шт.

12

S6069

O-RING,1.171" ID x 0.116" Width

"O" RING

3шт.

13

REF

INSTRUCTION

VALVE, 4-spool main hydraulic - (For breakdown, see Figure 198)

1шт.

14

S502078

TUBE ASSY.,1.25" OD x 9.1, 19" L

TUBE, hydraulic

1шт.

15

S211849

LINE,1.25" OD

TUBE, hydraulic

2шт.

16

D56252

FITTING

REGULATOR, flow

1шт.

17

S502109

LINE,1.25" OD

TUBE, hydraulic

1шт.

18

S93266

CLAMP

tube

2шт.

19

S91602

CLAMP

tube

6шт.
