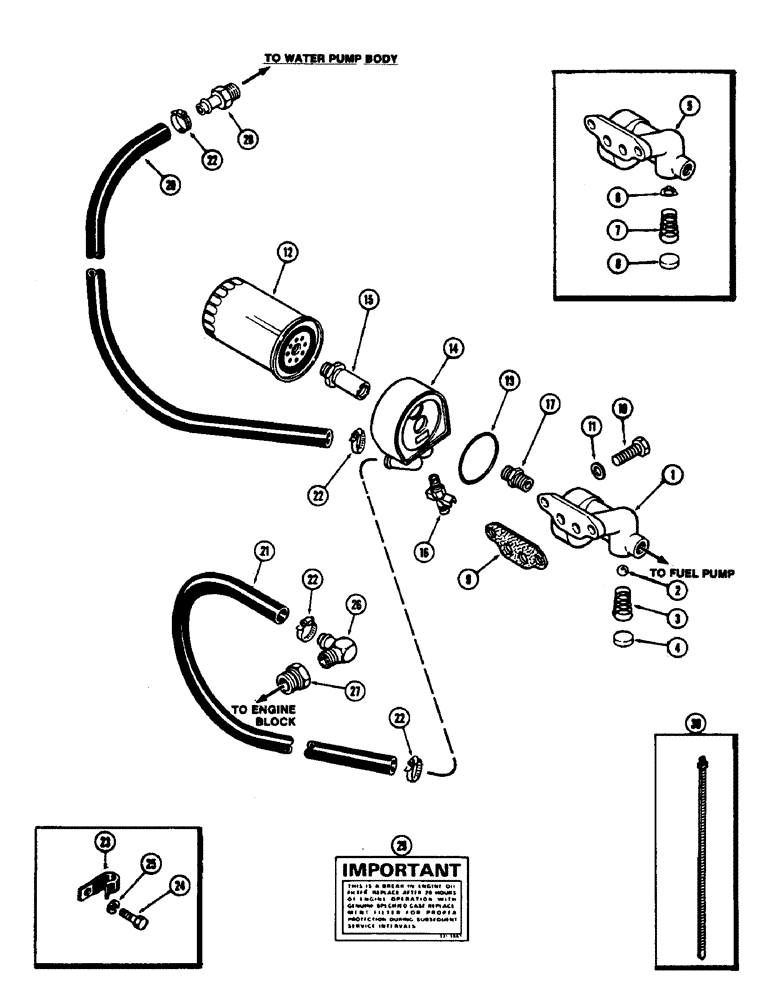

Запчасти Case 880B (006) - OIL FILTER AND COOLER, 336BDT DIESEL ENGINE (01) - ENGINE

1

A155951

BASE ASSEMBLY - oil filter (Replaces A58752), Includes: Ref. 2 - 4

1шт.

2

211-15

BALL,5/8" Dia

- lube oil filter

1шт.

3

A155953

SPRING

- lube oil filter relief

1шт.

4

41-1016

PLUG,Cup, 1"

- relief valve, 1" cup (25.40 MM)

1шт.

5

A58752

BASE

ASSEMBLY - oil filter, Includes: Ref. 6 - 8

1шт.

6

A58754

VALVE

- relief, filter

1шт.

7

A58755

FILTER

SPRING - relief valve

1шт.

8

41-1016

PLUG,Cup, 1"

- relief valve, 1" cup (25.40 MM)

1шт.

9

A58756

OIL PAN GASKET SET

- filter, Serial Range: base-block

1шт.

10

113-412

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

2шт.

11

92-8

LOCK WASHER,1/2"

2шт.

12

A75294

ENGINE OIL FILTER

ELEMENT - filter, oil

1шт.

13

A153806

SEALING RING

- oil, 2-21/32" x 3" x 13/64" (67.31 x 76.20 x 5.16 MM)

1шт.

14

A66295

COOLER

- lube oil

1шт.

15

A66992

ADAPTER

-, Serial Range: filter-cooler

1шт.

16

217-107

VALVE

DRAIN - cooler (Discard 1/8" pipe plug in cooler)

1шт.

17

A58757

ADAPTER

-, Serial Range: cooler-base

1шт.

20

NSS

NOT SOLD SEPARAT

HOSE - cooler to water pump, 47" long (1194 MM) (Order A42610)

1шт.

21

NSS

NOT SOLD SEPARAT

HOSE - cooler to block, 25" long (635 MM) (Order A42610)

1шт.

A42610

LARGE HOSE

HOSE - 5/8 x 15/16 x 50' (15.88 MM x 23.81 MM x 15.15 M) (Cut as required)

1шт.

22

214-253

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

CLAMP - hose, 9/16" to 1-1/16" (14.29 to 26.99 MM)

4шт.

23

A59718

CLAMP

CLIP - hose

2шт.

24

113-205

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

1шт.

25

92-6

LOCK WASHER,3/8"

2шт.

26

217-134

ELBOW,90 Degree Elbow, 5/8" Hose Barb x 1/2" Male NPTF

CONNECTOR - hose, 90 degree

1шт.

27

221-1060

REDUCER,Hex, 3/4" x 1/2" NPT

- 3/4" x 1/2"

1шт.

28

217-153

FITTING,5/8" Hose Barb x 1/2" Male NPTF

CONNECTOR - hose, 5/8" x 1/2" PT

1шт.

29

321-3863

DECAL

- engine oil filter

1шт.

30

L18331

CABLE TIE,375.9mm L, Nylon, Black

STRAP - oil cooler hoses

1шт.
