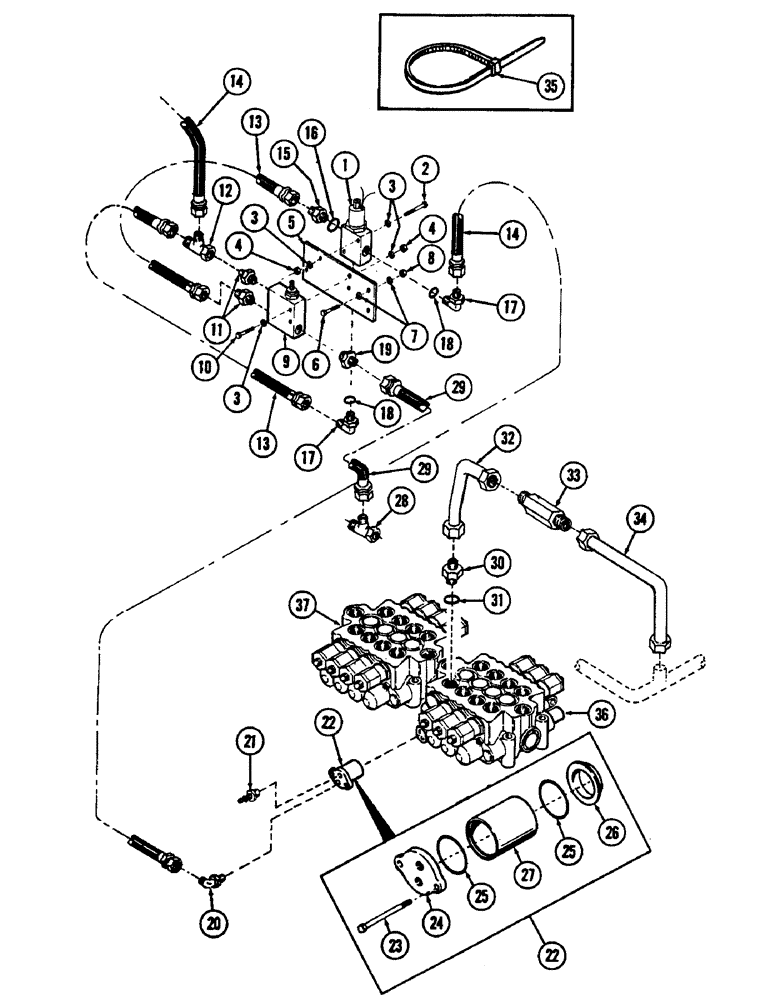

Запчасти Case 880B (236) - FAST HOIST TUBING (07) - HYDRAULIC SYSTEM

1

S237789

VALVE

solenoid

1шт.

2

113-121

BOLT,Hex, 5/16" - 18 x 2", Gr 5

2шт.

3

195-102

WASHER,1/4"

flat - 5/16"

4шт.

4

231-1445

NUT,5/16"-18, GB

NUT, self locking - 5/16" - 18 NC

4шт.

5

S236354

BRACKET

1шт.

6

113-233

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

2шт.

7

195-103

WASHER,5/16"

flat - 3/8"

4шт.

8

131-52

NUT,3/8"-16, GC

NUT, self locking - 3/8" - 16 NC

2шт.

9

S236348

VALVE

pressure reducing

1шт.

10

113-111

BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 5

2шт.

11

218-1024

HYD CONNECTOR,9/16"-18, 37 Degree x 3/8"-18, NPTF

CONNECTOR, HYD., 9/16"-18, 37° x 3/8"-18, NPTF, 3/8" tube

2шт.

12

218-5222

TEE,37 Degree, 9/16"-18, x 9/16"-18, Fem Sw Run

- (3/8" tube) - 9/16" - 18 male x 9/16" - 18 female x 9/16" - 18 male - 37 degrees flared

1шт.

13

S77121

HOSE

high pressure - 1/4" ID x 20" long - (9/16" - 18 female pressed on couplings)

2шт.

14

S227396

HOSE ASSY.

HOSE, high pressure - 3/8" ID x 50" long - (9/16" - 18 female pressed on couplings)

2шт.

15

S7961

CONNECTOR, ELEC

ADAPTER - (3/8" tube) - 9/16" - 18 male x 9/16" - 18 male - 37 degrees flared, Includes: Ref. 16

1шт.

16

S6059

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

"O" RING

1шт.

17

76344

90 ELBOW,9/16" - 18 JIC x 9/16" - 18 ORB

Adjustable (3/8" tube), Incl. Ref. 18 90º, 9/16"-18, 37º x 9/16"-18, O-Ring

2шт.

18

S6059

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

"O" RING

2шт.

19

218-444

HYD CONNECTOR,3/4" - 16 Male JIC x 3/8" - 18 Male NPTF

ADAPTER - (1/2" tube) - 3/4" - 16 male x 3/8" - 18 NPT male - 37 degrees flared

1шт.

20

218-492

90 ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 1/8" - 27 Male NPTF

90 degrees - (3/8" tube) - 9/16" - 18 male x 1/8" NPT male - 37 degrees flared

1шт.

21

D46258

PLUG

SCREW, bleeder

1шт.

22

S232345

KIT

SPOOL END CAP KIT, Includes: Ref. 23 - 26

1шт.

23

S95658

BOLT

- 3/8" NC x 3-1/4" Gr 8

1шт.

24

S111269

HEAD

1шт.

25

S6394

O-RING

"O" RING

2шт.

26

S111267

WASHER

1шт.

S111268

SLEEVE

TUBE, cylinder

1шт.

28

218-845

TEE,37 Degree, 3/4"-16 x 3/4"-16, Fem Sw Run

1шт.

29

S11226

HOSE

high pressure - 3/8" ID x 20" long - (With 3/4" - 16 female pressed on couplings)

1шт.

30

S7972

CONNECTOR, ELEC

ADAPTER - (1" tube) - 1-5/16" - 12 male x 1-5/16" - 12 male - 37 degrees flared, Includes: Ref. 31

1шт.

31

S6069

O-RING,1.171" ID x 0.116" Width

"O" RING

1шт.

32

S221085

TUBE,1.25" OD

hydraulic

1шт.

33

S93154

VALVE

check

1шт.

34

S236304

TUBE,1.25" OD x 4.3, 9.05" L

hydraulic

1шт.

35

S73387

CLIP

TIE, cable

9шт.

36

REF

INSTRUCTION

VALVE, 4-spool main hydraulic - (For breakdown, see Figure 200)

1шт.

37

REF

INSTRUCTION

VALVE, 4-spool main hydraulic - (For breakdown, see Figure 198)

1шт.
