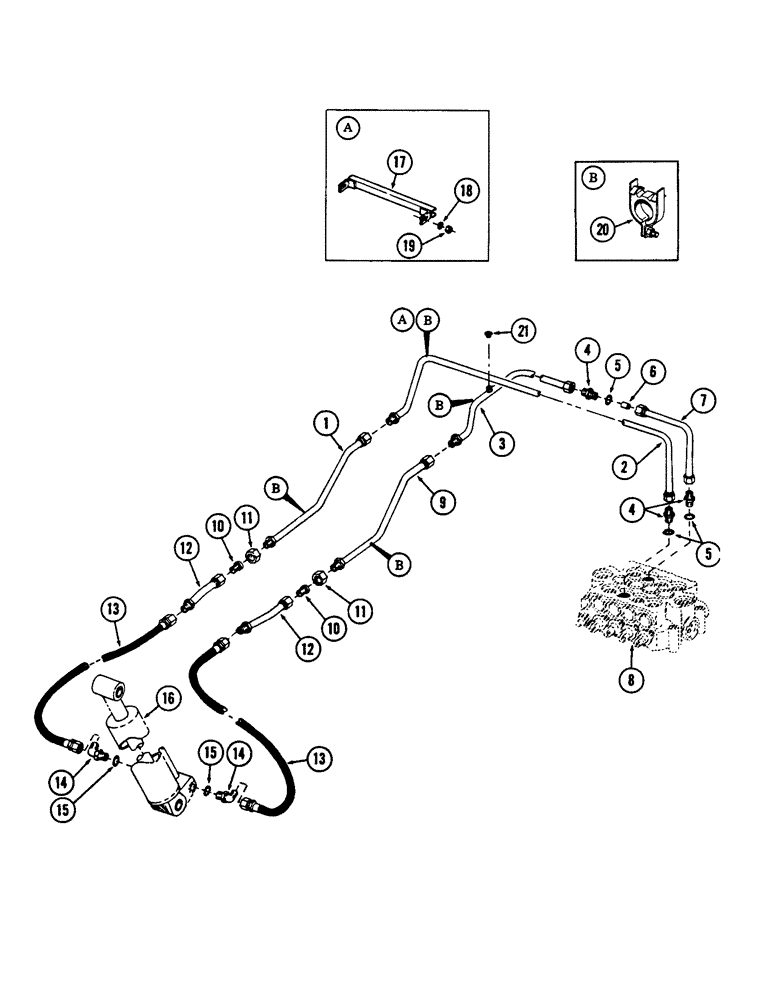

Запчасти Case 880B (234) - HOIST CYLINDER TUBING (07) - HYDRAULIC SYSTEM

1

S502085

LINE, hydraulic 1.25" OD

1шт.

2

S502083

LINE

hydraulic

1шт.

3

S506138

TUBE ASSY.,0.625" OD x 11, 3.25" L

LINE, hydraulic

1шт.

4

S7972

CONNECTOR, ELEC

ADAPTER, flared - 1-5/16" male x 1-5/16" male, Includes: Ref. 5

3шт.

5

S6069

O-RING,1.171" ID x 0.116" Width

"O" RING

3шт.

6

D56252

FITTING

REGULATOR, flow

1шт.

7

S502084

TUBE,1.25" OD

LINE, hydraulic

1шт.

8

REF

INSTRUCTION

VALVE, 4-spool main - (For breakdown, see Figure 200)

1шт.

9

S502086

LINE

hydraulic

1шт.

10

218-797

REDUCER,37 Degree, 1" x 3/4" Tube

ADAPTER, reducing - (1" to 3/4" tube reduction) - 1-1/16" 12 male, Includes: Ref. 11

2шт.

11

218-348

TUBE NUT,37 Degree, 1 5/16"-12, Type B

NUT, sleeve - (1" tube) - 1-5/16" - 12 female

2шт.

12

S211969

LINE,1" OD x 6.4, 1.5" L

hydraulic

2шт.

13

S15468

HOSE

high pressure - 3/4" ID x 28" long (With 1-1/16" - 12 female pressed on couplings)

2шт.

14

S7941

ELBOW

90 degrees flared - 1-1/16" - 12 male x 1-1/16" - 12 male, Includes: Ref. 15

2шт.

15

S6065

RING

"O" RING

2шт.

16

REF

INSTRUCTION

CYLINDER, hoist - (For breakdown, see Figure 244)

1шт.

17

S226021

BRACKET, tube mounting

1шт.

18

196-15

WASHER,17/32" x 1 1/6" x .134"

flat - 1/2"

2шт.

19

131-70

NUT,1/2"-13, GB

NUT, self locking - 1/2" - 13 NC

2шт.

20

S93266

CLAMP

tube

4шт.

21

218-758

CAP,37 Degree, 1 5/16"-12

- (Discard when fast hoist is used)

1шт.
