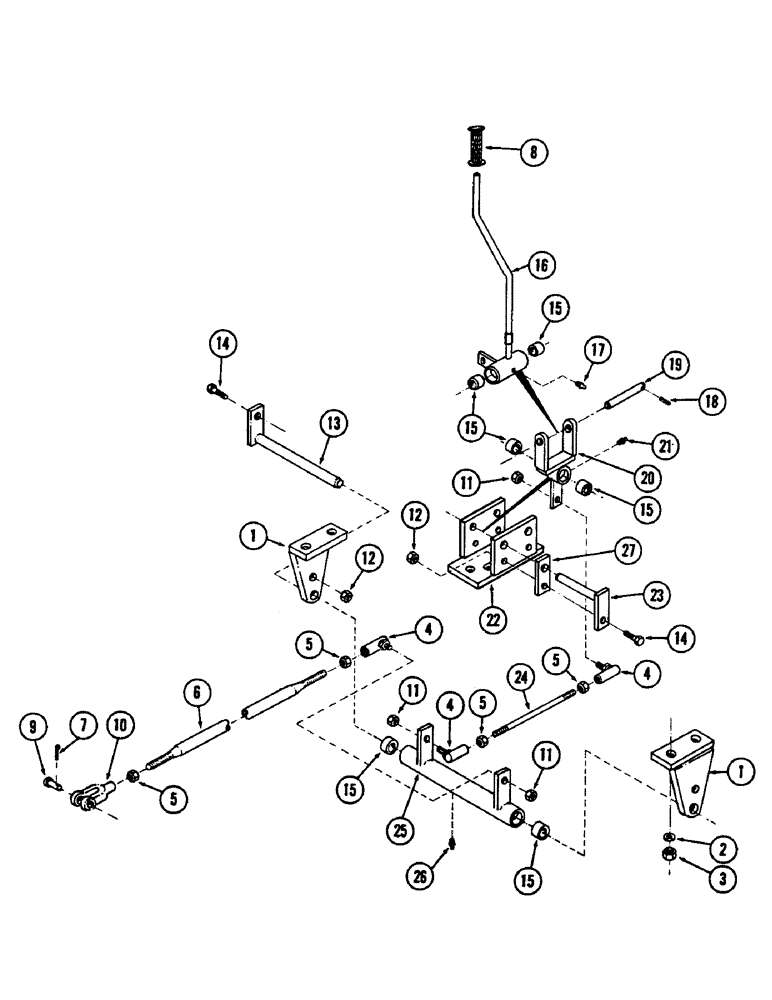

Запчасти Case 880B (232) - HOIST CONTROL AND LINKAGE (07) - HYDRAULIC SYSTEM

1

S218939

BRACKET

2шт.

2

95-8

WASHER,1/2"

flat 1/2"

4шт.

3

131-70

NUT,1/2"-13, GB

NUT, self locking - 1/2" - 13 NC

4шт.

4

S215594

BALL

JOINT, ball

3шт.

5

86585245

SPECIAL NUT,JAM, 5/8" - 18

jam - 3/8" - 24 NF

4шт.

6

S218942

ROD

connecting

1шт.

7

132-67

COTTER PIN,5/32" x 3/4"

Pin, Split (Cotter), 5/32" x 3/4"

1шт.

8

S109220

GRIP

handle

1шт.

9

S10768

PIN

clevis - 3/8" dia. x 1.016" grip length

1шт.

10

213-4

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

YOKE

1шт.

11

131-493

NUT

self locking - 3/8" - 24 NF

3шт.

12

86625061

NUT,1/4"-20, GB

NUT, self locking - 1/4" - 20 NC

2шт.

13

S217838

SHAFT

1шт.

14

113-17

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

2шт.

15

A30586

NEEDLE BEARING

BEARING, needle

6шт.

16

S613193

HANDLE

hoist control

1шт.

17

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, (straight) 1/4"-28 NPT x .54" lg

1шт.

18

138-61

LOCK PIN,1/8" x 1", Slotted

PIN, 1/8" x 1", Slotted

1шт.

19

S87535

SHAFT

1шт.

20

S220209

ARM ASSY.

BELLCRANK

1шт.

21

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, (straight) 1/4"-28 NPT x .54" lg

1шт.

22

S219036

SUPPORT

1шт.

23

S218962

SHAFT ASSY.

SHAFT

1шт.

24

S87477

ROD, connecting

1шт.

25

S236293

ARM ASSY.

BELLCRANK

1шт.

26

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, (straight) 1/4"-28 NPT x .54" lg

1шт.

27

S93485

SPACER

1шт.
