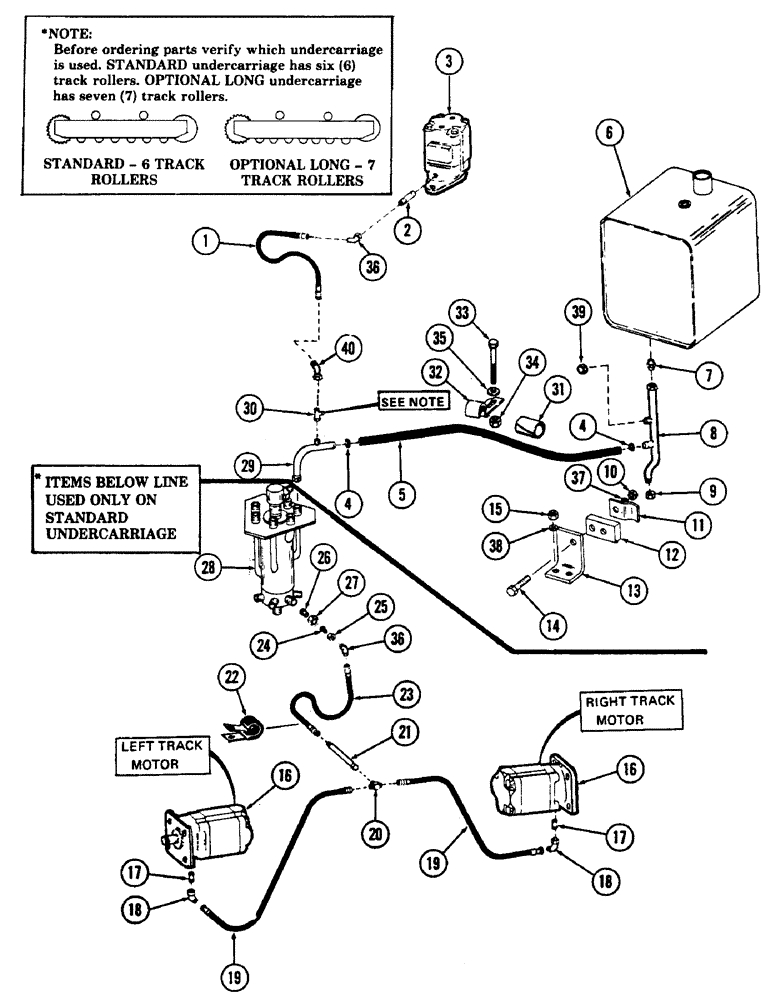

Запчасти Case 880B (230) - DRAIN TUBING (07) - HYDRAULIC SYSTEM

1

S73647

HOSE, high pressure - 3/8" ID x 22" long - (With 3/4" - 16 female pressed on couplings)

1шт.

2

218-455

HYD CONNECTOR,3/4" - 16 Male JIC x 1/4" - 18 Male NPTF

ADAPTER - (1/2" tube) - 3/4" - 16 male x 1/4" - 18 male - 37 degrees flared

1шт.

3

REF

INSTRUCTION

MOTOR, swing (For breakdown, see Figure 174)

1шт.

4

214-378

CLAMP,1.40"-1.56", T-Bolt

hose

2шт.

5

S202581

HYDRAULIC HOSE,1.00" ID Bulk, SAE 100R3

- Low pressure, 65" long 1.00" ID Bulk, SAE 100R3

1шт.

6

REF

INSTRUCTION

RESERVOIR, hydraulic oil - (For breakdown, see Figure 192)

1шт.

7

218-459

HYD CONNECTOR,1-5/16" - 12 Male JIC x 3/4" - 14 Male NPTF

ADAPTER - (1" tube) - 1-5/16" - 12 male x 3/4" - 11 male - 37 degrees flared

1шт.

8

S513372

TUBE, hydraulic 1" OD

1шт.

9

218-758

CAP,37 Degree, 1 5/16"-12

- 1-5/16" - 12 female

1шт.

10

131-52

NUT,3/8"-16, GC

NUT, self locking - 3/8" - 16 NC

1шт.

11

L32065

CLAMP

line

1шт.

12

S79936

BLOCK, spacer

1шт.

13

S92081

BRACKET

ANGLE

1шт.

14

113-219

BOLT,Hex, 3/8" - 16 x 2", Gr 5

1шт.

15

131-70

NUT,1/2"-13, GB

NUT, self locking - 1/2" - 13 NC

2шт.

16

REF

INSTRUCTION

MOTOR, track drive - (For breakdown, see figure 186)

2шт.

17

221-136

PIPE

NIPPLE - 1/4" NPT x 1-3/4" long

2шт.

18

218-1075

ELBOW,90 Degree, 3/4"-16, 37 Degree x 1/4"-18, Fem NPTF

- 90 degrees - 3/4" - 16 male x 1/4" NPT female

2шт.

19

S73647

HOSE, high pressure - 3/8" ID x 22" long (With 3/4" - 16 female pressed on couplings)

2шт.

20

218-594

TEE,3/4"-16, 37 Degree

- 3/4" - 16 male x 3/4" - 16 male x 3/4" - 16 male

1шт.

21

S209700

TUBE, hydraulic 0.5" OD x 12" L

1шт.

22

S49890

CLAMP

1шт.

23

S11230

HOSE

high pressure - 3/8" ID x 28" long - (With 3/4" - 16 female pressed on couplings)

1шт.

24

218-796

REDUCER,37 Degree, 5/8" x 3/8" Tube

ADAPTER, reducing - (3/4" x 1/2" reduction) 3/4" - 16 male, Includes: Ref. 25

1шт.

25

218-346

TUBE NUT,37 Degree, 1 1/16"-12, Type B

NUT, tube

1шт.

26

218-797

REDUCER,37 Degree, 1" x 3/4" Tube

ADAPTER, reducing (1" x 3/4" reduction) - 1-1/16" - 12 male, Includes: Ref. 27

1шт.

27

218-348

TUBE NUT,37 Degree, 1 5/16"-12, Type B

NUT, tube

1шт.

28

REF

INSTRUCTION

SWIVEL, seven port hydraulic (For breakdown, see Figure 218)

1шт.

29

S236377

TUBE,1" OD x 3.8, 5.05" L

hydraulic

1шт.

30

218-845

TEE,37 Degree, 3/4"-16 x 3/4"-16, Fem Sw Run

- 1/2" - 16 male x 3/4" - 16 female x 3/4" - 16 male

1шт.

31

S86502

RING

compression

1шт.

32

S87573

CLAMP

1шт.

33

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

1шт.

34

131-70

NUT,1/2"-13, GB

NUT, self locking - 1/2" - 13 NC

1шт.

35

195-105

WASHER,7/16"

flat - 1/2"

1шт.

36

218-5230

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree Fem Sw

90 degrees swivel - 3/4" - 16 x 3/4" - 16 female

2шт.

37

196-1

WASHER,13/32" x 13/16" x .089", HDN

flat - 3/8"

1шт.

38

196-15

WASHER,17/32" x 1 1/6" x .134"

flat - 1/2"

2шт.

39

218-754

CAP,37 Degree, 9/16"-18

- 7/16" - 20 female (Discard when fast hoist used)

1шт.

40

218-5173

ELBOW,45 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Female JIC

45 degrees swivel - 3/4" - 16 x 3/4" - 16 female

1шт.
