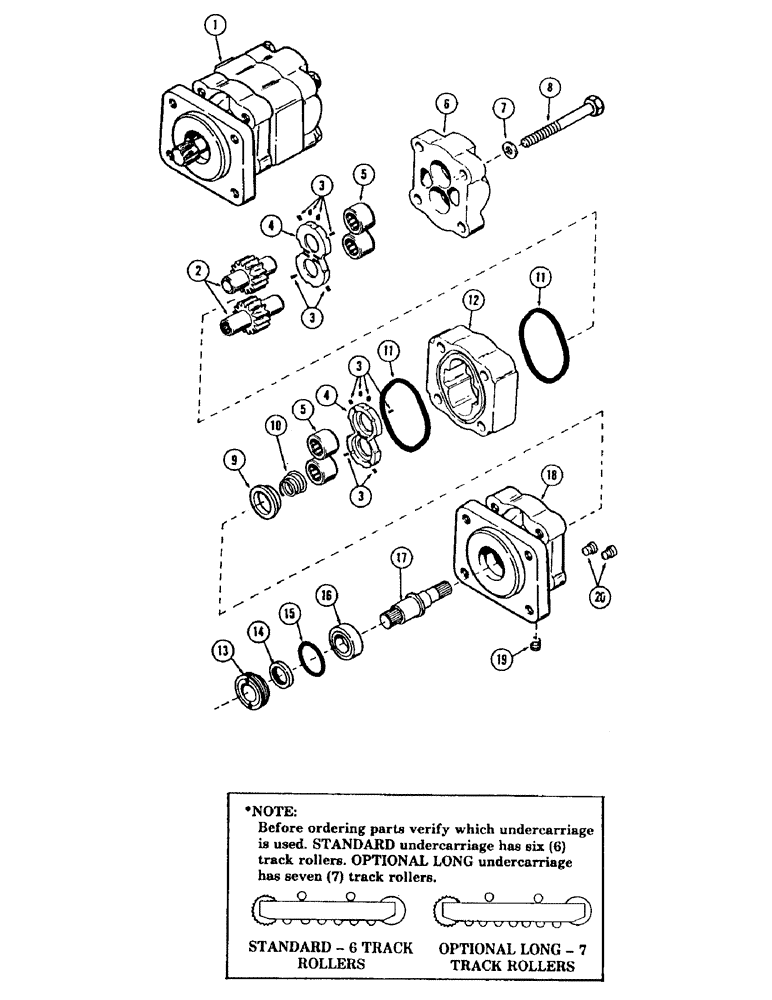

Запчасти Case 880B (226) - TRACK DRIVE MOTOR, * (USED ON UNITS WITH STANDARD UNDERCARRIAGE) (07) - HYDRAULIC SYSTEM

1

S613178

MOTOR, track drive, Includes: Ref. 2 - 20

1шт.

2

S67298

GEAR-SET

GEAR SET - (Matched set)

1шт.

3

L32099

SEAL

pocket

12шт.

4

D31955

PLATE

thrust

2шт.

5

D31942

ROLLER BEARING,1.29" ID x 1.9375" OD x 1.125"

BEARING, roller

4шт.

6

S61750

COVER

port end

1шт.

7

S107177

WASHER

4шт.

8

26-1092

BOLT,Hex, 5/8" - 11 x 5-3/4", Gr 8

- 5/8" NC x 5-3/4" Gr 5

4шт.

9

D31952

BUSHING

shaft

1шт.

10

D31953

VALVE SPRING

SPRING

1шт.

11

D41391

O-RING

GASKET, seal

2шт.

12

S67295

HOUSING

gear

1шт.

13

S70415

RETAINER

RING, retaining

1шт.

14

S70416

OIL SEAL

1шт.

15

A14506

O-RING,0.139" Thk x 2.234" ID, -228, Cl 5, 75 Duro

"O" RING

1шт.

16

S63513

TAPERED BEARING

BEARING, tapered

1шт.

17

S64277

SHAFT

drive

1шт.

18

S109027

COVER, shaft end

1шт.

19

221-841

PLUG

pipe - 1/4" NPT

1шт.

20

S61749

VALVE

CHECK ASSEMBLY

2шт.
