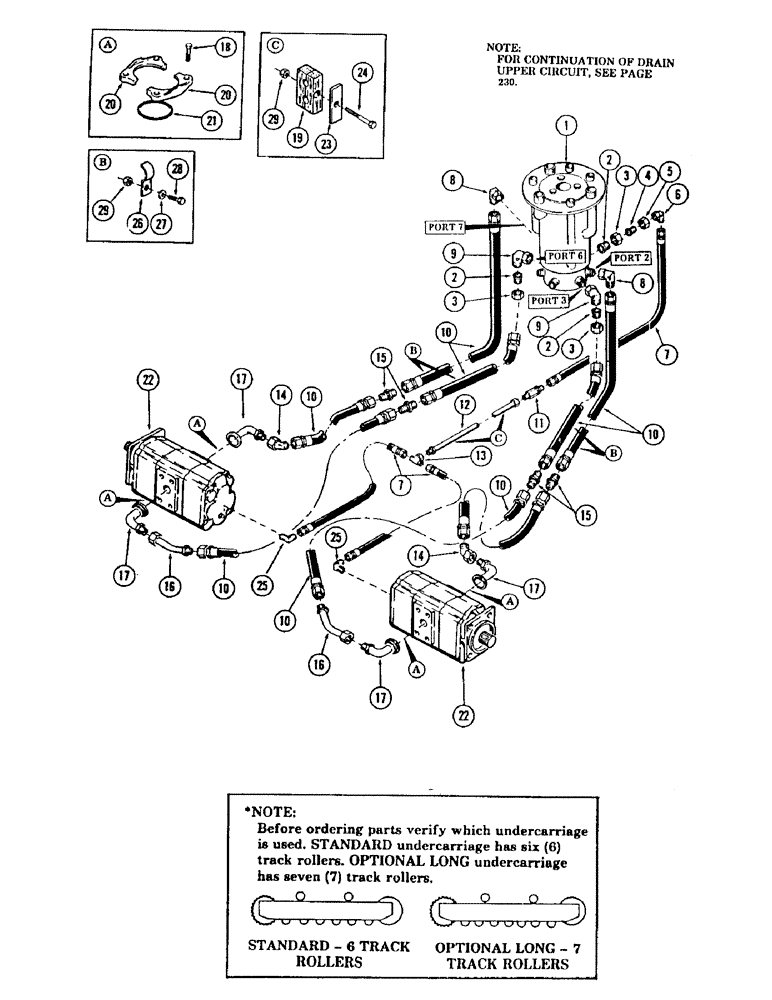

Запчасти Case 880B (222) - LOWER TRACK DRIVE MOTOR AND DRAIN TUBING, * (USED ON UNITS W/OPTIONAL LONG UNDERCARRIAGE) (07) - HYDRAULIC SYSTEM

1

REF

INSTRUCTION

SWIVEL, 7-port hydraulic - (For breakdown, see Figure 218)

1шт.

2

218-797

REDUCER,37 Degree, 1" x 3/4" Tube

ADAPTER, reducing - (1" x 3/4" tube) - 1-1/16" - 12 male - 37 degrees flared

3шт.

3

218-348

TUBE NUT,37 Degree, 1 5/16"-12, Type B

NUT, sleeve - (1" tube) - 1-5/16" - 12 female - 37 degrees flared

3шт.

4

218-796

REDUCER,37 Degree, 5/8" x 3/8" Tube

ADPATER, reducing - (3/4" x 1/2" tube) - 3/4" - 16 male 37 degrees flared

1шт.

5

218-346

TUBE NUT,37 Degree, 1 1/16"-12, Type B

NUT, sleeve - (3/4" tube) - 1-1/16" - 12 female - 37 degrees flared

1шт.

6

218-5230

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree Fem Sw

90 degrees swivel - (1/2" tube) - 3/4" - 16 male - 3/4" - 16 female - 37 degrees

1шт.

7

S11230

HOSE

high pressure - 3/8" OD x 28" long - (With 3/4" - 16 female pressed on couplings)

3шт.

8

218-5231

ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree Fem Sw

90 degrees swivel - (3/4") - 1-1/16" - 12 male x 1-1/16" - 12 female - 37 degrees flared

2шт.

9

218-5234

ELBOW,90 Degree, 1 5/16"-12, 37 Degree x 1 5/16"-12, 37 Degree Fem Sw

90 degrees swivel - (1" tube) - 1-5/16" - 12 male x 1-5/16" - 12 female - 37 degrees flared

2шт.

10

D44752

HOSE

high pressure - 3/4" ID x 28" long - (With 1-1/16" - 12 female pressed on couplings)

8шт.

11

REF

INSTRUCTION

VALVE, check - (For breakdown, see Figure 224)

1шт.

12

S209700

TUBE, hydraulic 0.5" OD x 12" L

1шт.

13

218-840

TEE,37 Degree, 3/4"-16 x 3/4"-16, Fem Sw Br

- (1/2" tube) - 3/4" - 16 male x 3/4" - 16 male x 3/4" - 16 female - 37 degrees flared

1шт.

14

218-5175

ELBOW,45 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Female JIC

45 degrees - (3/4" tube) - 1-1/16" - 12 male x 1-1/16" - 12 female - 37 degrees flared

2шт.

15

218-737

UNION,1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree

flared - (3/4" tube) - 1-1/16" - 12 male x 1-1/16" - 12 male - 37 degrees flared

4шт.

16

S234822

LINE,0.75" OD

TUBE, hydraulic

2шт.

17

S234821

ADAPTER

TUBE, hydraulic

4шт.

18

113-312

BOLT,Hex, 7/16" - 14 x 1-1/4", Gr 5

- 1/2" NC x 1-1/4" Gr 5

16шт.

19

S229701

CLAMP, tube

1шт.

20

A12301

CLAMP,Half

CLAMP, split flange

8шт.

21

S6586

O-RING,0.139" Thk x 1.484" ID, -222, Cl 6, 90 Duro

"O" RING - 1.484" ID x 1.750" OD

4шт.

22

REF

INSTRUCTION

MOTOR, track drive - (For breakdown, see Figure 228)

2шт.

23

S106048

BAR

1шт.

24

80087972

BOLT,Hex, 1/2" - 13 x 2 1/2", Gr 5

- 1/2" NC x 2-1/2" Gr 5

1шт.

25

218-1055

ELBOW,90 Degree, 3/4"-16, 37 Degree x 1/4"-18, NPTF

90 degrees - (1/2" tube) - 3/4" - 16 male x 1/4" NPT male - 37 degrees flared

2шт.

26

S82991

CLAMP

4шт.

27

196-15

WASHER,17/32" x 1 1/6" x .134"

hardened flat - 1/2"

4шт.

28

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

4шт.

29

131-70

NUT,1/2"-13, GB

NUT, self locking - 1/4" NC

5шт.
