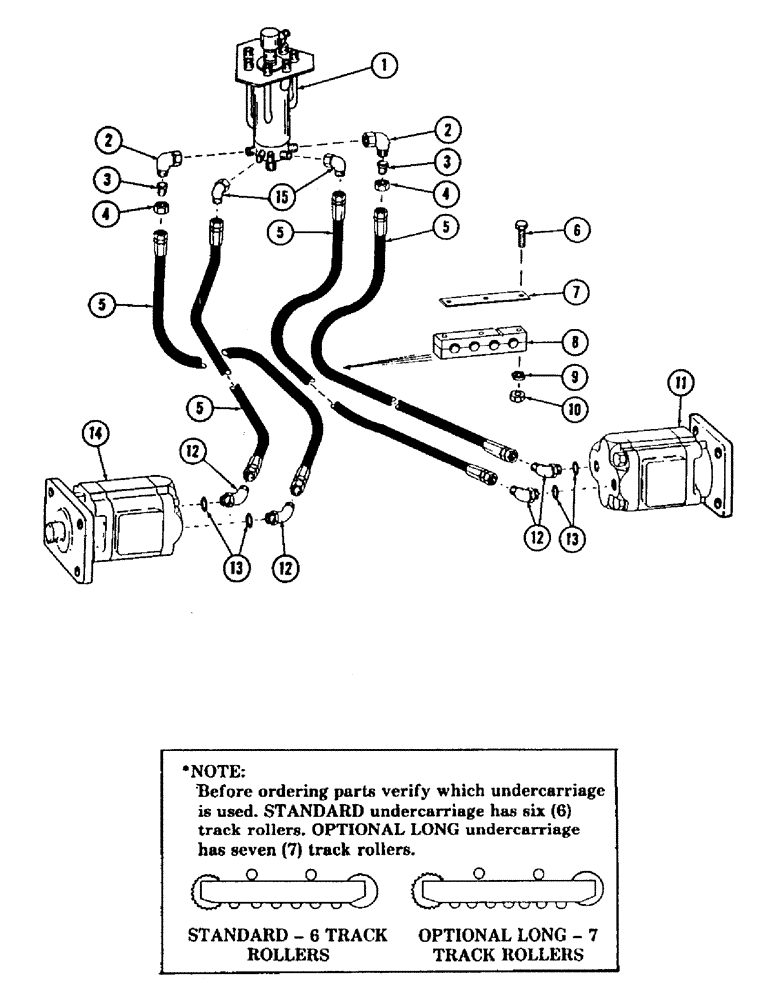

Запчасти Case 880B (220) - LOWER TRACK DRIVE MOTOR TUBING, * (USED ON UNITS WITH STANDARD UNDERCARRIAGE) (07) - HYDRAULIC SYSTEM

1

REF

INSTRUCTION

SWIVEL, seven port hydraulic (For breakdown, see Figure 218)

1шт.

2

218-5234

ELBOW,90 Degree, 1 5/16"-12, 37 Degree x 1 5/16"-12, 37 Degree Fem Sw

- 90 degrees swivel - (1" tube) - 1-5/16" - 12 male x 1-5/16" - 12 female

2шт.

3

218-797

REDUCER,37 Degree, 1" x 3/4" Tube

ADAPTER, reducing - (1" x 3/4" reduction) - 1-1/16" - 12 male, Includes: Ref. 4

2шт.

4

218-348

TUBE NUT,37 Degree, 1 5/16"-12, Type B

NUT, selleve - (1" tube) - 1-5/16" - 12 male

2шт.

5

S8750

HOSE

0.75" ID x 44.00", High Pressure

3шт.

6

113-411

BOLT,Hex, 1/2" - 13 x 4-1/2", Gr 5

3шт.

7

S79724

BAR

1шт.

8

S209703

BLOCK, wood

1шт.

9

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

3шт.

10

129-105

NUT,Hex, 1/2" - 13, Gr 5

3шт.

11

REF

INSTRUCTION

MOTOR, track drive R.H. (For breakdown, see Figure 226)

1шт.

12

S11255

ELBOW

- 45 degrees (3/4" tube) - 1-1/16" - 12 male x 1-1/16" - 12 male, Includes: Ref. 13

4шт.

13

S6065

RING

"O" RING

4шт.

14

REF

INSTRUCTION

MOTOR, track drive L.H. (For breakdown, see Figure 226)

1шт.

15

218-5231

ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree Fem Sw

- 90 degrees swivel - (1" tube) - 1-1/16" - 12 male x 1-1/16" - 12 female

2шт.
