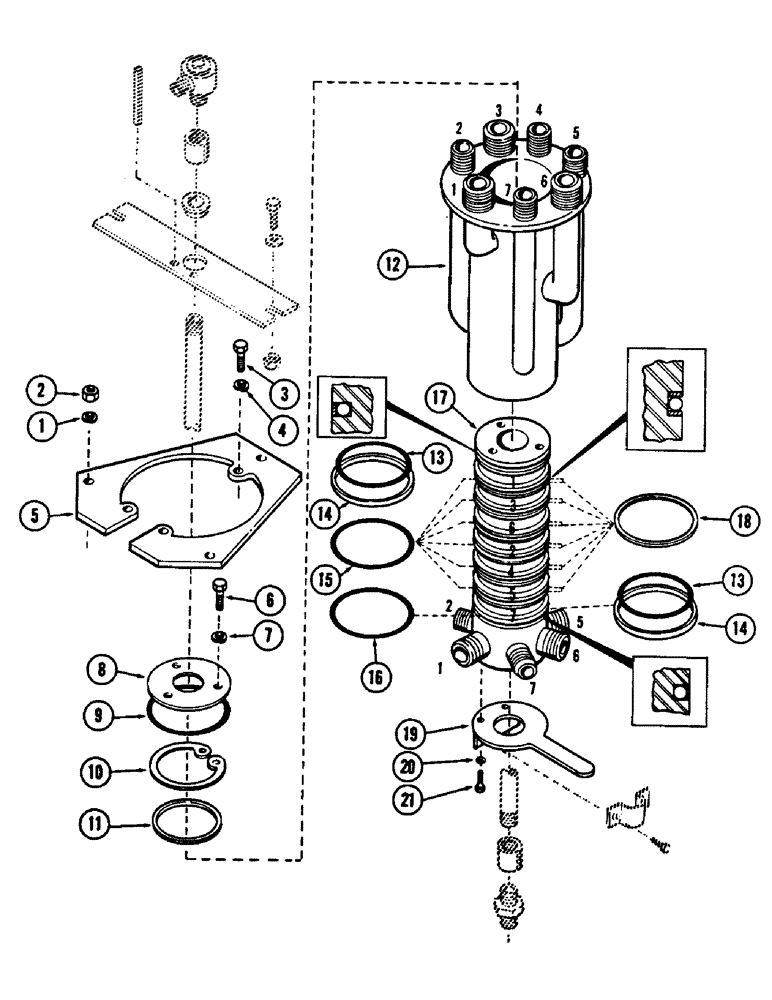

Запчасти Case 880B (218) - 7 PORT SWIVEL AND RELATED PARTS (07) - HYDRAULIC SYSTEM

1

195-103

WASHER,5/16"

plain - 3/8"

3шт.

2

131-52

NUT,3/8"-16, GC

NUT - 3/8" - 16 NC

3шт.

3

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3шт.

4

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

5

S204101

PLATE

upper - swivel mounting

1шт.

S57973

LINK

SWIVEL, hydraulic - 7 port, Includes: Ref. 6 - 18

1шт.

6

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

3шт.

7

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

8

S203821

CAP

bearing

1шт.

9

S76241

O-RING

"O" RING

1шт.

Part of seal kit, P/N S210212

1шт.

10

S15194

SNAP RING

RING, retaining

1шт.

11

S203832

WASHER

bearing

1шт.

12

S57975

ASSEMBLY

HOUSING, swivel

1шт.

13

A26993

O-RING,0.21" Thk x 3.725" ID, -343, Cl 5, 75 Duro

"O" RING

2шт.

Part of seal kit, P/N S210212

1шт.

14

S80705

SEAL

slipper

2шт.

Part of seal kit, P/N S210212

1шт.

15

A27507

O-RING,0.139" Thk x 3.984" ID, -242, Cl 5, 75 Duro

"O" RING

6шт.

Part of seal kit, P/N S210212

1шт.

16

S76240

O-RING

"O" RING

1шт.

Part of seal kit, P/N S210212

1шт.

17

S57974

ASSEMBLY

SHAFT, swivel

1шт.

18

S76928

WASHER

back up

12шт.

19

S237399

LARGE PLATE

PLATE, lower - swivel mounting

1шт.

20

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

3шт.

21

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

3шт.

22

S210212

SEAL KIT

KIT, seal, Includes: Ref. 9 and 13 thru 16

1шт.
