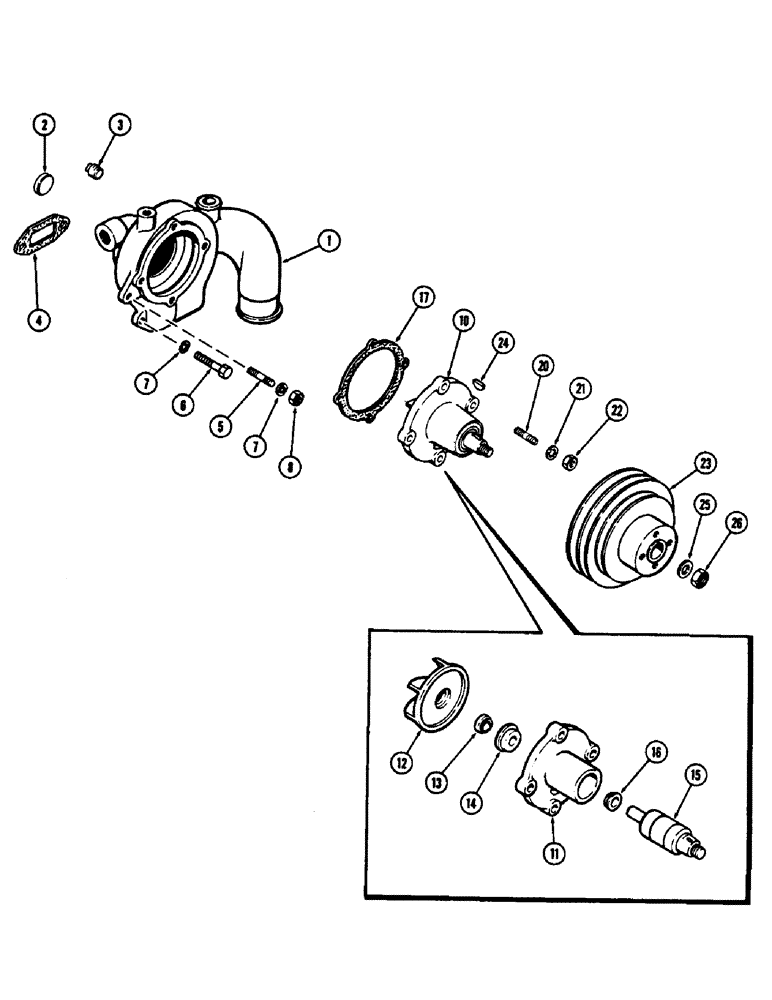

Запчасти Case 880B (005A) - WATER PUMP, WITH KEY WAY SHAFT, 336BDT DIESEL ENGINE (01) - ENGINE

1

A138498

HOUSING

BODY ASSEMBLY - water pump, Includes: Ref. 2

1шт.

2

A58568

PLUG,Cup, 1 3/8", Stainless

PLUG - cup, 1-3/8" diameter

1шт.

3

221-1015

DRAIN PLUG,Sq Hd, 1/4"-14 NPTF

PLUG - 3/4" PT square head

1шт.

4

A58649

GASKET

GASKET -, Serial Range: body-block

1шт.

5

G102128

BOLT

STUD - 3/8" NC x 1-1/2"

2шт.

6

113-262

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5, Full Thd

BOLT, Hex, 3/8"-16 x 1 1/8", G5, Full Thd

2шт.

7

92-6

LOCK WASHER,3/8"

LOCK WASHER, 3/8"

4шт.

8

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

10

A152153

PUMP

PUMP ASSEMBLY - (Order A155180, A155057 and 14-820 figure 4), Includes: Ref. 11 - 16

1шт.

10

1342818C1R

REMAN-WATER PUMP

Remanufactured Water Pump

1шт.

10

A48335

CORE-WATER PUMP

Return Part Number, Water Pump

1шт.

11

NSS

NOT SOLD SEPARAT

HOUSING

1шт.

12

A152126

IMPELLER

IMPELLER

1шт.

13

A34000

SEAL

SEAT - impeller

1шт.

14

A142499

SEAL

SEAL - shaft

1шт.

15

A154521

SHAFT

SHAFT ASSEMBLY - (Order A155177, A155057 and 14-820 figure 4), Includes: Ref. 16

1шт.

16

CASA29440

SLINGER

- water

1шт.

17

A58646

GASKET

GASKET -, Serial Range: pump-body

1шт.

20

A62234

STUD

STUD - 3/8" NC x 1-5/16"

4шт.

21

193-10

LOCK WASHER,Ext Tooth, 0.391" ID x 0.682" OD, STL, PLN

WASHER, LOCK, Ext Tooth, 3/8"

4шт.

22

25-146

JAM NUT,Jam, 3/8"-16, G5

NUT - jam, 3/8" NC hex

4шт.

23

A58650

PULLEY

PULLEY - belt

1шт.

24

126-116

WOODRUFF KEY,#9, 3/16" x 3/4", HT

WOODRUFF KEY, #9, 3/16" x 3/4", HT

1шт.

25

A58651

WASHER

WASHER - pulley

1шт.

26

131-1106

LOCK NUT,1/2"-20, GB

NUT, LOCK, 1/2"-20, GB

1шт.
