Запчасти Case 880B (210) - HYDRAULIC OIL FILTER (07) - HYDRAULIC SYSTEM

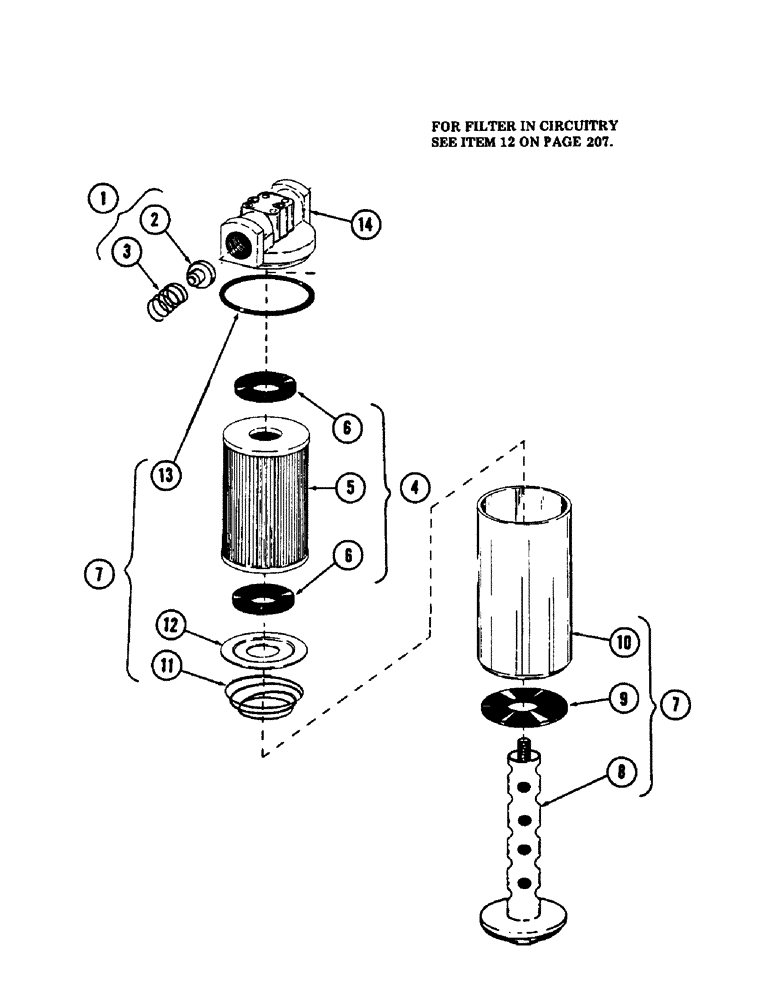

Схема запчастей Case 880B - (210) - HYDRAULIC OIL FILTER (07) - HYDRAULIC SYSTEM

Артикул

Название

Примечание

Количество

S209408

FILTER

hydraulic oil, Includes: Ref. 1 - 14

1шт.

1

S233967

VALVE, PRESSURE RELI

RELIEF, Includes: Ref. 2 and 3

1шт.

2

D74434

VALVE POPPET

POPPET

1шт.

3

D74435

SPRING

1шт.

4

S233968

FILTER

ELEMENT AND SEAL KIT, Includes: Ref. 5 and 6

1шт.

5

NSS

NOT SOLD SEPARAT

ELEMENT

1шт.

6

W12214

GASKET

SEAL

2шт.

7

L36030

HOUSING

filter element, Includes: Ref. 8 - 13

1шт.

8

T29796

SUPPORT

POST

1шт.

9

T29795

GASKET

SEAL

1шт.

10

T29794

HOUSING

1шт.

11

T29790

WASHER

SPRING

1шт.

12

T42195

WASHER

back up (Replaces W12214)

1шт.

13

T29789

SEALING RING,4.35" ID x 0.25" Width

SEAL

1шт.

14

NSS

NOT SOLD SEPARAT

HEAD

1шт.

Выбрано товаров: 15
