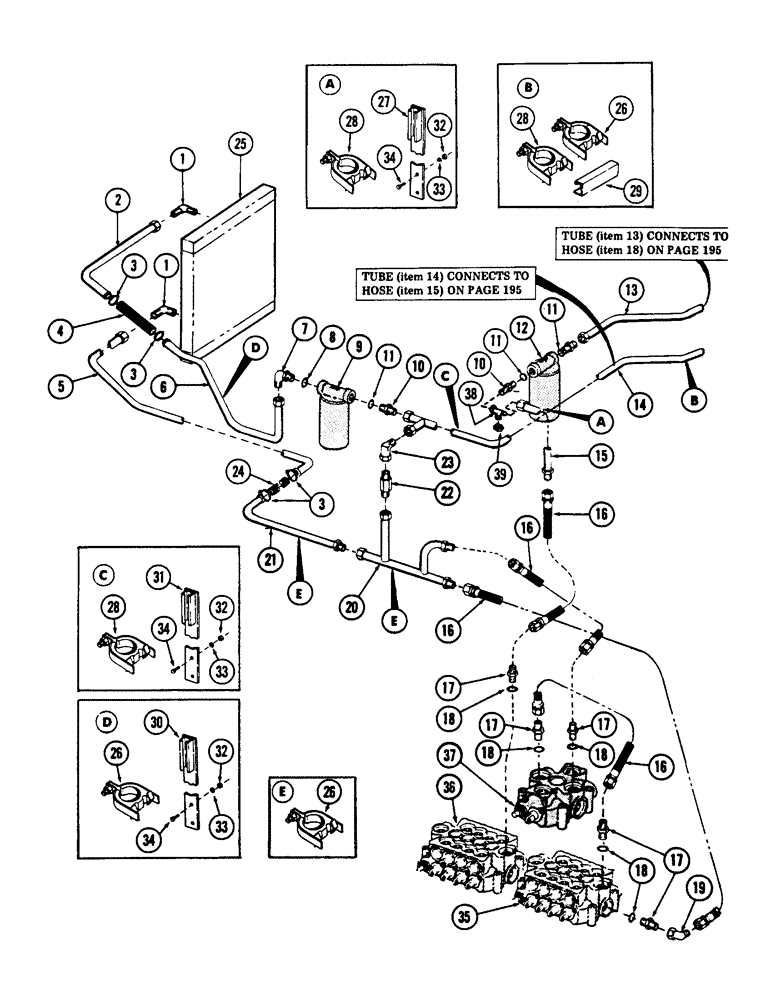

Запчасти Case 880B (206) - MAIN VALVE TO RESERVOR AND COOLER TUBING (07) - HYDRAULIC SYSTEM

1

218-1069

ELBOW,90 Degree, 1 5/8"-12, 37 Degree x 1"-11 1/2, NPTF

- 90 degrees - (1-1/4" tube) - 1-5/8" - 12 male x 1" NPT male

2шт.

2

S236313

LINE, hydraulic - cooler outlet 1.25" OD x 12.56, 8.12" L

1шт.

3

214-371

CLAMP,1.56"-1.81", T-Bolt

hose

4шт.

4

S202582

LINE

HOSE, low presure - (Bulk) - 1 piece - 1-1/4" ID x 22" long

1шт.

5

S236321

LINE, hydraulic - cooler inlet 1.25" OD

1шт.

6

S219803

LINE, hydraulic 1.25" OD

1шт.

7

S7945

ELBOW

- 90 degrees adjustable - (1-1/4" tube) - 1-5/8" - 12 male x 1-5/8" - 12 male - 37 degrees flared, Includes: Ref. 8

1шт.

8

S6073

RING

"O" RING

1шт.

9

REF

INSTRUCTION

FILTER, hydraulic oil (For breakdown, see Figure 208)

1шт.

10

S7976

CONNECTOR, ELEC

ADAPTER, flared - (1-1/2" tube) - 1-5/8" - 12 male x 1-5/8" - 12 male - 37 degrees flared, Includes: Ref. 11

3шт.

11

S6073

RING

"O" RING

3шт.

12

REF

INSTRUCTION

FILTER, hydraulic oil (For breakdown, see Figure 210)

1шт.

13

S505851

LINE, hydraulic - to oil reservoir 1.25" OD

1шт.

14

S513503

TUBE

LINE, hydraulic - to main pump

1шт.

15

S220641

LINE, hydraulic

1шт.

16

S8628

HOSE

high pressure - 1" ID x 36" long - (With 1-5/16" - 12 female pressed on couplings)

4шт.

17

S7972

CONNECTOR, ELEC

ADAPTER, flared 1-5/16" - 12 male x 1-5/16" - 12 male, Includes: Ref. 18

4шт.

18

S6069

O-RING,1.171" ID x 0.116" Width

"O" RING

4шт.

19

21805234

ELBOW - 90 degrees swivel - 1-5/16" - 12 male x 1-5/16" - 12 female

1шт.

20

S219883

TUBE,20, 3.38" L

LINE, hydraulic

1шт.

21

S208827

LINE, hydraulic 1.25" OD x 25, 6" L

1шт.

22

S209396

VALVE

check

1шт.

23

218-5235

ELBOW,90 Degree, 1 5/8"-12, 37 Degree x 1 5/8"-12, 37 Degree Fem Sw

- 90 degrees swivel 1-5/18" - 12 male x 1-5/8" - 12 female

1шт.

24

S202582

LINE

HOSE, low pressure - (Bulk) - 1 piece 1-1/4" ID x 9" long

1шт.

25

S601957

COOLER

oil

1шт.

26

S93266

CLAMP

tube

7шт.

27

S225957

BRACKET

1шт.

28

S98324

CLAMP

tube

3шт.

29

S98267

BRACKET

2шт.

30

S226000

BRACKET

1шт.

31

S226010

BRACKET

1шт.

32

131-70

NUT,1/2"-13, GB

NUT - 1/2" - 13 NC

8шт.

33

196-15

WASHER,17/32" x 1 1/6" x .134"

lock

8шт.

34

113-421

BOLT,Hex, 1/2" - 13 x 2", Gr 5

8шт.

35

REF

INSTRUCTION

VALVE, 4 spool main - (For breakdown, see Figure 200)

1шт.

36

REF

INSTRUCTION

VALVE, 4 spool main - (For breakdown, see Figure 198)

1шт.

37

REF

INSTRUCTION

VALVE, 1 spool main - (For breakdown, see Figure 168)

1шт.

38

218-5224

TEE,37º, 1 5/8"-12 x 1 5/8"-12, Fem Sw Run

- (1-1/2" tube) - 1-5/8" - 12 male x 1-5/8" - 12 male x 1-5/8" - 12 female - 37 degrees flared

1шт.

39

218-759

CAP,37 Degree, 1 5/8"-12

- (1-1/4" tube) - 1-5/8" - 12 female

1шт.
