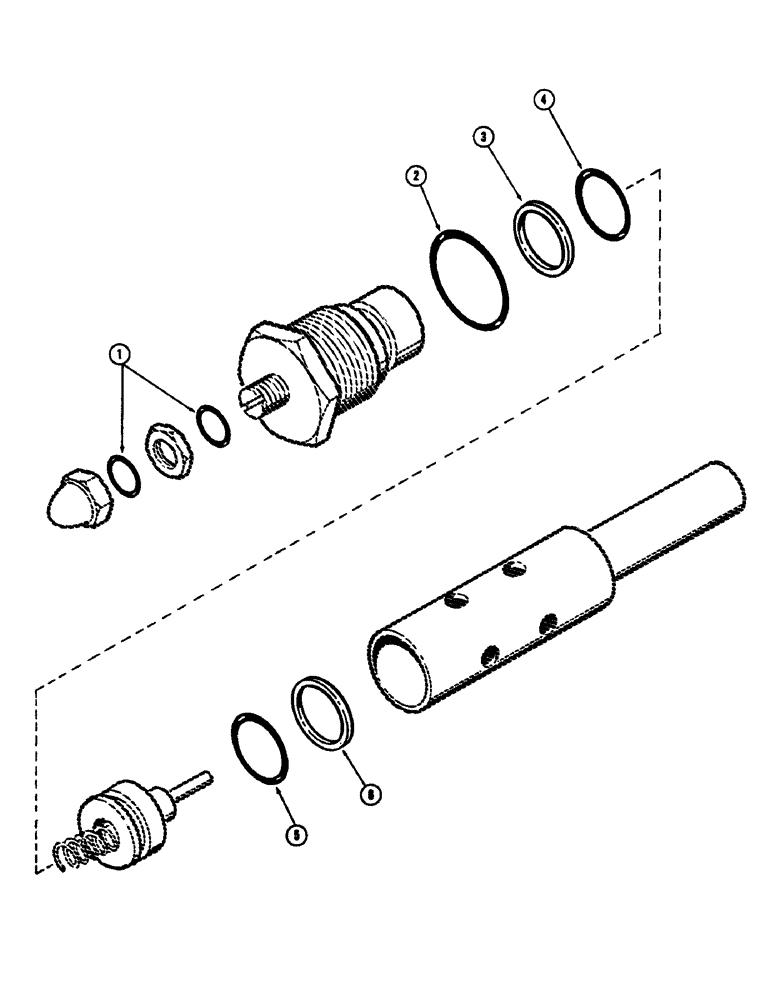

Запчасти Case 880B (204) - MAIN RELIEF CARTRIDGE (07) - HYDRAULIC SYSTEM

S62112

CARTRIDGE

main relief valve - (Set at 2050 PSI), Includes: Ref. 1 - 6

2шт.

1

S116070

O-RING

"O" RING

2шт.

Part of seal kit, P/N S117195

1шт.

2

A7623

O-RING,0.139" Thk x 0.984" ID, -214, Cl 5, 75 Duro

"O" RING

1шт.

Part of seal kit, P/N S117195

1шт.

3

S84196

BACK-UP RING,9/16" ID x 3/4" OD x 0.052"

back up

1шт.

Part of seal kit, P/N S117195

1шт.

4

S5706

O-RING,0.562" ID x 0.75" OD x 0.93"

"O" RING

1шт.

Part of seal kit, P/N S117195

1шт.

5

S6476

O-RING,0.103" Thk x 0.487" ID, -112, Cl 6, 90 Duro

"O" RING

1шт.

Part of seal kit, P/N S117195

1шт.

6

S84098

BACK-UP RING,1/2" ID x 11/16" OD

back up

1шт.

Part of seal kit, P/N S117195

1шт.

7

S117195

KIT

seal, Includes: Ref. 1 thru 6

1шт.
