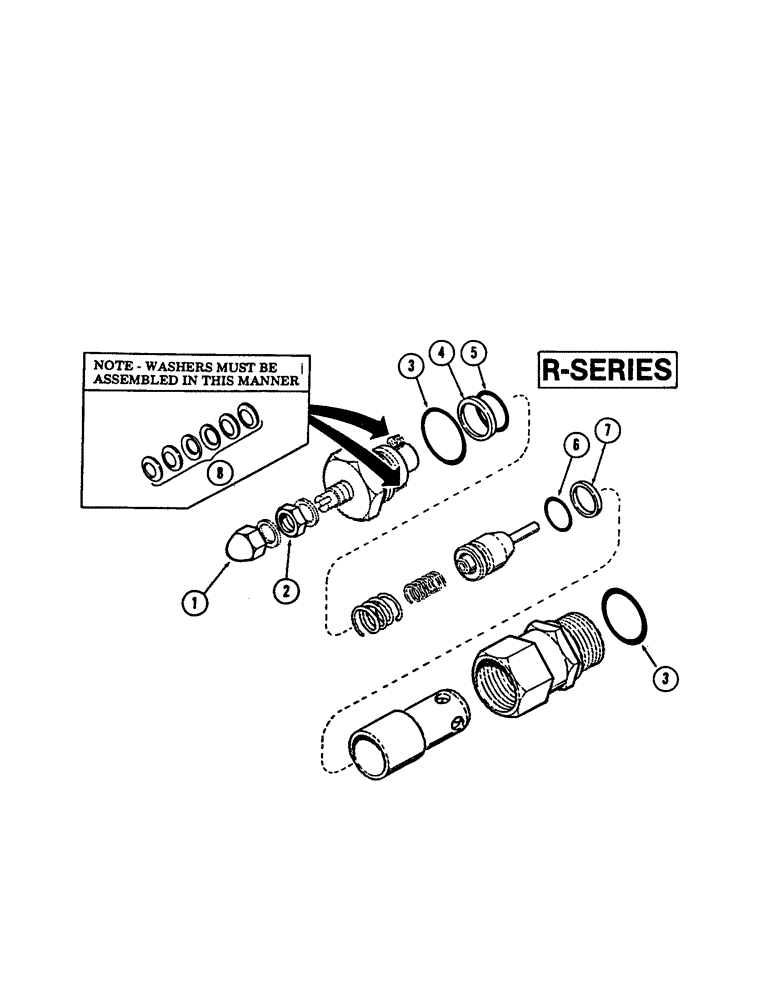

Запчасти Case 880B (202[1]) - PORT RELIEF (07) - HYDRAULIC SYSTEM

-

S239214

VALVE

CARTRIDGE, "R" series port relief valve - set at 3000 PSI, Includes: Ref. 1 - 8

2шт.

-

S239215

VALVE

CARTRIDGE, "R" series port relief valve - set at 2500 PSI, Includes: Ref. 1 - 8

1шт.

1

S116073

CAP

NUT - acorn, port relief ("R" series)

1шт.

2

S116072

JAM NUT

- jam, port relief ("R" series)

1шт.

3

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

"O" RING, port relief ("R" series)

2шт.

Part of seal kit, P/N S117193

1шт.

4

S83071

BACK-UP RING

RING - back up, port relief ("R" series)

1шт.

Part of seal kit, P/N S117193

1шт.

5

S6574

O-RING,0.139" Thk x 0.734" ID, -210, Cl 6, 90 Duro

"O" RING, port relief ("R" series)

1шт.

Part of seal kit, P/N S117193

1шт.

6

S6476

O-RING,0.103" Thk x 0.487" ID, -112, Cl 6, 90 Duro

"O" RING, port relief ("R" series)

1шт.

Part of seal kit, P/N S117193

1шт.

7

S84098

BACK-UP RING,1/2" ID x 11/16" OD

- back up, port relief ("R" series)

1шт.

Part of seal kit, P/N S117193

1шт.

8

NSS

NOT SOLD SEPARAT

WASHER, port relief ("R" series)

12шт.

9

S117193

SEAL KIT

- seals, Includes: Ref. 3 thru 7, port relief ("R" series)

1шт.
