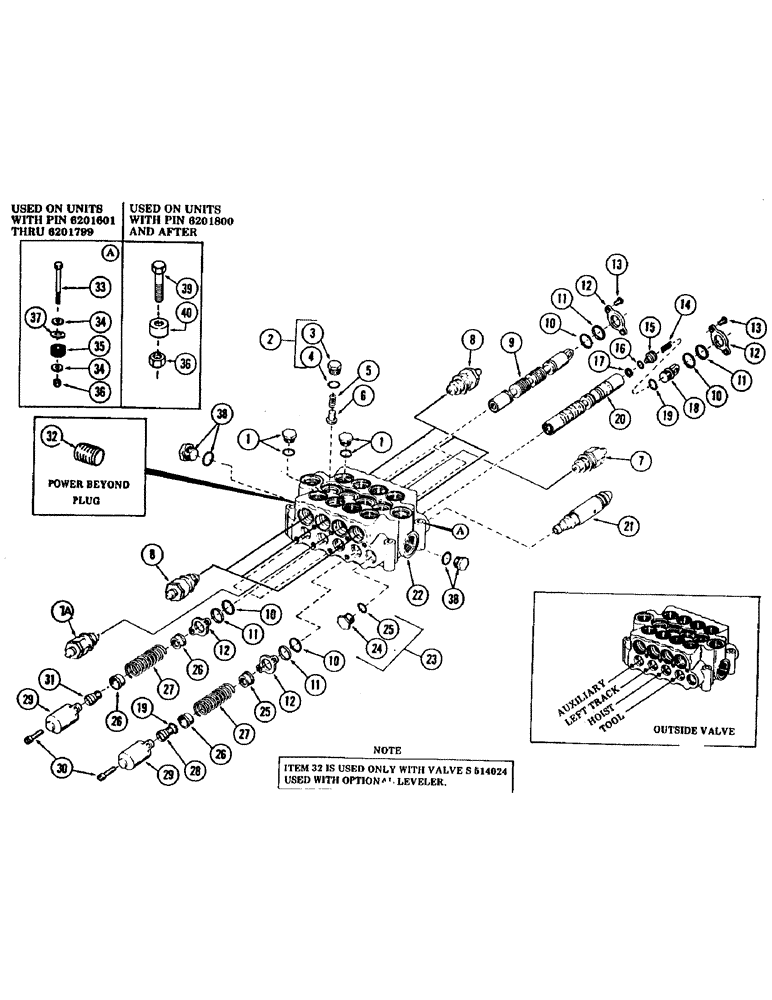

Запчасти Case 880B (200) - 4-SPOOL MAIN CONTROL VALVE, (USED WITH HOIST, TOOL, LEFT TRACK AND AUX. CIRCUITS) (07) - HYDRAULIC SYSTEM

S514023

VALVE, 4-spool main control - (Outside valve) - (Used without optional leveler), Includes: Ref. 1 - 32

1шт.

S514024

VALVE, 4-spool main control - (Outside valve) - (Used with optional leveler), Includes: Ref. 1 - 32

1шт.

1

S8985

PLUG

4шт.

S6069

O-RING,1.171" ID x 0.116" Width

"O" RING - 1.171" ID x 1.403" OD

4шт.

2

S105089

PLUG

ASSEMBLY, Includes: Ref. 3 and 4

4шт.

3

NSS

NOT SOLD SEPARAT

PLUG

4шт.

4

A7623

O-RING,0.139" Thk x 0.984" ID, -214, Cl 5, 75 Duro

"O" RING

4шт.

5

S13715

SPRING

4шт.

6

S13716

VALVE POPPET

POPPET

4шт.

7

S81689

VALVE

CARTRIDGE, port relief - set at 3000 PSI - (For breakdown, see Figure 202)

1шт.

7a

S239214

VALVE

CARTRIDGE, port relief - set at 3000 PSI

1шт.

8

REF

INSTRUCTION

CARTRIDGE, port relief - set at 2500 PSI - (For breakdown, see Figure 202)

6шт.

9

NSS

NOT SOLD SEPARAT

SPOOL

3шт.

10

A7623

O-RING,0.139" Thk x 0.984" ID, -214, Cl 5, 75 Duro

"O" RING

8шт.

11

S62092

WIPER

8шт.

12

S13829

PLATE

seal

8шт.

13

166-25

12 PT SCREW,Flg, 5/16" - 18 x 7/8", Gr 8

SCREW, machine - 3/8" NC x 1/2"

8шт.

14

S62189

SPRING

1шт.

15

S62291

VALVE POPPET

POPPET

1шт.

16

S6476

O-RING,0.103" Thk x 0.487" ID, -112, Cl 6, 90 Duro

"O" RING - .487" ID x .687" OD

1шт.

17

S84098

BACK-UP RING,1/2" ID x 11/16" OD

back up

1шт.

18

S62289

END

plunger

1шт.

19

S6061

O-RING,0.639" ID x 0.09" Width

"O" RING - .644" ID x .818" OD

2шт.

20

NSS

NOT SOLD SEPARAT

SPOOL

1шт.

21

REF

INSTRUCTION

CARTRIDGE, main relief - set at 2650 PSI - (For breakdown, see Figure 204)

1шт.

22

NSS

NOT SOLD SEPARAT

HOUSING

1шт.

23

S105090

PLUG

ASSEMBLY, Includes: Ref. 24 and 25

1шт.

24

NSS

NOT SOLD SEPARAT

PLUG

1шт.

25

A7623

O-RING,0.139" Thk x 0.984" ID, -214, Cl 5, 75 Duro

"O" RING

1шт.

26

S62288

SEAT

spring

8шт.

27

S104822

SPRING

- (Tool hoist - L. Track)

3шт.

S81915

VALVE SPRING

SPRING - (Used only on aux. valves spool)

1шт.

28

S62290

BOLT

special

1шт.

29

S62278

CAP

plunger

4шт.

30

61-616

HEX SOC SCREW,3/8"-16 x 1"

BOLT - 3/8" NC x 1" Gr 8 - (Socket head)

8шт.

31

S62292

BOLT

special

3шт.

32

221-845

PLUG,Hex Soc, 3/4"-14

1шт.

33

113-432

BOLT,Hex, 1/2" - 13 x 4-3/4", Gr 5

(Mounts valve to turntable) Hex, 1/2"-13 x 4 3/4", G5

4шт.

34

196-10

WASHER,.521" x 2" x .134", HDN

special

8шт.

35

S49527

MOUNTING PARTS

MOUNT, neoprene

4шт.

36

131-70

NUT,1/2"-13, GB

NUT, self locking - 1/2" NC

4шт.

37

195-105

WASHER,7/16"

flat

4шт.

38

273916

PLUG,Hex, 1-5/16" - 12 ORB

(2 used with S514023) - (1 used with S514024) Hex Hd, 1 5/16"-12 ORB

1шт.

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

"O" RING

1шт.

39

113-432

BOLT,Hex, 1/2" - 13 x 4-3/4", Gr 5

(Mounts valve to turntable) Hex, 1/2"-13 x 4 3/4", G5

3шт.

40

S113313

SPACER

3шт.
