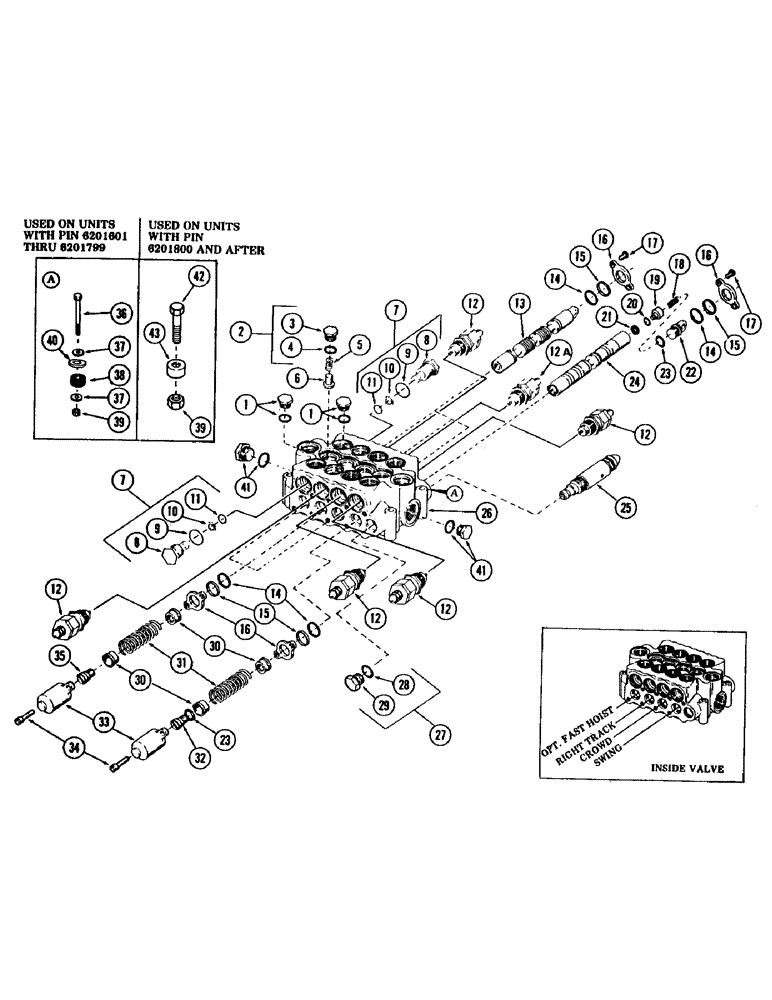

Запчасти Case 880B (198) - 4-SPOOL MAIN CONTROL VALVE, (USED WITH SWING, CROWD, RIGHT TRACK & OPTIONAL FAST HOIST) (07) - HYDRAULIC SYSTEM

S514022

VALVE, 4-spool main control - (INSIDE VALVE), Includes: Ref. 1 - 35

1шт.

1

S89985

BACK-UP RING

PLUG

4шт.

S6069

O-RING,1.171" ID x 0.116" Width

"O" RING - 1.171" ID x 1.403" OD

1шт.

2

S105089

PLUG

ASSEMBLY, Includes: Ref. 3 and 4

4шт.

3

NSS

NOT SOLD SEPARAT

PLUG

1шт.

4

A7623

O-RING,0.139" Thk x 0.984" ID, -214, Cl 5, 75 Duro

"O" RING

1шт.

5

S13715

SPRING

4шт.

6

S13716

VALVE POPPET

POPPET

4шт.

7

S81690

PLUG

port overload, Includes: Ref. 8 - 11

2шт.

8

NSS

NOT SOLD SEPARAT

PLUG

1шт.

9

S6069

O-RING,1.171" ID x 0.116" Width

"O" RING - 1.171" ID x 1.403" OD

1шт.

10

S93829

BACK-UP RING,0.609" ID x 0.052" Width

back up

1шт.

11

S5706

O-RING,0.562" ID x 0.75" OD x 0.93"

"O" RING - .549" ID x .750" OD

1шт.

12

S85640

VALVE

CARTRIDGE, port relief - set at 2500 PSI - (For breakdown, see Figure 202)

5шт.

12a

S239215

VALVE

CARTRIDGE, port relief - set at 2500 PSI

1шт.

13

NSS

NOT SOLD SEPARAT

SPOOL

3шт.

14

A7623

O-RING,0.139" Thk x 0.984" ID, -214, Cl 5, 75 Duro

"O" RING

8шт.

15

S62092

WIPER

8шт.

16

S13829

PLATE

seal

8шт.

17

166-25

12 PT SCREW,Flg, 5/16" - 18 x 7/8", Gr 8

SCREW, machine - 3/8" NC x 1/2"

8шт.

18

S62189

SPRING

1шт.

19

S62291

VALVE POPPET

POPPET

1шт.

20

S6476

O-RING,0.103" Thk x 0.487" ID, -112, Cl 6, 90 Duro

"O" RING - .487" ID x .687" OD

1шт.

21

S84098

BACK-UP RING,1/2" ID x 11/16" OD

back up

1шт.

22

S62289

END

PLUNGER

1шт.

23

S6061

O-RING,0.639" ID x 0.09" Width

"O" RING - .644" ID x .818" OD

1шт.

24

NSS

NOT SOLD SEPARAT

SPOOL

1шт.

25

REF

INSTRUCTION

CARTRIDGE, main relief - set at 2500 PSI - (For breakdown, see Figure 204)

1шт.

26

NSS

NOT SOLD SEPARAT

HOUSING

1шт.

27

S105090

PLUG

ASSEMBLY, Includes: Ref. 28 and 29

1шт.

28

NSS

NOT SOLD SEPARAT

PLUG

1шт.

29

A7623

O-RING,0.139" Thk x 0.984" ID, -214, Cl 5, 75 Duro

"O" RING

1шт.

30

S62288

SEAT

spring

8шт.

31

S113620

SPRING

4шт.

32

S62290

BOLT

special

1шт.

33

S62278

CAP

plunger

4шт.

34

61-616

HEX SOC SCREW,3/8"-16 x 1"

BOLT - 3/8" NC x 1" Gr 8 - (Socket head)

8шт.

35

S62292

BOLT

special

1шт.

36

113-432

BOLT,Hex, 1/2" - 13 x 4-3/4", Gr 5

(Mounts valve to turntable) Hex, 1/2"-13 x 4 3/4", G5

4шт.

37

196-10

WASHER,.521" x 2" x .134", HDN

special

8шт.

38

S49527

MOUNTING PARTS

MOUNT, neoprene

4шт.

39

131-70

NUT,1/2"-13, GB

NUT, self locking - 1/2" NC

4шт.

40

195-105

WASHER,7/16"

flat

4шт.

41

273916

PLUG,Hex, 1-5/16" - 12 ORB

2шт.

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

"O" RING

1шт.

42

113-432

BOLT,Hex, 1/2" - 13 x 4-3/4", Gr 5

(Mounts valve to turntable) Hex, 1/2"-13 x 4 3/4", G5

3шт.

43

S113313

SPACER

3шт.
