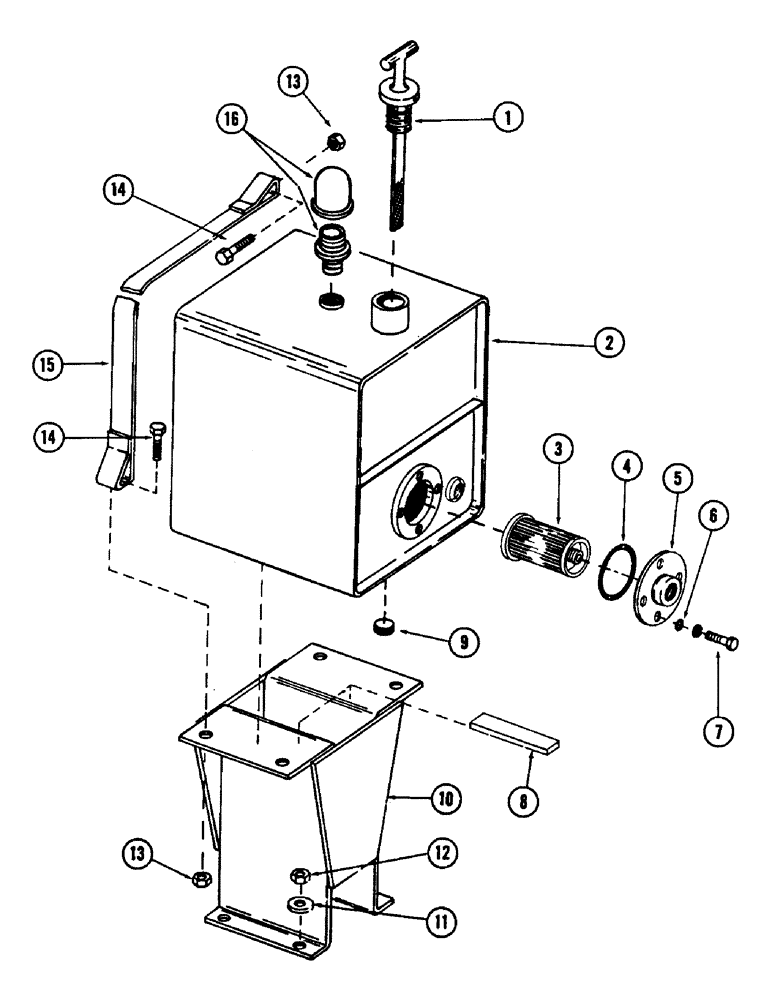

Запчасти Case 880B (192) - HYDRAULIC OIL TANK AND RELATED PARTS (07) - HYDRAULIC SYSTEM

1

S93220

DIPSTICK

ASSEMBLY

1шт.

2

S514390

TANK

hydraulic oil (Supersedes S506161)

1шт.

3

S513507

FILTER

SCREEN, hydraulic oil

1шт.

4

S6334

O-RING,0.139" Thk x 4.234" ID, -244, Cl 5, 75 Duro

"O" RING - 4.234" ID x 4.500" OD

1шт.

5

S200926

FLANGE, filter mounting

1шт.

5

D26270

WASHER, SEALING

WASHER, seal

4шт.

7

113-172

BOLT,Hex, 5/16" - 18 x 1", Gr 8

4шт.

8

S94118

PAD

rubber

2шт.

9

221-845

PLUG,Hex Soc, 3/4"-14

pipe - 3/4" NPT

1шт.

10

S506119

BRACKET, mounting

1шт.

11

195-105

WASHER,7/16"

flat - 1/2"

4шт.

12

131-70

NUT,1/2"-13, GB

NUT - 1/2" - 13 NC

4шт.

13

131-52

NUT,3/8"-16, GC

NUT - 3/8" - 16 NC

4шт.

14

113-219

BOLT,Hex, 3/8" - 16 x 2", Gr 5

- 3/8" - 16 NC x 1-3/4"

4шт.

15

S92073

STRAP

BRACKET, tank mounting

2шт.

16

S115101

ADAPTER

(Supersedes S91864)

1шт.

S115102

AIR CLEANER

FILTER - air (Supersedes S91864)

1шт.
