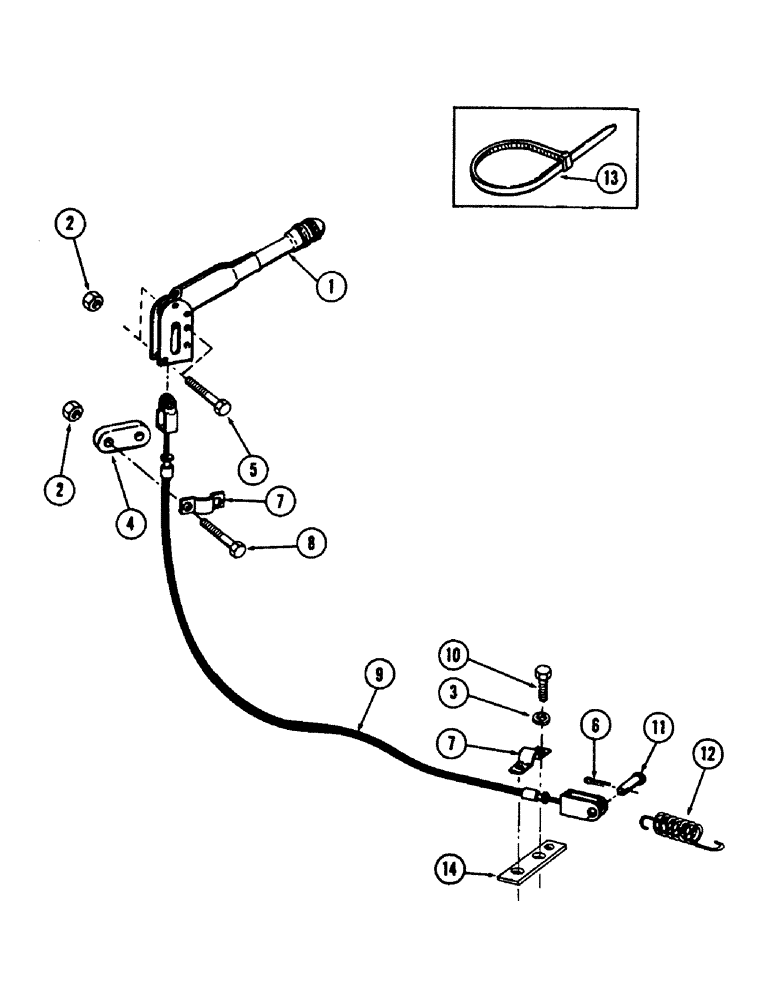

Запчасти Case 880B (190) - SWING BRAKE CONTROL (07) - HYDRAULIC SYSTEM

1

S26639

LEVER

hand brake

1шт.

2

131-52

NUT,3/8"-16, GC

NUT, self locking - 3/8" NC

4шт.

3

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

4

S99304

SPACER

1шт.

5

113-219

BOLT,Hex, 3/8" - 16 x 2", Gr 5

2шт.

6

132-24

COTTER PIN,3/32" x 1/2"

PIN, SPLIT (COTTER), 3/32" x 1/2"

1шт.

7

A55980

CLAMP

2шт.

8

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

2шт.

9

S33995

CABLE

brake

1шт.

10

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

2шт.

11

S10715

PIN

clevis - 1/4" x .851" grip length

1шт.

12

S202938

SPRING

return - (See ref 12 on figure 154)

1шт.

13

S73387

CLIP

CABLE, tie

1шт.

14

S68977

CLAMP

SPACER

1шт.

S504696

CABLE

swing brake, 60" riser

1шт.
