Запчасти Case 880B (176) - SWING INLINE RELIEF VALVE (07) - HYDRAULIC SYSTEM

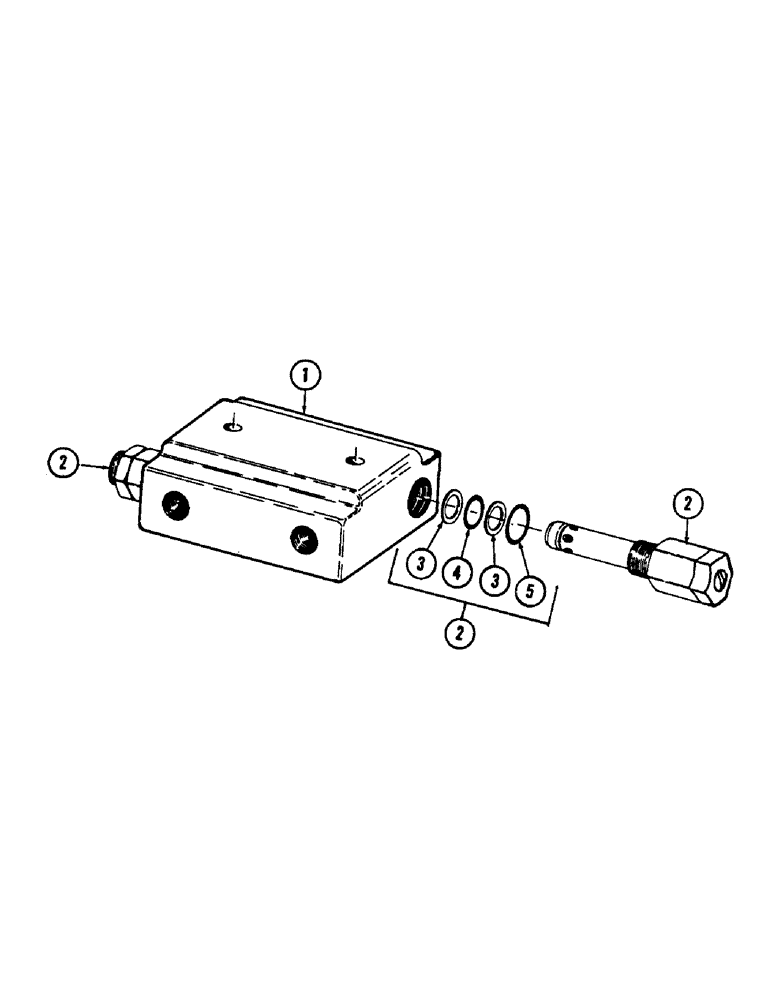

Схема запчастей Case 880B - (176) - SWING INLINE RELIEF VALVE (07) - HYDRAULIC SYSTEM

Артикул

Название

Примечание

Количество

S236820

VALVE

swing inline relief, Includes: Ref. 1 - 5

1шт.

1

S114840

HOUSING

valve

1шт.

2

S73968

CARTRIDGE

relief, Includes: Ref. 3 - 5

2шт.

3

D24036

WASHER

RING, back-up

2шт.

4

S6483

O-RING,0.103" Thk x 0.924" ID, -119, Cl 6, 90 Duro

"O" RING - .924" ID x 1.125" OD

1шт.

5

D54806

O-RING,0.139" Thk x 1.046" ID, -215, Cl 5, 75 Duro

"O" RING - 1.046" ID x 1.312" OD

1шт.

Выбрано товаров: 6
