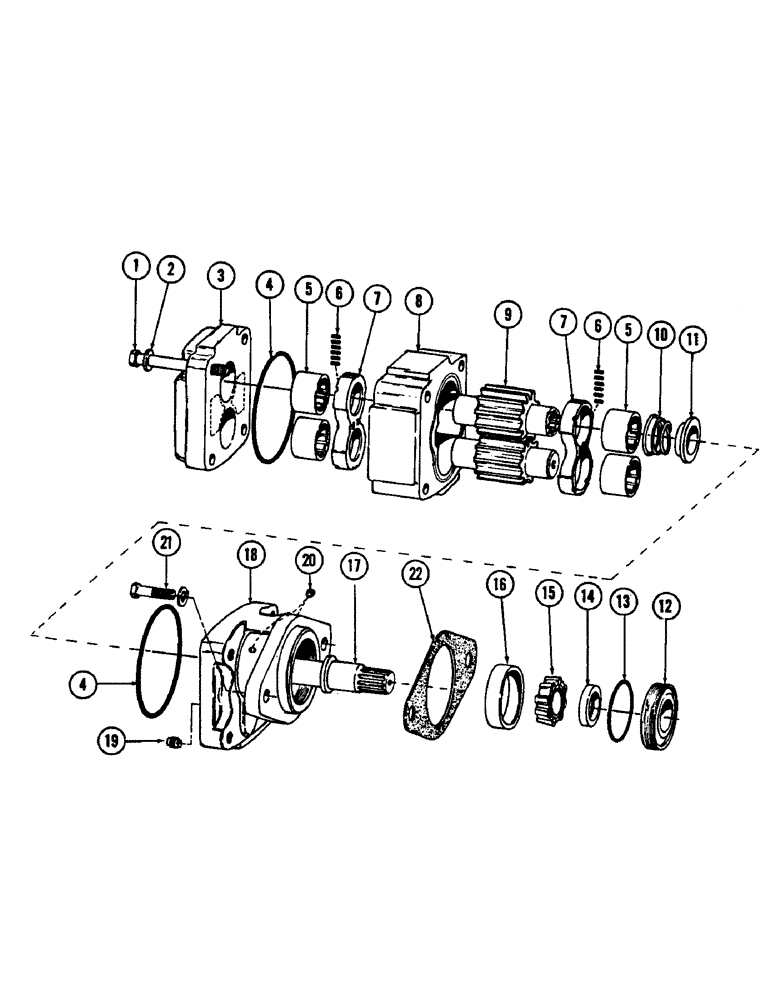

Запчасти Case 880B (174) - SWING MOTOR (07) - HYDRAULIC SYSTEM

S33530

MOTOR

turntable swing, Includes: Ref. 1 - 20

1шт.

1

13-1092

BOLT,Hex, 5/8" - 11 x 5-3/4", Gr 5

- 5/8" - 11 NC x 5-3/4"

4шт.

2

D31957

WASHER

flat - 21/32"

4шт.

3

S61750

COVER

port end

1шт.

4

D41391

O-RING

"O" RING - 4.250" ID x 4.500" OD

2шт.

5

D31942

ROLLER BEARING,1.29" ID x 1.9375" OD x 1.125"

BEARING, roller

4шт.

6

D35673

SEAL

pocket - 6" long - (Bulk)

1шт.

7

D31955

PLATE

thrust

2шт.

8

S67295

HOUSING

gear

1шт.

9

S67298

GEAR-SET

GEAR SET

1шт.

10

D31953

VALVE SPRING

SPRING

1шт.

11

D31952

BUSHING

shaft

1шт.

12

S70415

RETAINER

RING, retainer

1шт.

13

A14506

O-RING,0.139" Thk x 2.234" ID, -228, Cl 5, 75 Duro

"O" RING - 2.234" ID x 2.500" OD

1шт.

14

S70416

OIL SEAL

high pressure

1шт.

15

D31949

ROLLER BEARING,30.175 mm ID x 21.636 mm

CONE, bearing

1шт.

16

D31948

BEARING CUP,2.5312" OD x 0.6563"

CUP, bearing

1шт.

17

S64277

SHAFT

drive

1шт.

18

S77722

COVER

shaft end

1шт.

19

S61749

VALVE

CHECK ASSEMBLY

2шт.

20

217-433

PLUG,Hex Soc, 1/4" - 18 NPTF

Pipe (Recessed hex head) Hex Soc, 1/4"-18 NPTF

2шт.

21

13-822

BOLT,Hex, 1/2" - 13 x 1-3/8", Gr 5, Full Thd

Motor mounting Hex, 1/2"-13 x 1 3/8", G5, Full Thd

2шт.

92-8

LOCK WASHER,1/2"

2шт.

22

S203387

GASKET

1шт.
