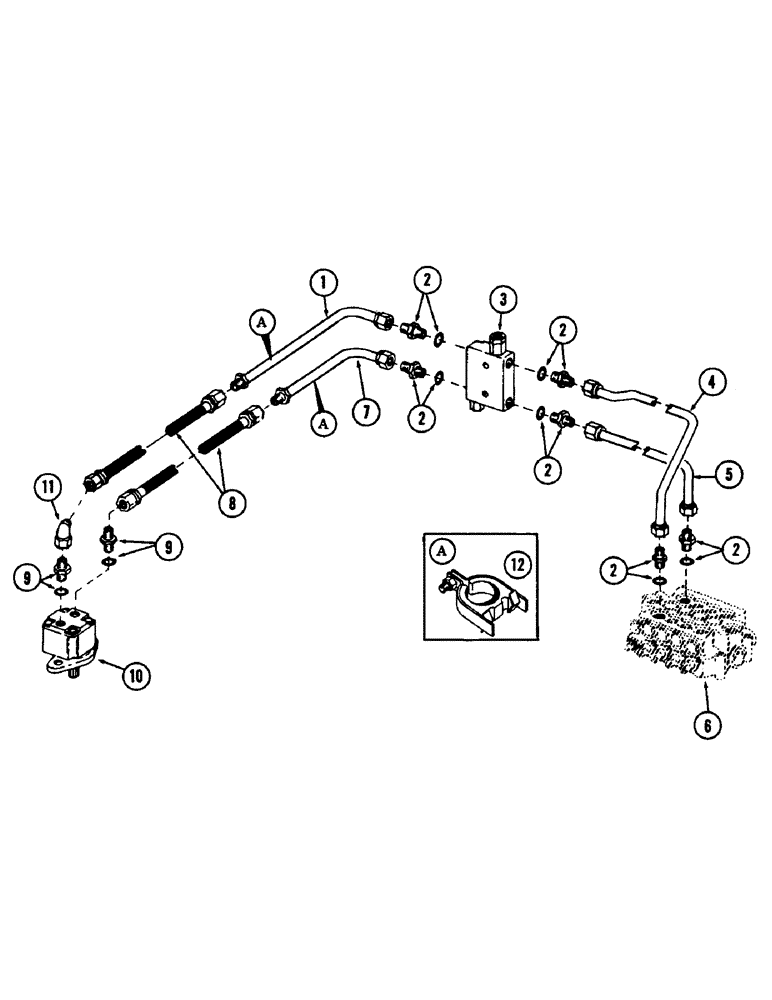

Запчасти Case 880B (172) - SWING MOTOR TUBING (07) - HYDRAULIC SYSTEM

1

S502077

TUBE,1.25" OD x 14, 5" L

hydraulic

1шт.

2

S7972

CONNECTOR, ELEC

CONNECTOR - (1" tube) - 1-5/16" - 12 male x 1-5/16" - 12 male - 37 degrees flared

6шт.

S6069

O-RING,1.171" ID x 0.116" Width

"O" RING

6шт.

3

REF

INSTRUCTION

VALVE, inline relief - (For breakdown, see Figure 176)

1шт.

4

S502074

LINE,1.25" OD

TUBE, hydraulic

1шт.

5

S502075

TUBE,1.25" OD x 17.43, 5.8" L

hydraulic

1шт.

6

REF

INSTRUCTION

VALVE, 4-spool main hydraulic - (For breakdown, see Figure 198)

1шт.

7

S502076

TUBE,1.25" OD x 12.5, 5" L

hydraulic

1шт.

8

S8628

HOSE

high pressure - 1" ID x 36" long - (With 1-5/16" - 12 female pressed on couplings)

2шт.

9

S7973

CONNECTOR, ELEC

CONNECTOR - (1" tube) - 1-1/16" - 12 male x 1-1/16" - 12 male - 37 degrees flared

2шт.

S6065

RING

"O" RING

2шт.

10

REF

INSTRUCTION

MOTOR, swing - (For breakdown, see Figure 174)

1шт.

11

218-5176

ELBOW,45 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Female JIC

45 degrees swivel - 1-5/16" - 12 male x 1-5/16" - 12 female

1шт.

12

S93266

CLAMP

tube

2шт.
