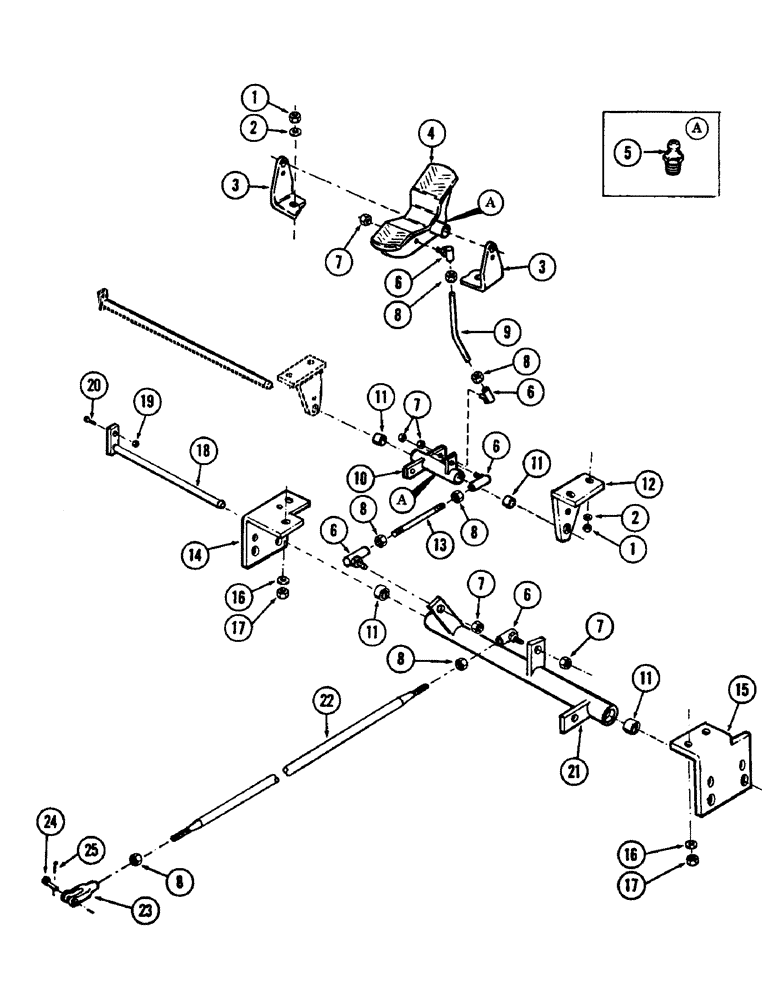

Запчасти Case 880B (170) - PEDAL AND ATTACHING PARTS FOR: SWING (07) - HYDRAULIC SYSTEM

1

131-70

NUT,1/2"-13, GB

NUT, self locking - 1/2" - 13 NC

4шт.

2

95-8

WASHER,1/2"

flat 1/2"

4шт.

3

S226342

BRACKET, foot pedal mounting

1шт.

4

S51104

PEDAL

1шт.

5

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, (straight) 1/4"-28 NPT x .54" lg

3шт.

6

S215594

BALL

JOINT

5шт.

7

131-493

NUT

self locking - 3/8" - 24 NF

5шт.

8

86585245

SPECIAL NUT,JAM, 5/8" - 18

jam - 3/8" - 24 NF

2шт.

9

S229404

ROD

connecting

1шт.

10

S236288

BELLCRANK

1шт.

11

A30586

NEEDLE BEARING

BEARING, needle

4шт.

12

S229382

BRACKET, bellcrank support

1шт.

13

S63198

PISTON ROD

ROD, connecting

1шт.

14

S218940

BRACKET, assembly

1шт.

15

S220257

BRACKET, assembly

1шт.

16

95-8

WASHER,1/2"

flat 1/2"

4шт.

17

131-70

NUT,1/2"-13, GB

NUT, self locking - 1/2" - 13 NC

4шт.

18

S218961

SHAFT ASSY.

SHAFT

1шт.

19

113-17

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

1шт.

20

131-60

LOCK NUT,5/8"-18

NUT, self locking - 1/4" - 20 NC

1шт.

21

S236289

BELLCRANK

1шт.

22

S235852

ROD, connecting

1шт.

23

213-4

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

YOKE

1шт.

24

S10768

PIN

clevis - 3/8" x 1.016" grip length

1шт.

25

132-67

COTTER PIN,5/32" x 3/4"

Pin, Split (Cotter), 5/32" x 3/4"

1шт.
