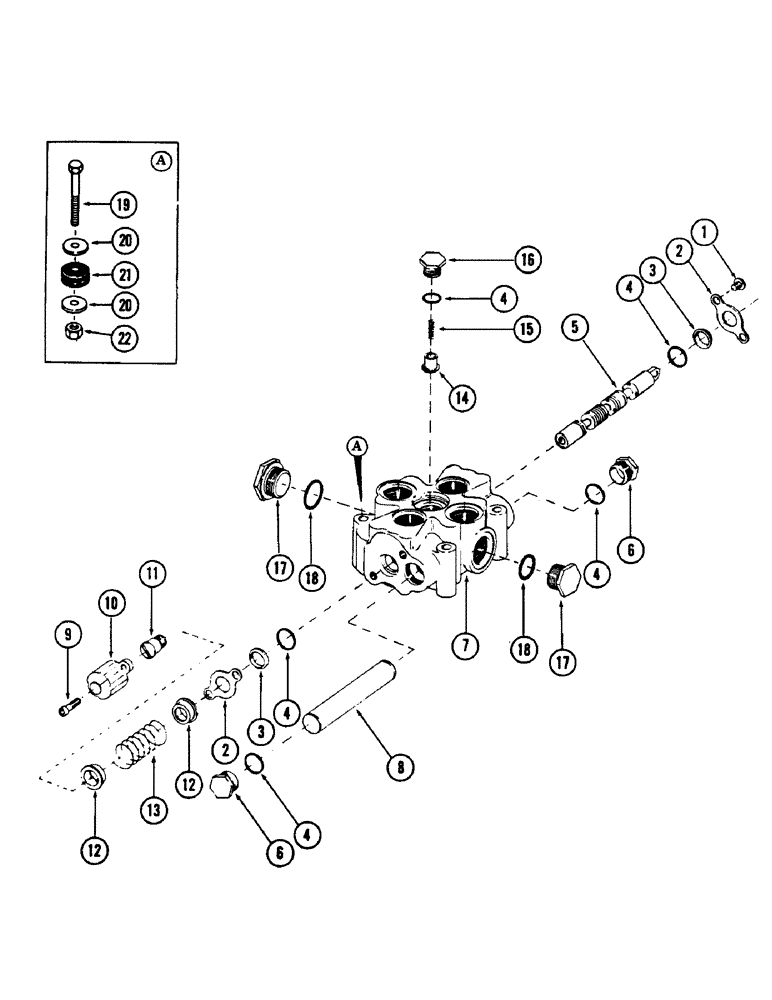

Запчасти Case 880B (168) - 1-SPOOL MAIN CONTROL VALVE (07) - HYDRAULIC SYSTEM

S506848

VALVE, 1-spool main control, Includes: Ref. 1 - 16

1шт.

1

166-25

12 PT SCREW,Flg, 5/16" - 18 x 7/8", Gr 8

SCREW, machine - 3/8" NC x 1/2"

2шт.

2

S13829

PLATE

seal

2шт.

3

S62092

WIPER

2шт.

4

S5807

O-RING,0.984" ID x 1.262" OD x 0.139"

"O" RING - .984" ID x 1.250" OD

5шт.

5

NSS

NOT SOLD SEPARAT

PLUNGER

1шт.

6

S13707

PLUG

2шт.

7

NSS

NOT SOLD SEPARAT

HOUSING, valve

1шт.

8

S62276

PLUG

1шт.

9

61-616

HEX SOC SCREW,3/8"-16 x 1"

BOLT - 3/8" NC x 1" Gr 8 - (Hexagon socket head)

1шт.

10

S62278

CAP

plunger

1шт.

11

S62292

BOLT

- (Special)

1шт.

12

S62288

SEAT

spring

2шт.

13

S104822

SPRING

1шт.

14

S13716

VALVE POPPET

POPPET

1шт.

15

S13715

SPRING

1шт.

16

S13714

PLUG

1шт.

17

273916

PLUG,Hex, 1-5/16" - 12 ORB

2шт.

18

S6069

O-RING,1.171" ID x 0.116" Width

"O" RING - 1.171" ID x 1.403" OD

2шт.

19

113-432

BOLT,Hex, 1/2" - 13 x 4-3/4", Gr 5

(Mounts valve to turntable) Hex, 1/2"-13 x 4 3/4", G5

3шт.

20

196-10

WASHER,.521" x 2" x .134", HDN

flat - (Special)

6шт.

21

S110886

MOUNTING PARTS

MOUNT, lord

3шт.

22

131-70

NUT,1/2"-13, GB

NUT, self locking - 1/2" NC

3шт.
