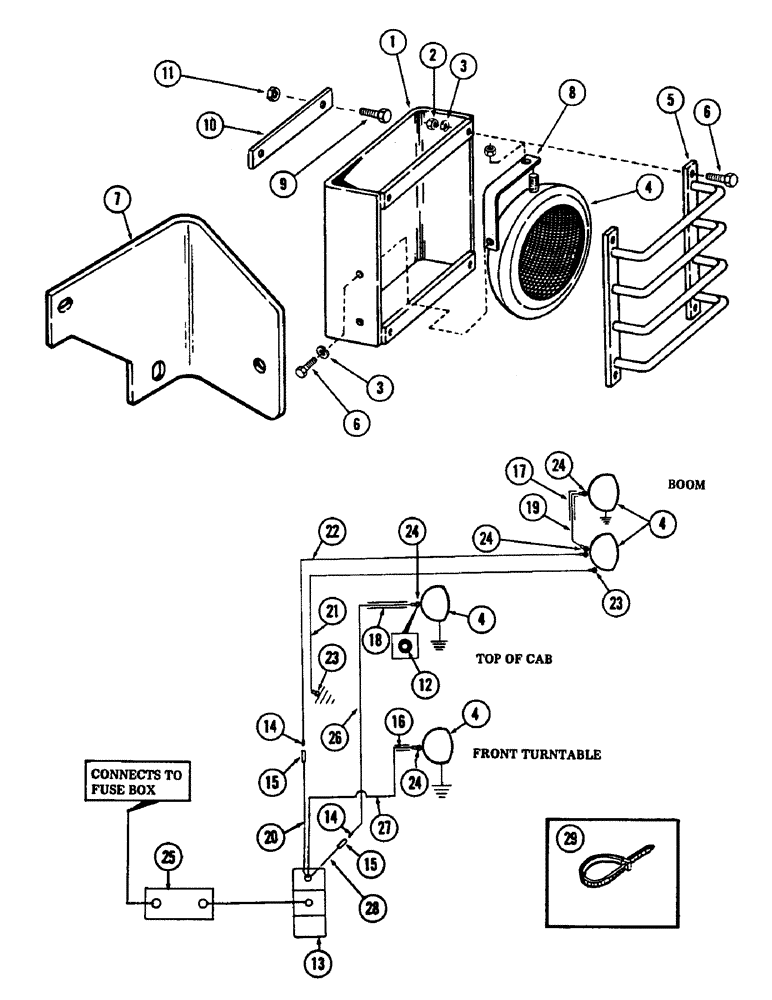

Запчасти Case 880B (282) - WORK LIGHTS AND ATTACHING PARTS (06) - ELECTRICAL SYSTEMS

1

S212579

GUARD

housing

3шт.

2

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

16шт.

3

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

24шт.

4

S203058

LIGHT

work - (12 V) - (Used on units with PIN 6201601 thru 6201616 and 6201618)

4шт.

D51222

LIGHT ASSY.

LIGHT, work - (24 V) - (Used on units with PIN 6201617 and 6201619 and after)

4шт.

5

S212578

PROTECTOR

GUARD, protector

4шт.

6

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

24шт.

7

S511592

BRACKET

GUARD - (Mounts on top of cab)

1шт.

8

S222287

BRACKET

ASSEMBLY

4шт.

9

80087972

BOLT,Hex, 1/2" - 13 x 2 1/2", Gr 5

- 1/2" - 13 NC x 2-1/2" Gr 5

2шт.

10

S86493

SPACER

- (Mounts to front of turntable)

2шт.

11

131-492

NUT,1/2"-13

NUT, self locking - 1/2" - 13 NC

2шт.

12

A61144

GROMMET,1/2" ID x 13/16" Groove Dia, Str Cut

- (In cab)

2шт.

13

S16866

SWITCH

light - (12 V) - (Used on units with PIN 6201601 thru 6201616 and 6201618)

1шт.

S88686

SWITCH

light - (24 V) - (Used on units with PIN 6201617 and 6201619 and after)

1шт.

14

223-191

TERMINAL CONNECTOR,14 - 16

TERMINAL, male wire

2шт.

15

223-260

ELECTRICAL WIRE

TERMINAL, female wire

2шт.

16

S62256

LOOM

- (Bulk) - 1 piece - 10" long

1шт.

17

S62256

LOOM

- (Bulk) - 1 piece - 24" long

1шт.

18

S62256

LOOM

- (Bulk) - 1 piece - 30" long

1шт.

19

S76529

WIRE - (Bulk) - 1 piece - 24" long

1шт.

20

S76529

WIRE - (Bulk) - 1 piece - 40" long

1шт.

21

S74684

CABLE

WIRE - (Bulk) - 1 piece - 400" long

400шт.

22

S109578

WIRE

1шт.

23

223-57

TERMINAL, eyelet - (Into ground wire)

2шт.

24

223-53

EYELET

1шт.

25

S231437

BREAKER

circuit - (12 V) - (Used on units with PIN 6201601 thru 6201616 and 6201618)

1шт.

S115714

BREAKER

circuit - (24 V) - (Used on units with PIN 6201617 and 6201619 and after)

1шт.

26

S76529

WIRE - (Bulk) - 1 piece - 180" long

180шт.

27

S76529

WIRE - (Bulk) - 1 piece - 70" long

1шт.

28

S76529

WIRE - (Bulk) - 1 piece - 35" long

1шт.

29

L18331

CABLE TIE,375.9mm L, Nylon, Black

Clamps

1шт.
