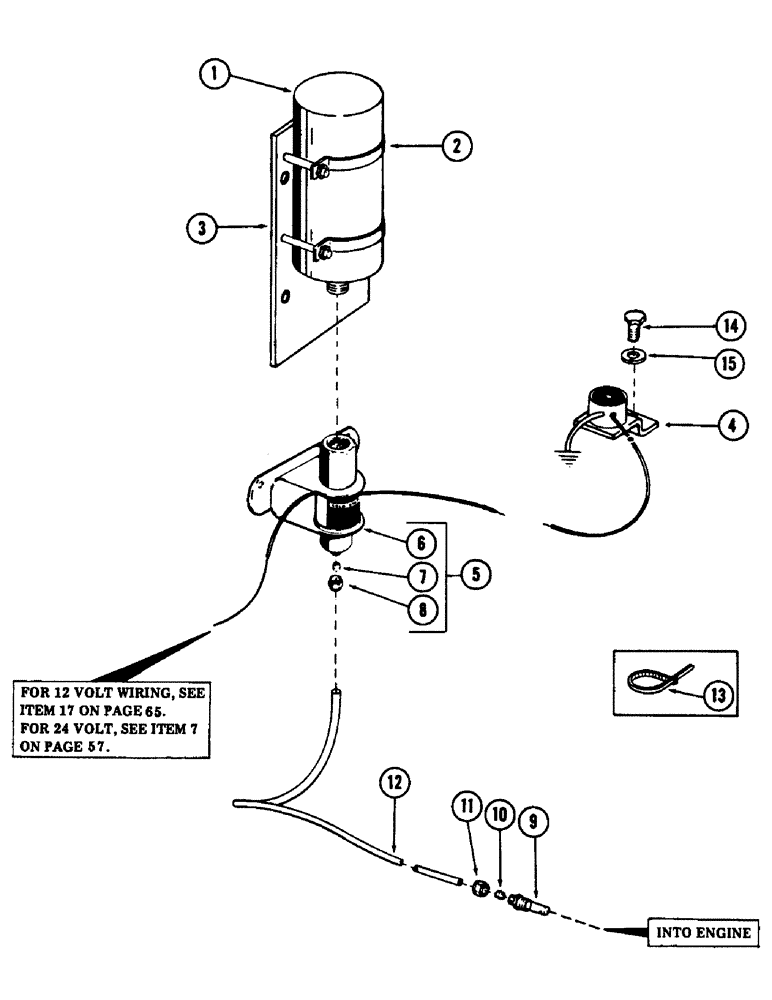

Запчасти Case 880B (064) - COLD WEATHER STARTING KIT (06) - ELECTRICAL SYSTEMS

S205216

THERMOSTART

KIT, cold weather starting, Includes: Ref. 1 - 12

1шт.

1

D55767

CYLINDER

CARTRIDGE, refuel

1шт.

2

NSS

NOT SOLD SEPARAT

CLAMP, cartridge mounting

2шт.

3

NSS

NOT SOLD SEPARAT

BRACKET, cartridge mounting

1шт.

4

NSS

NOT SOLD SEPARAT

THERMOSTAT

1шт.

5

L35280

VALVE

ACTUATOR VALVE ASSEMBLY, Includes: Ref. 6 - 8

1шт.

6

NSS

NOT SOLD SEPARAT

VALVE, actuator

1шт.

7

NSS

NOT SOLD SEPARAT

SLEEVE, flex nut

1шт.

8

NSS

NOT SOLD SEPARAT

NUT, flex tube

1шт.

9

L35282

JET

NOZZLE, manifold

1шт.

10

NSS

NOT SOLD SEPARAT

SLEEVE, flex tube

1шт.

11

NSS

NOT SOLD SEPARAT

NUT, flex tube

1шт.

12

D55947

TUBE

nylon - (Bulk) - 1 piece - 1/8" OD x 60" long

1шт.

13

L18331

CABLE TIE,375.9mm L, Nylon, Black

TIE, cable

2шт.

14

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

- 3/8" - 16 NC x 3/8" Gr 5

1шт.

15

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.
