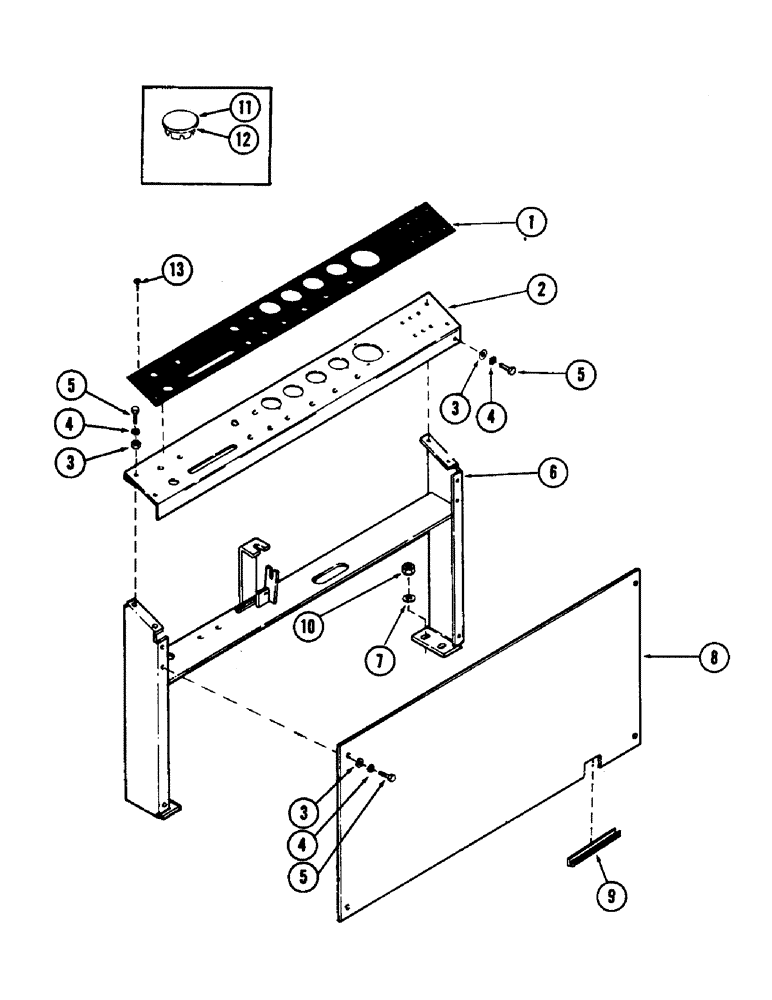

Запчасти Case 880B (062) - INSTRUMENT PANEL AND SUPPORT FOR HAND CONTROL VALVES (06) - ELECTRICAL SYSTEMS

1

S613224

PRODUCT GRAPHIC

DECAL, instrument panel

1шт.

2

S613225

PANEL, instrument - (Used on units with PIN 6201601 thru 6205015)

1шт.

S614998

PANEL, INSTRUMENTS

PANEL, instrument - (Used on units with PIN 6205016 and after)

1шт.

3

195-101

WASHER,3/16"

flat - 1/4"

1шт.

4

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

1шт.

5

113-2

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

1шт.

6

S612800

SUPPORT AND FRAME

1шт.

7

195-33

WASHER,1/2"

flat - 1/2"

4шт.

8

S513091

COVER

1шт.

9

S110733

MOLDING, rubber - (Bulk) 1 piece x 11" long

1шт.

10

131-70

NUT,1/2"-13, GB

NUT, self locking - 1/2" - 13 NC

4шт.

11

353-406

PLUG,Dome, .625" hole, Nylon

hole - 5/8" dia. - (Used to plug hole in instrument panel when emergency shut-off or cold start is not used)

2шт.

12

353-404

PLUG,Dome, .500" hole, Nylon

Used to plug hole in instrument panel when work lights or fast hoist is not used Dome, .500" hole, Nylon

2шт.

13

187-1812

SCREW, self tapping - No. 6 NC

10шт.
