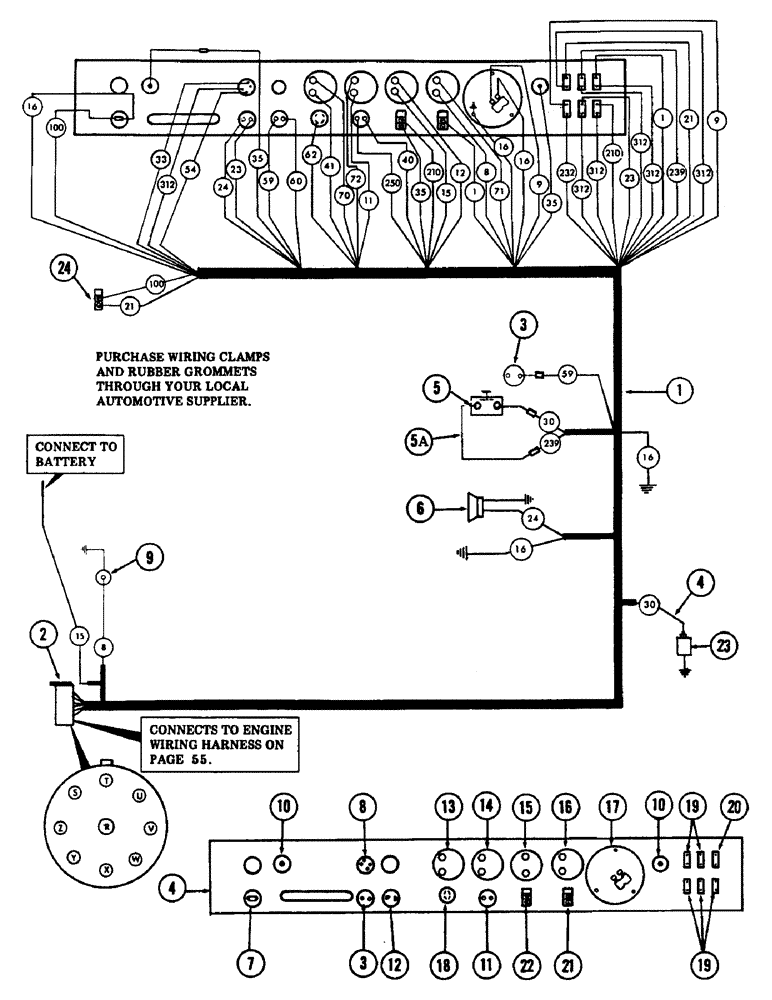

Запчасти Case 880B (058) - INSTRUMENT PANEL AND TURNTABLE WIRING HARNESS, (USED ON UNITS WITH 6201617 & 6201619 & AFTER) (06) - ELECTRICAL SYSTEMS

1

S612911

HARNESS

WIRING HARNESS, instrument panel and turntable - (12 V), Includes: Ref. 2

1шт.

2

S99519

CONTAINER

CONNECTOR, electrical - (9 contact) - (Female)

1шт.

3

REF

INSTRUCTION

SWITCH, heater - (See ref 11 on Figure 106) - (Furnished with heater) - (Optional)

1шт.

4

REF

INSTRUCTION

PANEL, instrument - (See ref 2 on Figure 62)

1шт.

5

S218252

SWITCH

BUTTON, fast hoist - (In left control handle)

1шт.

5a

S218253

HARNESS

fast hoist - (Optional)

1шт.

6

S203189

HORN

1шт.

7

S96034

LIGHT

brake warning

1шт.

S97035

BULB

light

1шт.

REF#7A NOTE OTHER BULBS BAYONET TYPE IS PART S96096 OR BULB L32257 INSTEAD OF GE307.

1шт.

8

S108413

SWITCH

ignition

1шт.

9

REF

INSTRUCTION

SENDING UNIT, fuel guage - (See ref 17 on Figure 72)

1шт.

10

S28822

LAMP

LIGHT, panel

2шт.

71421

BULB,R5W, 12V, 5W

light

2шт.

11

D34924

SWITCH

BUTTON, cold start - (Optional)

1шт.

12

D34924

SWITCH

BUTTON, horn

1шт.

13

S108397

ELECTRICAL GAUGE

GAUGE, oil pressure

1шт.

14

S108395

GAUGE

engine temperature

1шт.

15

S110893

AMMETER

GAUGE, ammeter

1шт.

16

S108399

ELECTRICAL GAUGE

GAUGE, fuel

1шт.

17

S514333

HOURMETER

- (Supersedes S213391)

1шт.

A27780

FLANGE

DAMPER

1шт.

173-62

SCREW, machine - No. 6 NC x 9/16"

3шт.

192-15

LOCK WASHER,Helical Spring, #6, 0.145" ID, CST, ZND

Washer, Lock, #6

3шт.

129-15

NUT,#6-32

3шт.

18

S225028

IGNITION SWITCH

SWITCH, wiper

1шт.

19

S231439

CIRCUIT-BREAKER

BREAKER, circuit - (15 amp)

5шт.

20

S231437

BREAKER

circuit - (25 amp)

1шт.

ANOTHER BREAKER USED(NOT A SUB) PART IS S115872

1шт.

21

S16866

SWITCH

work light - (Optional)

1шт.

22

S88636

IGNITION SWITCH

SWITCH, panel lights

1шт.

23

S231258

VALVE, solenoid - (Optional)

1шт.

24

L11349

SWITCH

micro - (Brake warning)

1шт.
