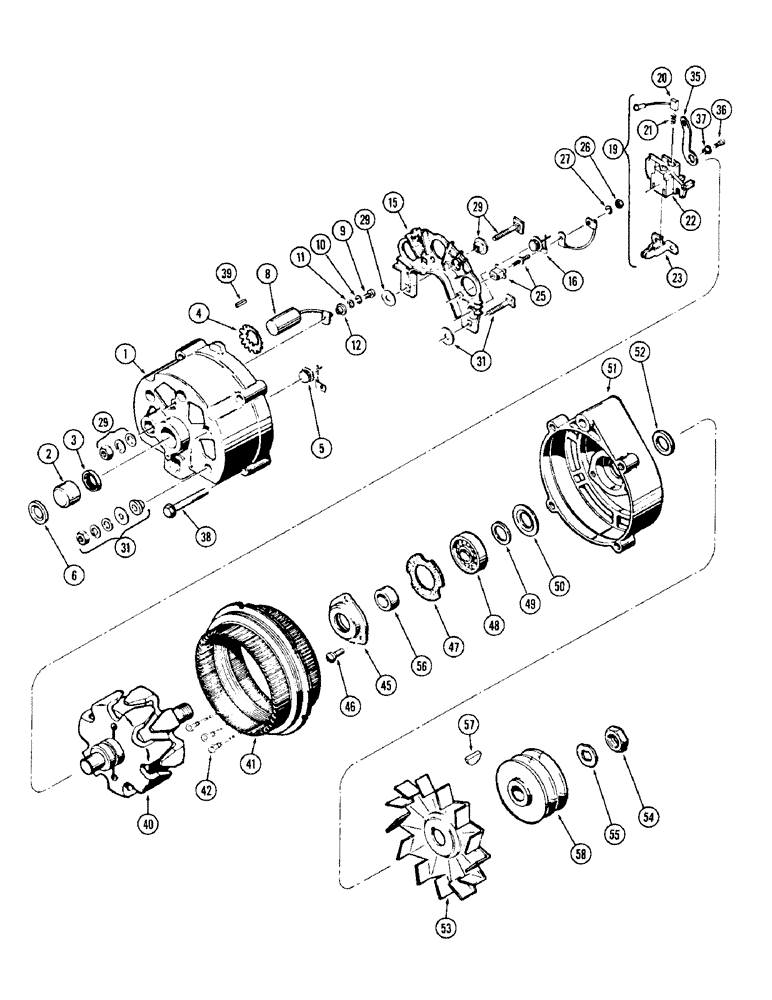

Запчасти Case 880 (074) - S84908 ALTERNATOR, 12 VOLT (06) - ELECTRICAL SYSTEMS

S84908

ALTERNATOR

ALTERNATOR ASSEMBLY - (Delco #1100066) (Less pulley) (For replacement order S615449 generator kit), Includes: Ref. 1 - 58

1шт.

A44798

ALTERNATOR

ALTERNATOR - 24 Volt 40 AMP

1шт.

104021A1R

REMAN-ALTERNATOR

Remanufactured 24 Volt, 35 Amp Alternator

1шт.

104021A1C

CORE-ALTERNATOR

Return Number, 24 Volt, 35 Amp Alternator

1шт.

1

A43671

SPARE PART FRAME ASSEMBLY - slip ring end, Includes: Ref. 2 - 6

1шт.

2

A43679

ROLLER BEARING,0.6699" ID x 0.9375" OD x 0.933"

BEARING - roller

1шт.

3

A43693

SEAL

SEAL - oil

1шт.

4

A43696

RETAINER

RETAINER - capacitor

1шт.

5

A43676

DIODE

DIODE - negative

3шт.

6

NSS

NOT SOLD SEPARAT

PLUG - grease retainer

1шт.

8

A43688

CAPACITOR

CAPACITOR - diode

1шт.

9

174-95

SCREW,Sl Rd Hd, #10 - 32 x 3/8"

SCREW - #10-32 x 3/8" round head

1шт.

10

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

1шт.

11

A42082

SPARE PART WASHER - 3/16 x 7/16 x 1/16"

1шт.

12

A43692

SPARE PART INSULATOR - capacitor terminal

1шт.

15

A43675

SPARE PART HEAT SINK ASSEMBLY - with diodes, Includes: Ref. 16

1шт.

16

NSS

NOT SOLD SEPARAT

DIODE - positive

3шт.

19

A43677

BRUSH

BRUSH ASSEMBLY, Includes: Ref. 20 - 23

2шт.

20

NSS

NOT SOLD SEPARAT

BRUSH

1шт.

21

A43678

SPRING

SPRING - brush

1шт.

22

NSS

NOT SOLD SEPARAT

HOLDER - brush

1шт.

23

NSS

NOT SOLD SEPARAT

TERMINAL

1шт.

25

A43683

SET

TERMINAL - diode

3шт.

26

129-16

NUT,#8-32

NUT, #8-32

3шт.

27

192-16

LOCK WASHER,Helical Spring, #8, 0.17" ID, CST, ZND

Washer, Lock, #8

3шт.

29

A43682

SPARE PART TERMINAL KIT - relay

1шт.

31

A43681

SPARE PART TERMINAL KIT - battery

1шт.

35

A43689

SPARE PART CONNECTOR - relay

1шт.

36

NSS

NOT SOLD SEPARAT

SCREW - #8-32 x 13/16" truss head

1шт.

37

A43691

SPARE PART DAMPENER

1шт.

38

163-6

SCREW,Hex, #10 - 24 x 1 3/4"

BOLT - thru

4шт.

39

138-88

LOCK PIN,3/16" x 1/2", Slotted

PIN, , Dowel 3/16" x 1/2", Slotted

1шт.

40

A43672

SPARE PART ROTOR

1шт.

41

A43673

SPARE PART STATOR ASSEMBLY, Includes: Ref. 42

1шт.

42

A43690

SPARE PART CLIP - terminal

3шт.

45

A25986

LARGE PLATE

PLATE, LARGE SEAL ASSEMBLY - drive end

1шт.

46

173-221

SCREW,Sl Rnd Hd, #10 - 32 x 7/16"

SCREW - #10-32 x 7/16" round head

3шт.

47

A25987

GASKET

SPARE PART GASKET - seal retainer

1шт.

48

A43680

BALL BEARING,0.9843" ID x 2.4409" OD x 0.6693"

BEARING - drive end

1шт.

49

A43125

CRANKSHAFT BEARING

WASHER - felt

1шт.

50

A25988

RETAINER

PLATE - retainer, felt seal

1шт.

51

A43674

SPARE PART FRAME - drive end

1шт.

52

A43685

COLLAR

COLLAR - outside, drive end

1шт.

53

A43686

FAN

FAM

1шт.

54

A25995

NUT

NUT - pulley

1шт.

55

A40792

WASHER

WASHER - lock

1шт.

56

A43684

COLLAR

COLLAR - inside, drive end

1шт.

57

126-115

WOODRUFF KEY,#8, 5/32" x 3/4", HT

WOODRUFF KEY, , Pulley #8, 5/32" x 3/4", HT

1шт.

58

S219716

PULLEY

PULLEY - drive

1шт.
