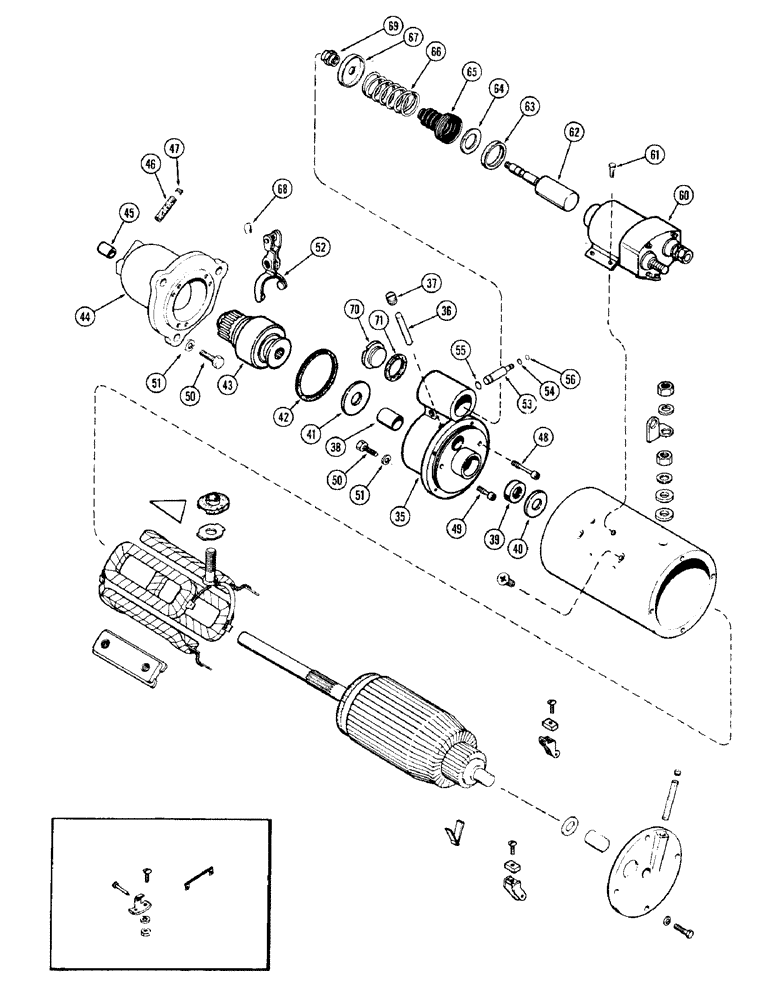

Запчасти Case 880 (066) - R26136 STARTER, 24 VOLT (06) - ELECTRICAL SYSTEMS

R26136

STARTER MOTOR

STARTER ASSEMBLY - (Continued from figure 64), Includes: Ref. 35 - 71

1шт.

RR46156

REMAN-STARTER

Remanufactured Starter

1шт.

RC46156

CORE-STARTER

Return Number

1шт.

35

R21579

HOUSING

HOUSING ASSEMBLY - shift lever, Includes: Ref. 36 - 39

1шт.

36

R15023

WICK

WICK - oil

1шт.

37

221-1849

PLUG

PLUG - oil wick hole

1шт.

38

R21580

BUSHING

BUSHING - 13/16 x 1 x 1-1/4"

1шт.

39

R21582

OIL SEAL

SEAL - oil, 13/16 x 1-3/8 x 3/8"

1шт.

40

D40892

X

WASHER - thrust, 7/8 x 1-3/4 x 3/16"

1шт.

41

R15145

DISC

WASHER - brake, 7/8 x 1-7/8 x 3/16"

1шт.

42

R21562

GASKET

GASKET - drive housing to lever housing

1шт.

43

A42397

DRIVE

DRIVE ASSEMBLY - starter

1шт.

44

A44340

HOUSING

HOUSING ASSEMBLY - drive end, Includes: Ref. 45 - 47

1шт.

45

A40893

BUSHING

BUSHING - 5/8 x 3/4 x 3/4"

1шт.

46

R15023

WICK

WICK - oil

1шт.

47

221-1849

PLUG

PLUG - oil wick hole

1шт.

48

D32488

HEX SOC SCREW,5/16" - 18 x 1.50"

SCREW - 5/16 x 1-1/2" NC hex socket head

1шт.

49

D32489

HEX SOC SCREW,5/16" - 18 x 0.86"

SCREW - 5/16 x 7/8 x 3/8" NC hex socket head

1шт.

50

114-1

BOLT,Hex, 1/4" - 28 x 1", Gr 5

BOLT, Hex, 1/4"-28 x 1", G5

5шт.

51

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

5шт.

52

D32547

LEVER

LEVER - shift

1шт.

53

A42199

PIN

SHAFT - shift lever pivot

1шт.

54

R21574

O-RING,0.244" ID x 0.391" OD x 0.073"

O-RING - 1/4 x 3/8 x 1/16"

1шт.

55

R21573

O-RING,0.369" ID x 0.515" OD x 0.073"

O-RING - 3/8 x 1/2 x 1/16"

1шт.

56

G46146

SNAP RING,#37, Ext

Ring, Snap, , shaft retaining #37, Ext

1шт.

60

A42376

SWITCH

SOLENOID ASSEMBLY - (See figure 72)

1шт.

61

R15159

SCREW,Hex, 1/4" - 20 x 3/8", w/ LW

SCREW - 1/4 x 3/8" NF hex

4шт.

62

A42309

PLUNGER

PLUNGER - solenoid

1шт.

63

A41922

WASHER

WASHER - 7/8 x 1-3/8 x 1/32"

1шт.

64

A43380

BACK-UP RING

RETAINER - spring, inner, 1-3/8" hole

1шт.

65

A42308

BOOT

BOOT - solenoid plunger (Rubber)

1шт.

66

A41242

SPRING

SPRING - plunger return

1шт.

67

A43419

SEAT

RETAINER - spring, outer, 3/8" hole

1шт.

68

G46146

SNAP RING,#37, Ext

Ring, Snap, , plunger retaining #37, Ext

1шт.

69

47-310

RIVET,FH, 3/16" x 5/8"

NUT - retaining, return spring

1шт.

70

R21587

PLUG

PLUG - lever housing

1шт.

71

A41924

GASKET

GASKET - housing plug

1шт.

13-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

BOLT, , Starter to block Hex, 1/2"-13 x 2", G5

2шт.

13-852

BOLT,Hex, 1/2" - 13 x 3-1/4", Gr 5

BOLT, , Starter to block Hex, 1/2"-13 x 3 1/4", G5

1шт.

92-8

LOCK WASHER,1/2"

LOCK WASHER, 1/2"

3шт.

L30674

WASHER

WASHER - 1/2" flat, special

3шт.

321-3709

DECAL

DECAL - starter, danger

1шт.
