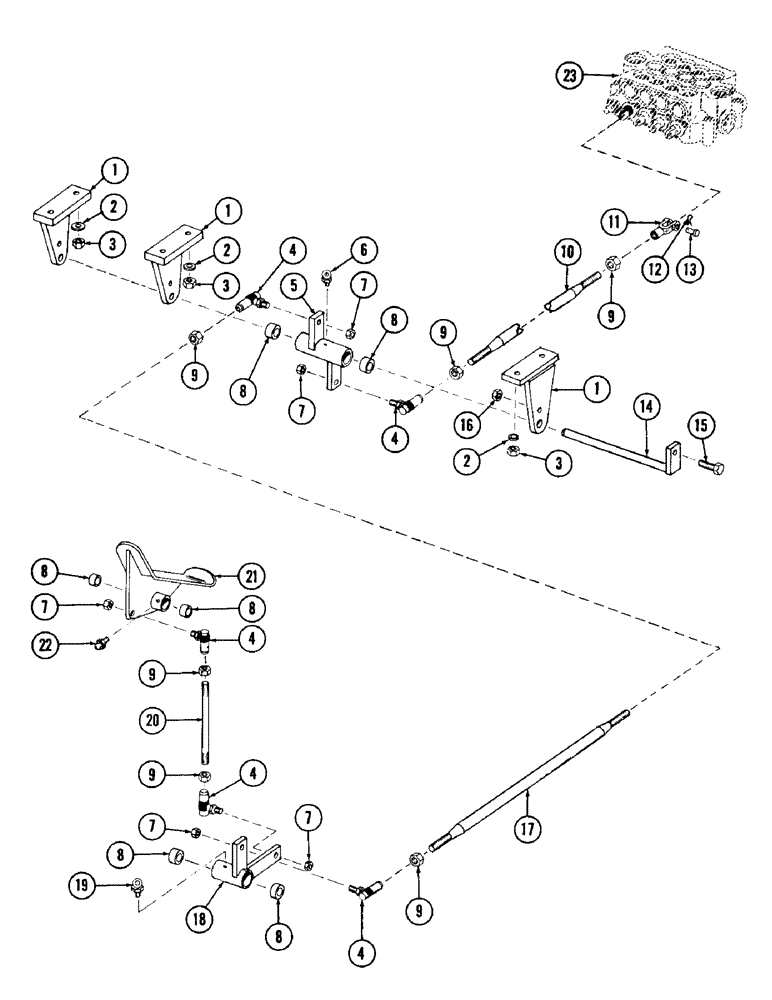

Запчасти Case 880 (246) - TOOL CONTROL AND LINKAGE (05) - UPPERSTRUCTURE CHASSIS

1

S218939

BRACKET

3шт.

2

95-8

WASHER,1/2"

plain 1/2"

6шт.

3

131-10

NUT,1/2"-13, GB

NUT, LOCK, 1/2"-13, GB

6шт.

4

S215594

BALL

JOINT, ball

5шт.

5

S220210

BELLCRANK, Includes: Ref. 6

1шт.

6

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight 1/4"-28 NPT x .54" lg

1шт.

7

131-5

LOCK NUT,3/8"-16, GB

NUT, self locking - 3/8"

5шт.

8

A30586

NEEDLE BEARING

BEARING, needle

6шт.

9

129-16

NUT,#8-32

jam - 3/8" - 24 NF

6шт.

10

S219273

ROD

connecting

1шт.

11

213-4

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

YOKE

1шт.

12

132-67

COTTER PIN,5/32" x 3/4"

Pin, Split (Cotter), 5/32" x 3/4"

1шт.

13

S10767

PIN

clevis - 3/8" dia. x .891" grip length

1шт.

14

S218966

SHAFT

1шт.

15

113-17

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

1шт.

16

131-2

NUT,1/4"-20, GB

NUT, self locking - 1/4" - 20 NC

1шт.

17

S219278

ROD

connecting

1шт.

18

S220211

ARM ASSY.

BELLCRANK, Includes: Ref. 19

1шт.

19

219-43

LUBE NIPPLE,65 Degree Elbow, 1/4" - 28 NPTF

FITTING, lube - 1/4" NPT x (65 degrees)

1шт.

20

S91681

ROD

connecting

1шт.

21

S504577

PEDAL, tool control, Includes: Ref. 22

1шт.

22

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight 1/4"-28 NPT x .54" lg

1шт.

23

REF

INSTRUCTION

VALVE, 4 spool main - (For breakdown, see figure 200)

1шт.
