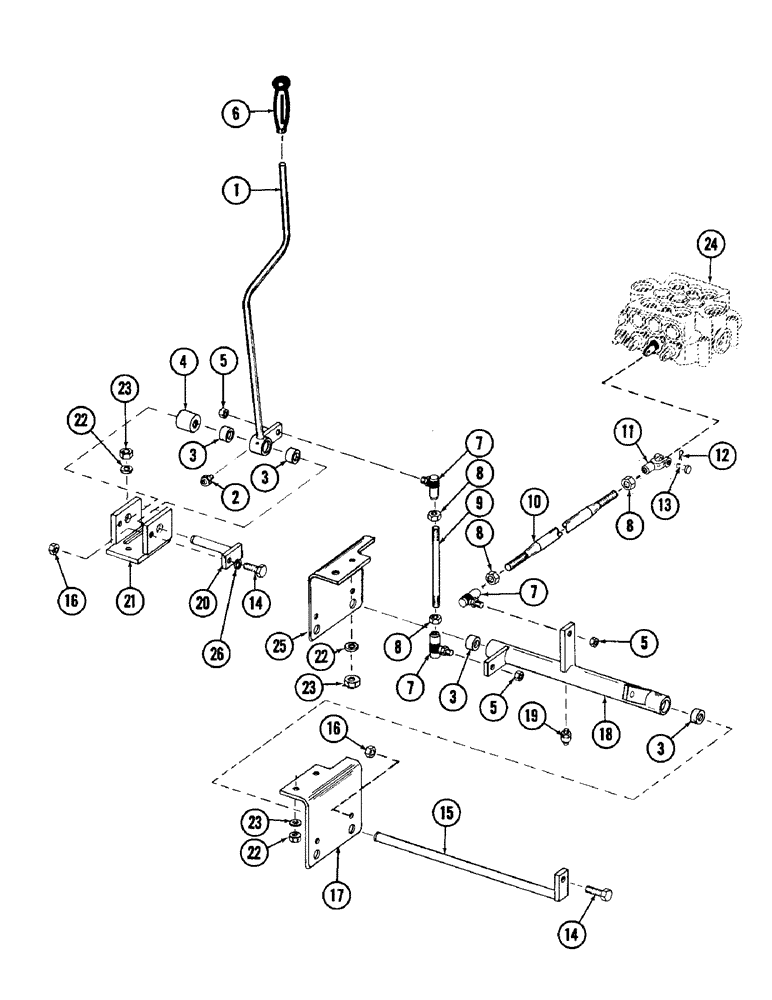

Запчасти Case 880 (236) - CROWD CONTROL AND LINKAGE (05) - UPPERSTRUCTURE CHASSIS

1

S506214

HANDLE, crown control, Includes: Ref. 2

1шт.

2

219-43

LUBE NIPPLE,65 Degree Elbow, 1/4" - 28 NPTF

FITTING, lube - 1/4" NPT x (Straight)

1шт.

3

A30586

NEEDLE BEARING

BEARING, needle

4шт.

4

S87490

SPACER

1шт.

5

131-5

LOCK NUT,3/8"-16, GB

NUT, self locking - 3/8"

3шт.

6

S63411

HANDLE

GRIP, crowd control handle

1шт.

7

S215594

BALL

JOINT, ball

3шт.

8

86585245

SPECIAL NUT,JAM, 5/8" - 18

jam - 3/8" - 24 NF

4шт.

9

S91683

ROD

connecting

1шт.

10

S219275

ROD

connecting

1шт.

11

213-4

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

YOKE

1шт.

12

132-67

COTTER PIN,5/32" x 3/4"

Pin, Split (Cotter), 5/32" x 3/4"

1шт.

13

S10767

PIN

clevis - 3/8" dia. x .891" grip length

1шт.

14

113-17

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

2шт.

15

S218961

SHAFT ASSY.

SHAFT

1шт.

16

131-2

NUT,1/4"-20, GB

NUT, self locking - 1/4" - 20 NC

2шт.

17

S218940

BRACKET

1шт.

18

S220214

BELLCRANK, Includes: Ref. 19

1шт.

19

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight 1/4"-28 NPT x .54" lg

1шт.

20

S217833

SHAFT ASSY.

SHAFT

1шт.

21

S220629

SUPPORT

ASSEMBLY

1шт.

22

95-8

WASHER,1/2"

plain 1/2"

2шт.

23

131-10

NUT,1/2"-13, GB

NUT, LOCK, 1/2"-13, GB

2шт.

24

REF

INSTRUCTION

VALVE, 3 spool main - (For breakdown, see figure 198)

1шт.

25

S220257

BRACKET

1шт.

26

195-41

WASHER,5/8"

1шт.
