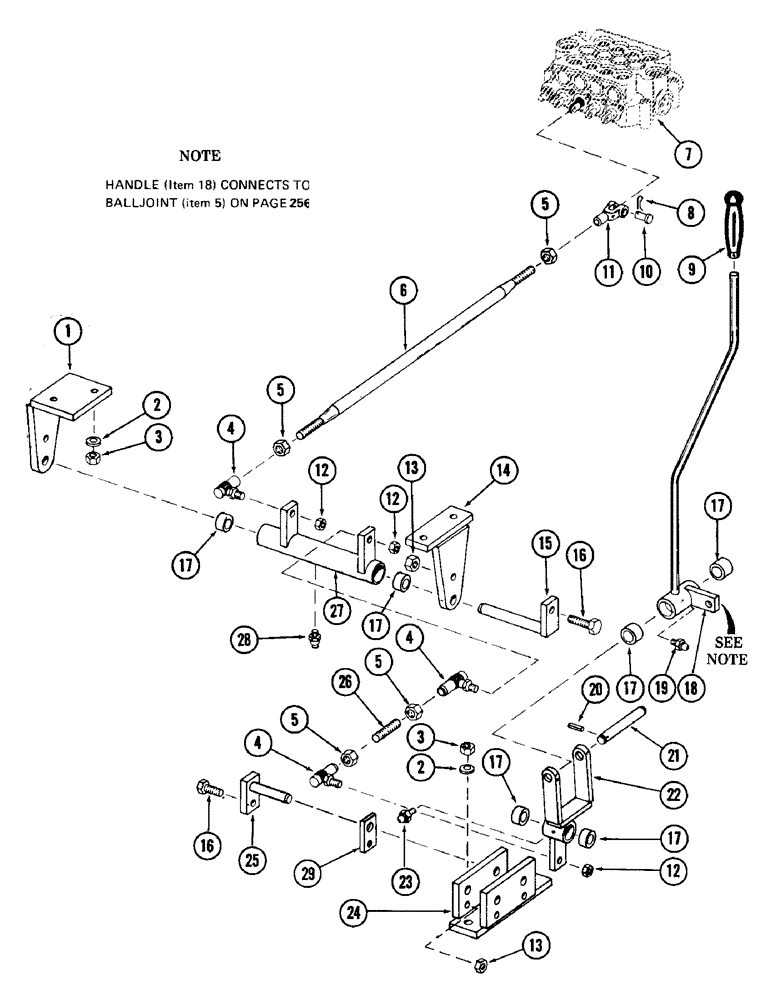

Запчасти Case 880 (232) - HOIST CONTROL AND LINKAGE (05) - UPPERSTRUCTURE CHASSIS

1

S219366

BRACKET

1шт.

2

95-8

WASHER,1/2"

flat 1/2"

4шт.

3

131-10

NUT,1/2"-13, GB

NUT, LOCK, 1/2"-13, GB

4шт.

4

S215594

BALL

JOINT, ball

3шт.

5

86585245

SPECIAL NUT,JAM, 5/8" - 18

jam - 3/8" - 24 NF

4шт.

6

S218942

ROD

connecting

1шт.

7

REF

INSTRUCTION

VALVE, 4 spool main - (For breakdown, see figure 200)

1шт.

8

132-67

COTTER PIN,5/32" x 3/4"

PIN, cotter - 5/32" dia. x 1"

1шт.

9

S63411

HANDLE

GRIP, handle

1шт.

10

S10767

PIN

clevis - 3/8" dia. x .891" grip length

1шт.

11

213-4

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

YOKE

1шт.

12

131-5

LOCK NUT,3/8"-16, GB

NUT, self locking - 3/8" - 24 NF

3шт.

13

131-2

NUT,1/4"-20, GB

NUT, self locking - 1/4" - 20 NC

1шт.

14

S220261

BRACKET

1шт.

15

S217838

SHAFT

1шт.

16

113-17

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

2шт.

17

A30586

NEEDLE BEARING

BEARING, needle

6шт.

18

S506215

HANDLE

hoist control, Includes: Ref. 19

1шт.

19

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight 1/4"-28 NPT x .54" lg

1шт.

20

138-61

LOCK PIN,1/8" x 1", Slotted

PIN, 1/8" x 1", Slotted

1шт.

21

S87535

SHAFT

1шт.

22

S220209

ARM ASSY.

BELLCRANK, Includes: Ref. 23

1шт.

23

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight 1/4"-28 NPT x .54" lg

1шт.

24

S219036

SUPPORT

1шт.

25

S218962

SHAFT ASSY.

SHAFT

1шт.

26

S87534

ROD

connecting

1шт.

27

S220219

BELLCRANK, Includes: Ref. 28

1шт.

28

219-43

LUBE NIPPLE,65 Degree Elbow, 1/4" - 28 NPTF

FITTING, lube - 1/8" NPT x (65 degrees)

1шт.

29

S93485

SPACER

1шт.
