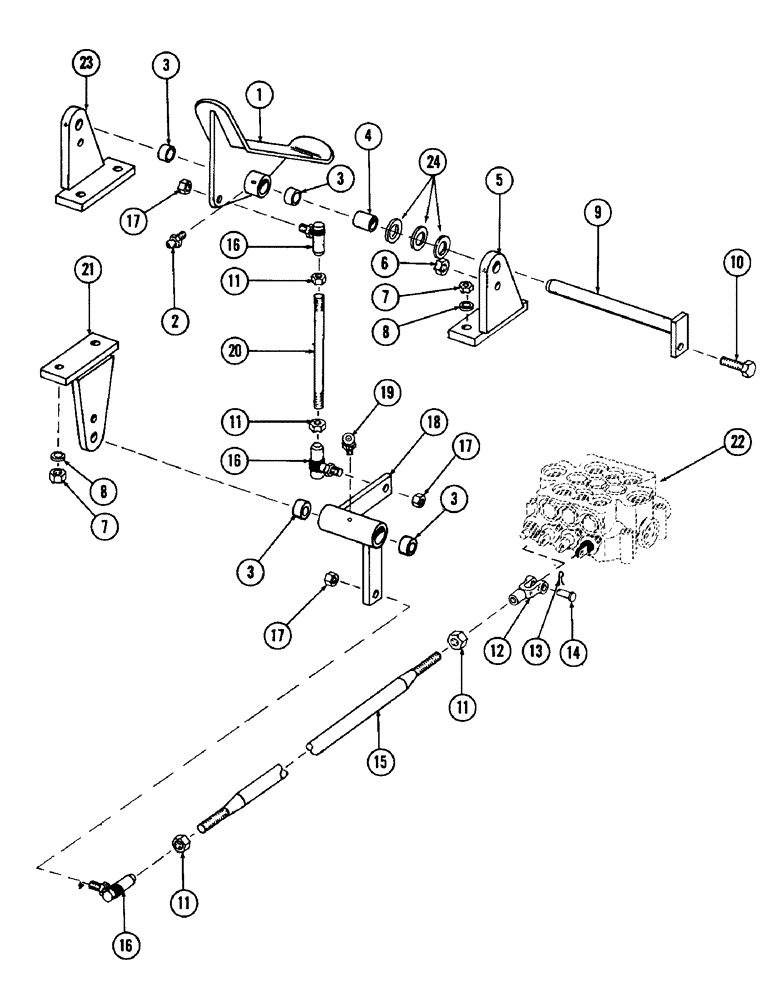

Запчасти Case 880 (220) - RIGHT TRACK CONTROL AND LINKAGE (05) - UPPERSTRUCTURE CHASSIS

1

S504577

PEDAL, right track control, Includes: Ref. 2

1шт.

2

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

1шт.

3

A30586

NEEDLE BEARING

BEARING, needle

4шт.

4

S110843

TUBE

SPACER - (Replaces S91212)

1шт.

5

S218947

BRACKET

1шт.

6

131-2

NUT,1/4"-20, GB

NUT, self locking - 1/4" - 20 NC

1шт.

7

131-10

NUT,1/2"-13, GB

NUT, self locking - 1/2" - 20 NC

4шт.

8

95-8

WASHER,1/2"

plain 1/2"

4шт.

9

S218965

SHAFT ASSY.

SHAFT

1шт.

10

113-17

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

1шт.

11

129-16

NUT,#8-32

jam - 3/8" - 24 NF

4шт.

12

213-4

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

YOKE

1шт.

13

132-67

COTTER PIN,5/32" x 3/4"

Pin, Split (Cotter), 5/32" x 3/4"

1шт.

14

S10767

PIN

clevis - 3/8" dia. x .891" grip length

1шт.

15

S220464

ROD, connecting

1шт.

16

S215594

BALL

JOINT, ball

3шт.

17

131-5

LOCK NUT,3/8"-16, GB

NUT, self locking

3шт.

18

S220212

BELLCRANK, Includes: Ref. 19

1шт.

19

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight 1/4"-28 NPT x .54" lg

1шт.

20

S91681

ROD

connecting

1шт.

21

S218939

BRACKET

1шт.

22

REF

INSTRUCTION

VALVE, 3 spool main - (For breakdown, see figure 198)

1шт.

23

S218938

BRACKET

1шт.

24

195-41

WASHER,5/8"

3шт.
