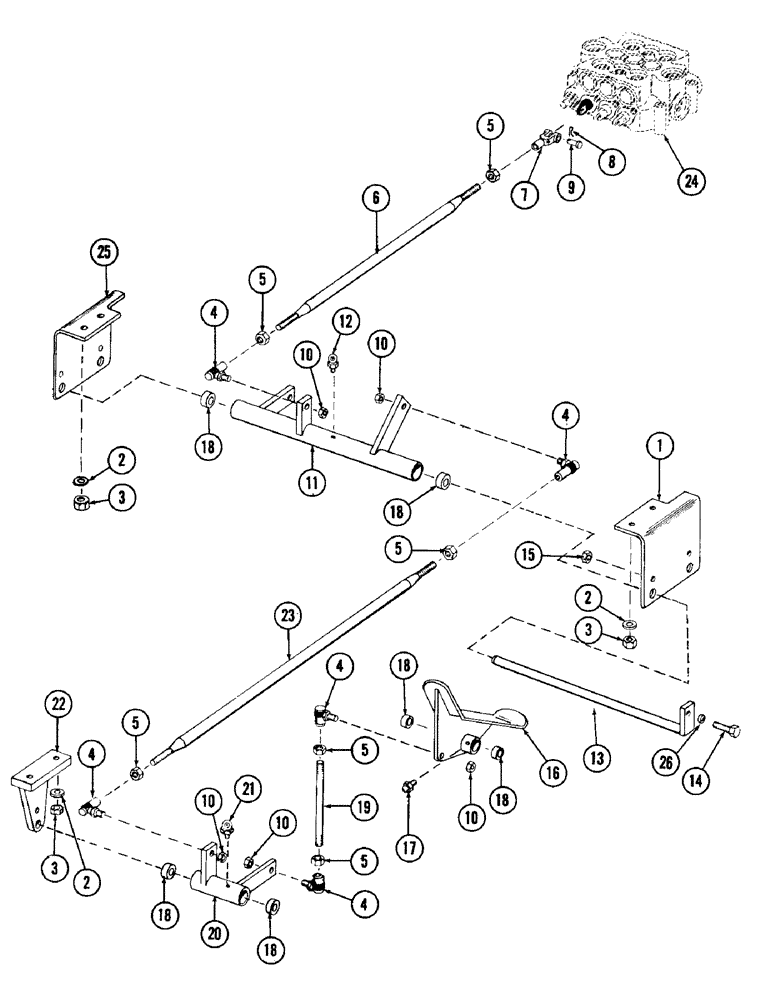

Запчасти Case 880 (174) - SWING CONTROL AND LINKAGE (05) - UPPERSTRUCTURE CHASSIS

1

S218940

BRACKET

1шт.

2

95-8

WASHER,1/2"

plain 1/2"

6шт.

3

131-10

NUT,1/2"-13, GB

NUT, LOCK, 1/2"-13, GB

6шт.

4

S215594

BALL

JOINT, ball

5шт.

5

25-156

JAM NUT,Jam, 3/8"-24, G5

jam - 3/8" - 24 NF

6шт.

6

S218942

ROD

connecting

1шт.

7

213-4

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

YOKE

1шт.

8

132-67

COTTER PIN,5/32" x 3/4"

Pin, Split (Cotter), 5/32" x 3/4"

1шт.

9

S10768

PIN

clevis - 3/8" dia. x 1.016"

1шт.

10

131-5

LOCK NUT,3/8"-16, GB

NUT, self locking 3/8" - 24 NF

5шт.

11

S220213

BELLCRANK, Includes: Ref. 12

1шт.

12

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight 1/4"-28 NPT x .54" lg

1шт.

13

S218961

SHAFT ASSY.

SHAFT

1шт.

14

13-420

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

1шт.

15

131-2

NUT,1/4"-20, GB

NUT, self locking - 1/4" - 20 NC

1шт.

16

S504577

PEDAL, swing control, Includes: Ref. 17

1шт.

17

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight 1/4"-28 NPT x .54" lg

1шт.

18

A30586

NEEDLE BEARING

BEARING, needle

6шт.

19

S91681

ROD

connecting

1шт.

20

S220215

BELLCRANK, Includes: Ref. 21

1шт.

21

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight 1/4"-28 NPT x .54" lg

1шт.

22

S218939

BRACKET

1шт.

23

S220465

ROD

connecting

1шт.

24

REF

INSTRUCTION

VALVE, 3 spool main - (For breakdown, see figure 198)

1шт.

25

S221103

BRACKET

1шт.

26

195-41

WASHER,5/8"

1шт.
