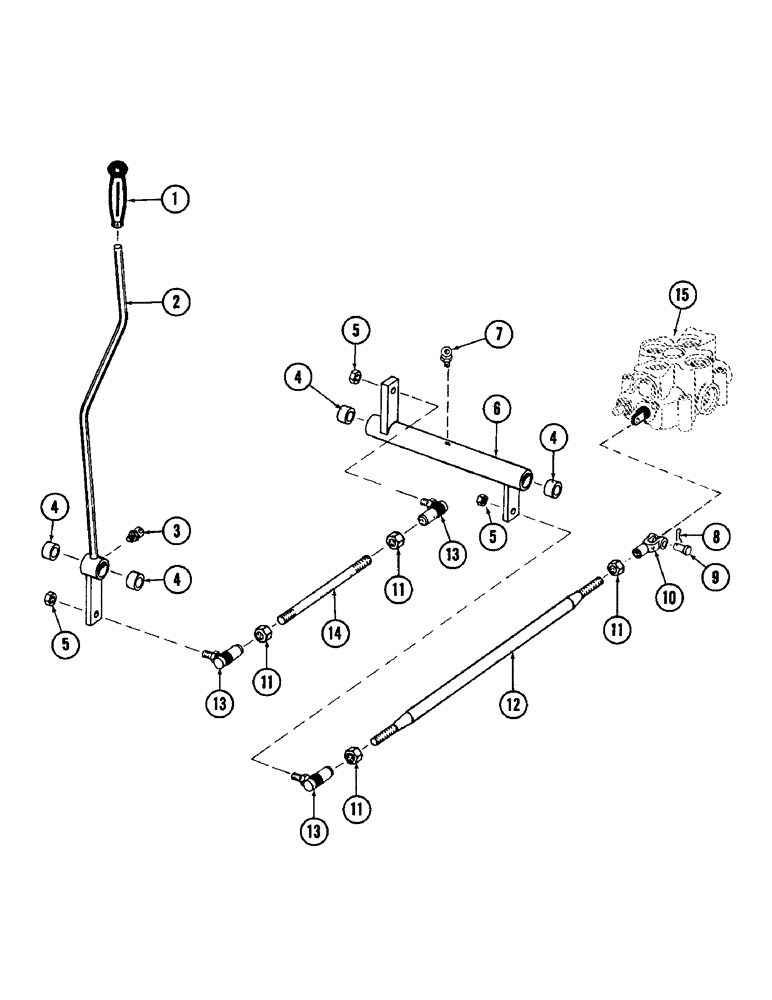

Запчасти Case 880 (164) - LEVELER CONTROL AND LINKAGE (05) - UPPERSTRUCTURE CHASSIS

1

S63411

HANDLE

GRIP - handle

1шт.

2

S506213

HANDLE, lever control, Includes: Ref. 3

1шт.

3

219-43

LUBE NIPPLE,65 Degree Elbow, 1/4" - 28 NPTF

FITTING, lub - 1/4" NPT x 65 degrees

1шт.

4

A30586

NEEDLE BEARING

BEARING, needle

4шт.

5

131-5

LOCK NUT,3/8"-16, GB

NUT, self locking - 3/8" - 24 NF

3шт.

6

S220216

BELLCRANK, Includes: Ref. 7

1шт.

7

219-8

LUBE NIPPLE,1/4" - 28 NPTF

FITTING, lube - 1/4" NPT (Straight)

1шт.

8

132-67

COTTER PIN,5/32" x 3/4"

Pin, Split (Cotter), 5/32" x 3/4"

1шт.

9

S10767

PIN

clevis - 3/8" dia. x .891" grip length

1шт.

10

213-4

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

YOKE

1шт.

11

86585245

SPECIAL NUT,JAM, 5/8" - 18

jam - 3/8" - 24 NF

4шт.

12

S219272

ROD, CONNECTING

1шт.

13

S215594

BALL

JOINT, ball

3шт.

14

S91680

ROD, connecting

1шт.

15

REF

INSTRUCTION

VALVE, 1 spool main - (For breakdown, see figure 172)

1шт.
