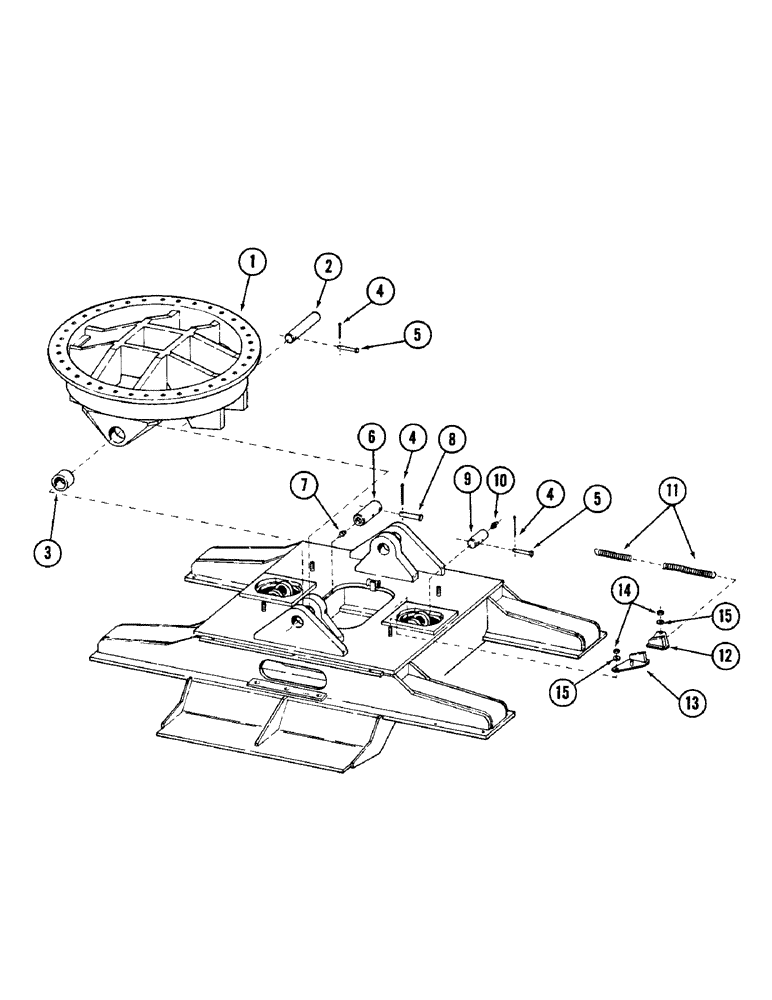

Запчасти Case 880 (124) - LEVELER CARBODY AND RELATED PARTS (05) - UPPERSTRUCTURE CHASSIS

1

S56800

LEVEL

ER, upper, Includes: Ref. 2 and 3

1шт.

2

S78554

PIN

-, Serial Range: cylinder-top

2шт.

3

S202163

BUSHING

2шт.

4

132-69

COTTER PIN,5/32" x 1"

COTTER, pin - 1/8" dia. x 1"

6шт.

5

S61973

AXLE PIN

PIN, clevis - 1/2" x 3.766' grip length

4шт.

6

S72631

PIN

- leveler top to bottom, Includes: Ref. 7

2шт.

7

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING, lub - 1/8" NPT (Straight)

2шт.

8

S61977

PIN

clevis - 5/8" dia. x 6.266"

2шт.

9

S78317

PIN

- cylinder to bottom, Includes: Ref. 10

2шт.

10

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING, lub - 1/8" NPT (Straight)

2шт.

11

S64335

SPRING, stop

2шт.

12

S209083

STOP, leveler

2шт.

13

S209082

STOP, leveler

2шт.

14

131-10

NUT,1/2"-13, GB

NUT, LOCK, 1/2"-13, GB

4шт.

15

95-8

WASHER,1/2"

flat 1/2"

4шт.
