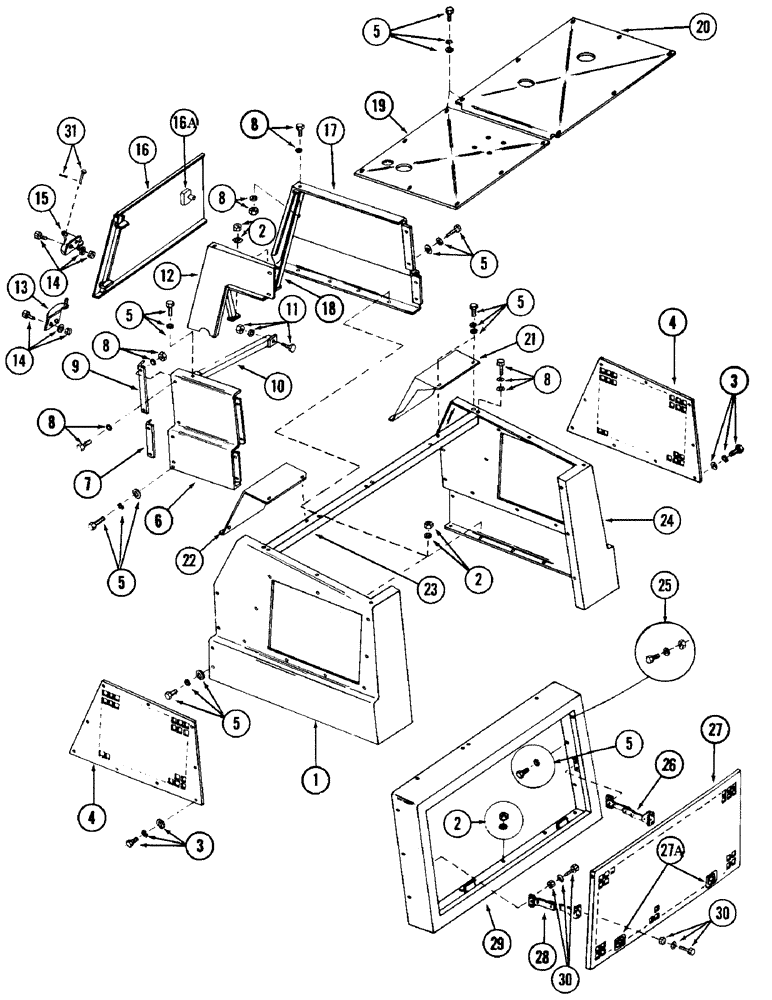

Запчасти Case 880 (118) - SHROUD GRILLES AND RELATED PARTS (05) - UPPERSTRUCTURE CHASSIS

1

S602355

SHROUD, engine - left

1шт.

2

131-10

NUT,1/2"-13, GB

NUT, LOCK, 1/2"-13, GB

18шт.

196-15

WASHER,17/32" x 1 1/6" x .134"

hardened - 1/2"

24шт.

3

13-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

24шт.

92-8

LOCK WASHER,1/2"

23шт.

196-15

WASHER,17/32" x 1 1/6" x .134"

hardened - 1/2"

23шт.

4

S505711

GRILLE

2шт.

5

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

37шт.

92-8

LOCK WASHER,1/2"

37шт.

196-15

WASHER,17/32" x 1 1/6" x .134"

hardened - 1/2"

23шт.

6

S505710

PANEL, side - left front

1шт.

7

S219440

ANGLE

1шт.

8

13-822

BOLT,Hex, 1/2" - 13 x 1-3/8", Gr 5, Full Thd

8шт.

196-15

WASHER,17/32" x 1 1/6" x .134"

hardened - 1/2"

14шт.

131-10

NUT,1/2"-13, GB

NUT, LOCK, 1/2"-13, GB

8шт.

9

S219439

ANGLE

1шт.

10

S220298

BRACE

1шт.

11

13-622

BOLT,Hex, 3/8" - 16 x 1-3/8", Gr 5

CPSW - 3/8" - 16 NC x 1-3/8"

1шт.

195-25

WASHER,3/8"

flat - 3/8"

2шт.

131-6

LOCK NUT,3/8"-16, GC

NUT, self locking - 3/8" - 16 NC

1шт.

12

S505715

PANEL, door mounting

1шт.

13

S221455

BRACKET

door mounting

1шт.

14

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

4шт.

95-5

WASHER,3/8" x 7/8" x .083"

flat - 3/8"

4шт.

131-6

LOCK NUT,3/8"-16, GC

NUT, self locking - 3/8" - 16 NC

4шт.

15

S221453

BRACKET

door mounting

1шт.

16

S505716

DOOR, Includes: Ref. 16A

1шт.

16a

S219346

LATCH

1шт.

17

S602359

SHROUD, engine - right front

1шт.

18

S219441

BRACE

1шт.

19

S505713

COVER, top - left

1шт.

20

S505714

COVER, top - right

1шт.

21

S506104

SHROUD - right side

1шт.

22

S506105

SHROUD - left side

1шт.

23

S505712

CHANNEL

1шт.

24

S602358

SHROUD, engine - right

1шт.

25

13-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

CPSW - 3/8" - 16 NC x 2"

2шт.

95-5

WASHER,3/8" x 7/8" x .083"

flat - 3/8"

2шт.

25-146

JAM NUT,Jam, 3/8"-16, G5

jam - 3/8" - 16 NC

2шт.

26

S219473

BRACE

1шт.

27

S602357

DOOR, Includes: Ref. 27A

1шт.

27a

S219346

LATCH

2шт.

28

S219460

BRACE

1шт.

29

S602356

FRAME, door

1шт.

30

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

CPSW - 1/4" - 20 NC x 1"

7шт.

95-3

WASHER,#12

flat - 1/4"

7шт.

131-2

NUT,1/4"-20, GB

NUT, self locking - 1/4" - 20 NC

7шт.

31

S217887

PIN

1шт.

A70250

PIN

hair

1шт.
