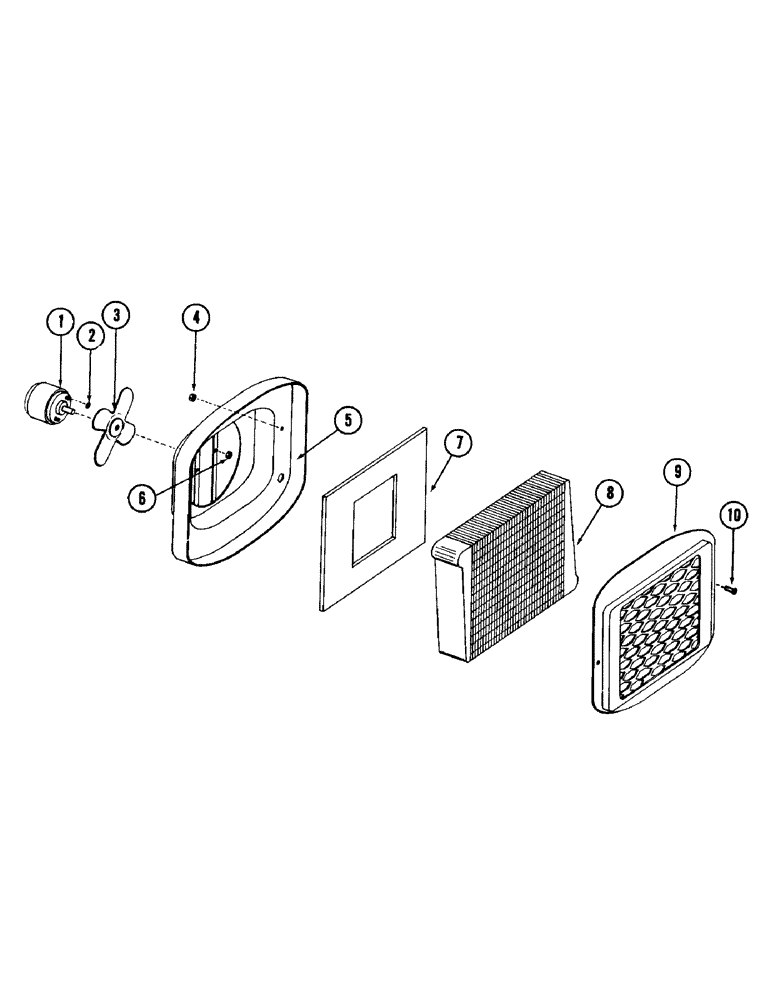

Запчасти Case 880 (116) - HEATER (05) - UPPERSTRUCTURE CHASSIS

S39842

HEATER ASSEMBLY -(12 volt), Includes: Ref. 1 - 11, Serial Range: 6200000-6200236

1шт.

S507825

HEATER

ASSEMBLY - (24 volt), Includes: Ref. 1 - 11, Start Serial: 6200237

1шт.

1

A44571

MOTOR, ELECTRIC

MOTOR - 12 V electric, Serial Range: 6200000-6200236

1шт.

D54871

MOTOR

- 24 V electric, Start Serial: 6200237

1шт.

2

L35760

WASHER

1шт.

3

S87351

FAN

1шт.

4

129-18

NUT,#12-24

2шт.

5

S97846

CASING

ASSEMBLY

1шт.

6

193-1002

NUT,Keps, #8 - 32, w/ Ext Tooth LW

(Replaces S107728)

2шт.

7

S87354

PAD

2шт.

8

S107728

HEAT-EXCHANGER

CORE

1шт.

9

S97848

BAFFLE

1шт.

10

S87352

SCREW

2шт.

11

S97852

SWITCH

ASSEMBLY

1шт.
