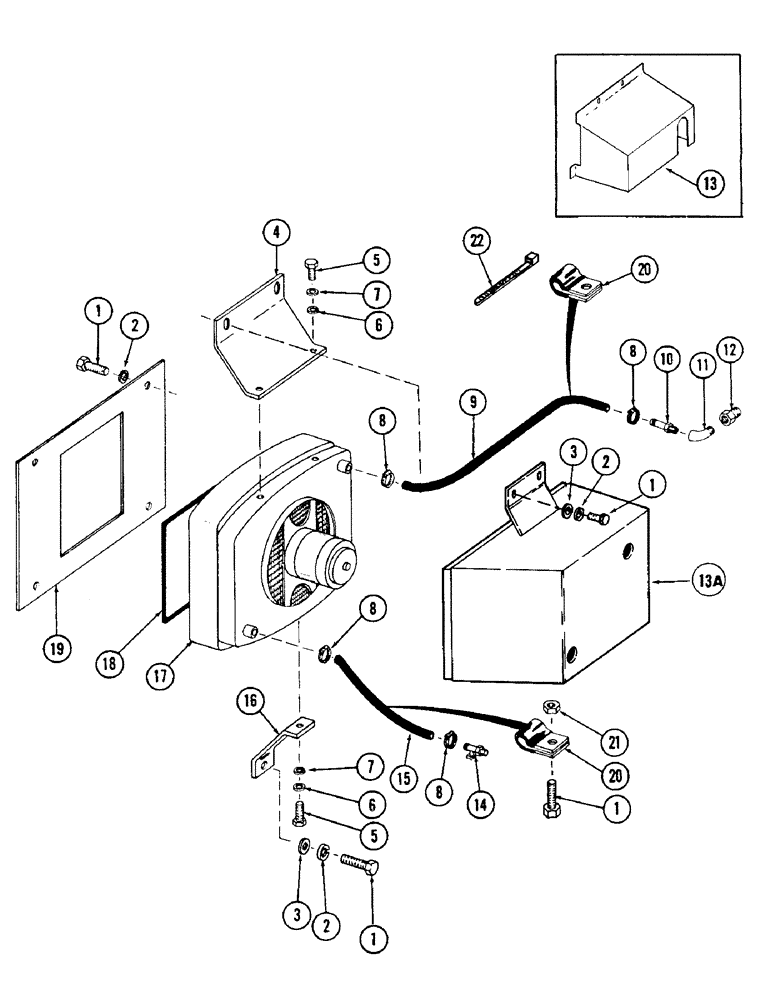

Запчасти Case 880 (114) - HEATER AND RELATED PARTS (05) - UPPERSTRUCTURE CHASSIS

1

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

8шт.

2

92-6

LOCK WASHER,3/8"

7шт.

3

95-5

WASHER,3/8" x 7/8" x .083"

flat - 3/8"

3шт.

4

S219433

BRACKET, top mounting

1шт.

5

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

3шт.

6

195-16

WASHER,#12

flat - 1/4"

3шт.

7

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

3шт.

8

214-253

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

CLAMP, hose

4шт.

9

S49608

HOSE

low pressure - (bulk) - 5/8" ID x 70" long

1шт.

10

217-153

FITTING,5/8" Hose Barb x 1/2" Male NPTF

INSERT, straight hose - 1/2" - 14 NPT x 5/8" ID hose

1шт.

11

217-1019

ELBOW,1/2" - 14 Female x 1/2" - 14 Male

90 degree pipe - 1/2" - 14 NPT female x 1/2" - 14 NPT female

1шт.

12

221-1093

REDUCER,Hex, 3/4" x 1/2" NPT

BUSHING, reducing - 1/2" - 14 NPT female x 3/4" - 14 NPT male

1шт.

13

S505728

SHIELD -(See insert), Serial Range: 6200000-6200911

1шт.

13a

S606733

SHIELD

-, Start Serial: 6200912

1шт.

14

S83788

VALVE

water hose

1шт.

15

S49608

HOSE

low pressure - (Bulk) - 5/8" ID x 90" long

1шт.

16

S91959

BRACKET, bottom mounting

1шт.

17

REF

INSTRUCTION

HEATER, hot water - (For breakdown, see figure 116)

1шт.

18

S76711

SEAL

MOLDING, rubber - (Bulk) - 36" long

1шт.

19

S219434

SHEET, cover

1шт.

20

R14668

CLAMP

hose

2шт.

21

131-6

LOCK NUT,3/8"-16, GC

NUT, self locking - 3/8" - 16 NC

1шт.

22

S73387

CLIP

TIE, cable

1шт.
